Downloader Programming; Toolbox Downloader Programming; Testing The System; Basic System Commands - GE Interlogix Concord Security System Installation Instructions Manual

Note
A Downloader Phone Num-
ber must be programmed
and the user-programmable
option "Downloading" must
be on for remote downloader
programming to work.
Testing the
System
Note
Before testing, it is recom-
mended that you have cov-
ers on all modules (mounted
outside the cabinet) and the
panel cabinet door closed.
The testing environment
should match the system
working environment.
Concord

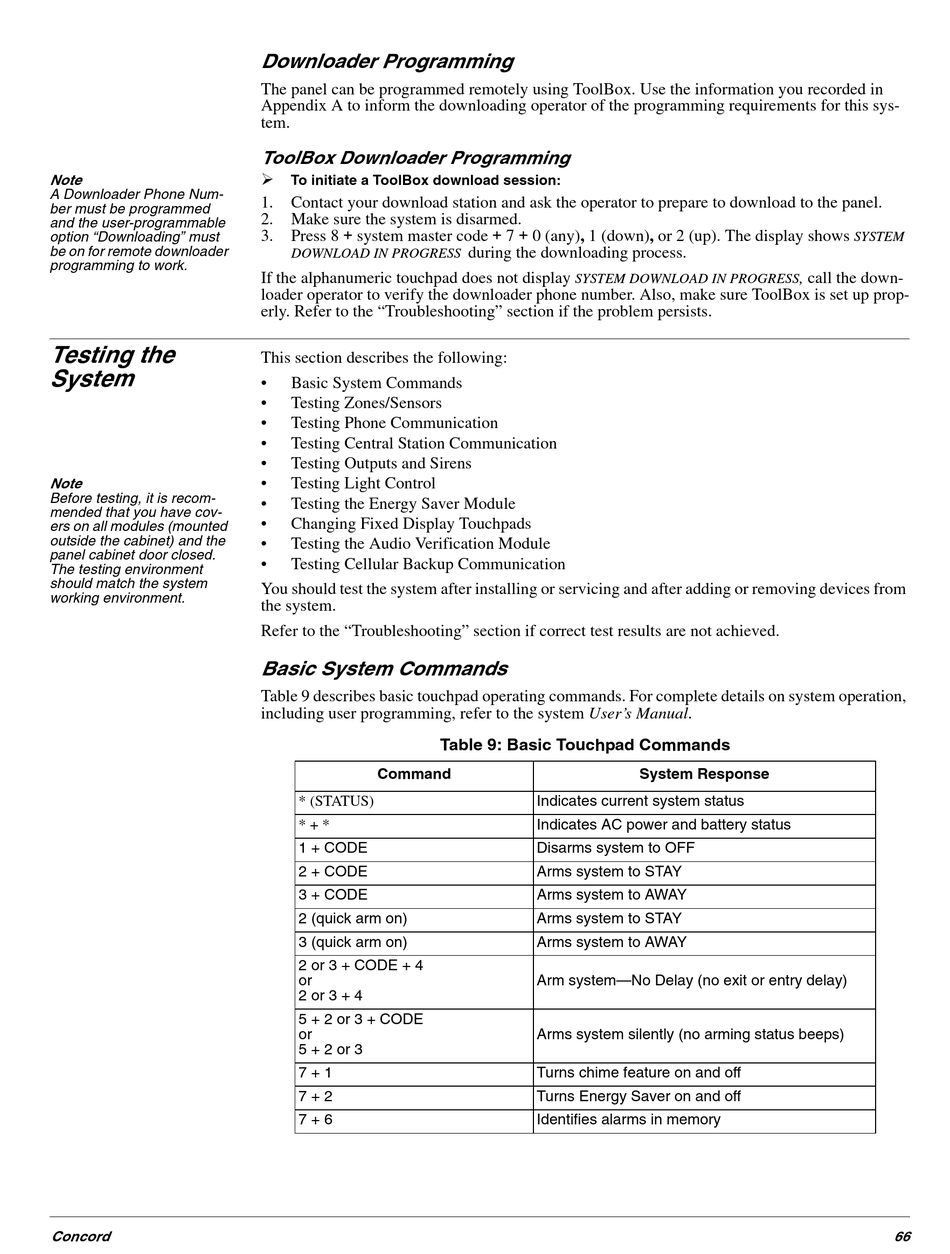

Downloader Programming

The panel can be programmed remotely using ToolBox. Use the information you recorded in
Appendix A to inform the downloading operator of the programming requirements for this sys-
tem.

ToolBox Downloader Programming

¾
To initiate a ToolBox download session:
1. Contact your download station and ask the operator to prepare to download to the panel.
2. Make sure the system is disarmed.
3. Press 8 + system master code + 7 + 0 (any), 1 (down), or 2 (up). The display shows
DOWNLOAD IN PROGRESS
If the alphanumeric touchpad does not display
loader operator to verify the downloader phone number. Also, make sure ToolBox is set up prop-
erly. Refer to the "Troubleshooting" section if the problem persists.
This section describes the following:
•

Basic System Commands

• Testing Zones/Sensors
• Testing Phone Communication
• Testing Central Station Communication
• Testing Outputs and Sirens
• Testing Light Control
• Testing the Energy Saver Module
• Changing Fixed Display Touchpads
• Testing the Audio Verification Module
• Testing Cellular Backup Communication
You should test the system after installing or servicing and after adding or removing devices from
the system.
Refer to the "Troubleshooting" section if correct test results are not achieved.
Basic System Commands
Table 9 describes basic touchpad operating commands. For complete details on system operation,
including user programming, refer to the system User's Manual.
Command
* (STATUS)
* + *
1 + CODE
2 + CODE
3 + CODE
2 (quick arm on)
3 (quick arm on)
2 or 3 + CODE + 4
or
2 or 3 + 4
5 + 2 or 3 + CODE
or
5 + 2 or 3
7 + 1
7 + 2
7 + 6
during the downloading process.
SYSTEM DOWNLOAD IN PROGRESS
Table 9: Basic Touchpad Commands
Indicates current system status
Indicates AC power and battery status
Disarms system to OFF
Arms system to STAY
Arms system to AWAY
Arms system to STAY
Arms system to AWAY
Arm system—No Delay (no exit or entry delay)
Arms system silently (no arming status beeps)
Turns chime feature on and off
Turns Energy Saver on and off
Identifies alarms in memory
, call the down-
System Response
SYSTEM
66
