Connecting Piezo Sirens; Exterior Sirens; Interior Sirens - GE Interlogix Concord Security System Installation Instructions Manual

Note
Piezo siren connections to
terminal 10 require a 2k
resistor that can be located
at the panel, since it does
not supervise the circuit. If
using an external power
supply instead of panel ter-
minal 4, the supply voltage
must be limited to 9.5 VDC
maximum and the negative
side of the power supply
must be connected to panel
ground (terminal 3).
15

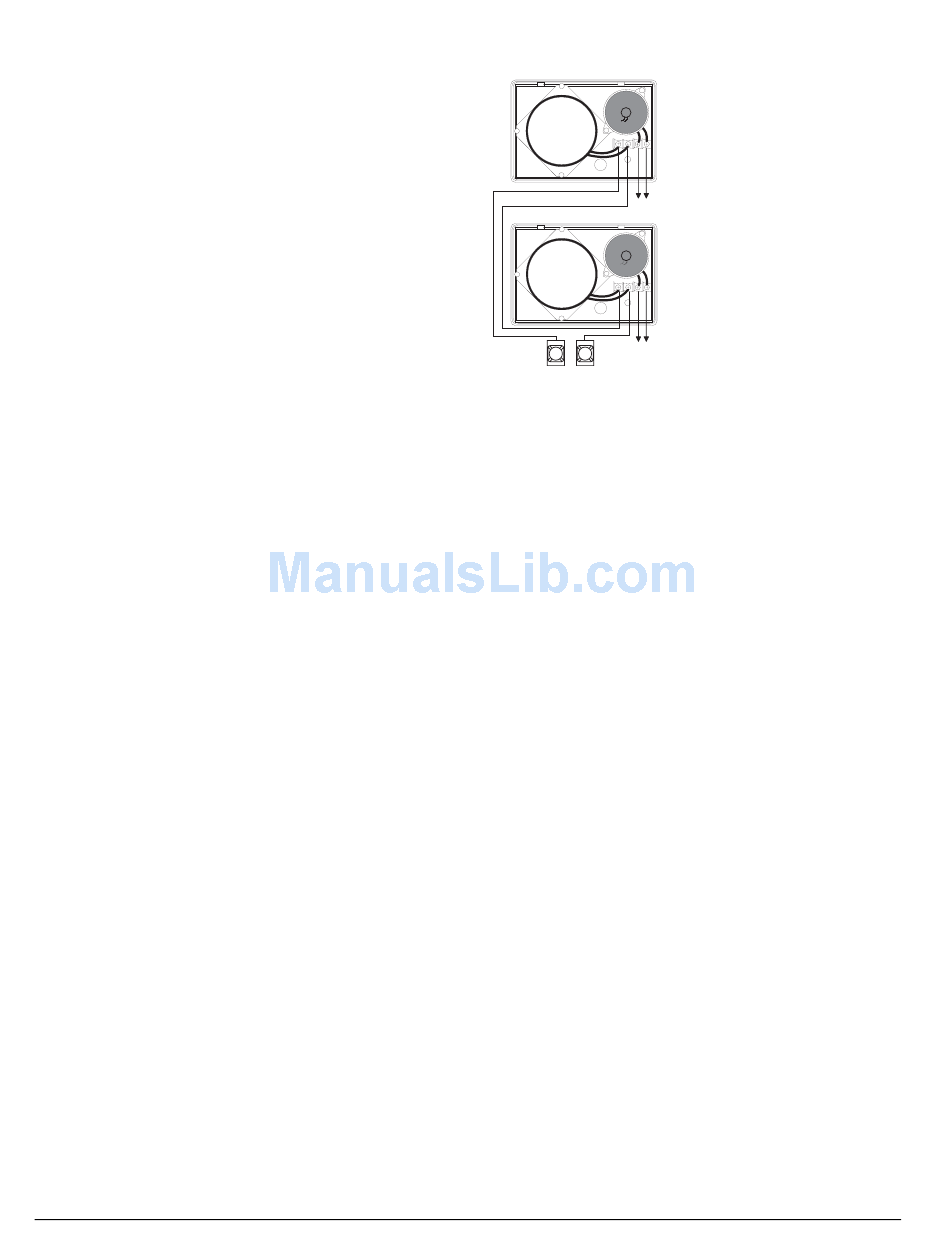

Figure 12. Connecting Two Hardwire Interior Speakers w/Dual Speaker Units to Panel Terminals

Connecting Piezo Sirens

Output 1
Onboard output 1 (OUT 1—terminal 9) is an open-collector (switched path-to-ground), program-
mable output that can handle a maximum of 200 mA current sink. The default setting (01614)
activates the output 15 seconds after a police or fire alarm condition occurs. This allows you to
connect a piezo siren without changing the output configuration number in programming. This
output is typically used for exterior siren application.
Output 2
Onboard output 2 (OUT 2—terminal 10) is an open-collector (switched path-to-ground), pro-
grammable output that can handle a maximum of 200 mA current sink. The default setting
(01710) activates the output for status and alarm tones, allowing for a piezo siren connection
without changing the output configuration number. It is typically used for interior siren applica-
tion.
For more information on output configuration numbers, see "Onboard Options Menu".

Exterior Sirens

Hardwire Exterior Siren (13-046)
Note
This siren is not UL approved for use as an outdoor sounding device.
Connect the siren to panel as shown in Figure 13.

Interior Sirens

Interior Piezo Siren (30-006)
Connect the piezo siren to the panel terminals with a 2k-ohm resistor, as shown in Figure 13.
Not Used
Panel
Not Used
7 8
Terminals
Speaker
Concord
