*(,QWHUORJL[FRP
Part No:
60-875
Simon
System

User Guide

Doors &
Motion
System
Windows
Sensors
Status
Arm
Disarm
1 / 2
3 / 4
5 / 6
7 / 8
9 / 0
Chime
Doors
Motion
Time
Sensor
On
Off
Bypass
Lights
FIRE
POLICE
AUX
Test Weekly
®
Security
466-1871 Rev G
January 2003
*( ,QWHUORJL[
H O M E S E C U R I T Y
C O D E
H O M E C O N T R O L
E M E R G E N C Y

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simon 60-875 and is the answer not in the manual?

Questions and answers

Related Manuals for GE Interlogix Simon 60-875

Summary of Contents for GE Interlogix Simon 60-875

  • Page 1: User Guide

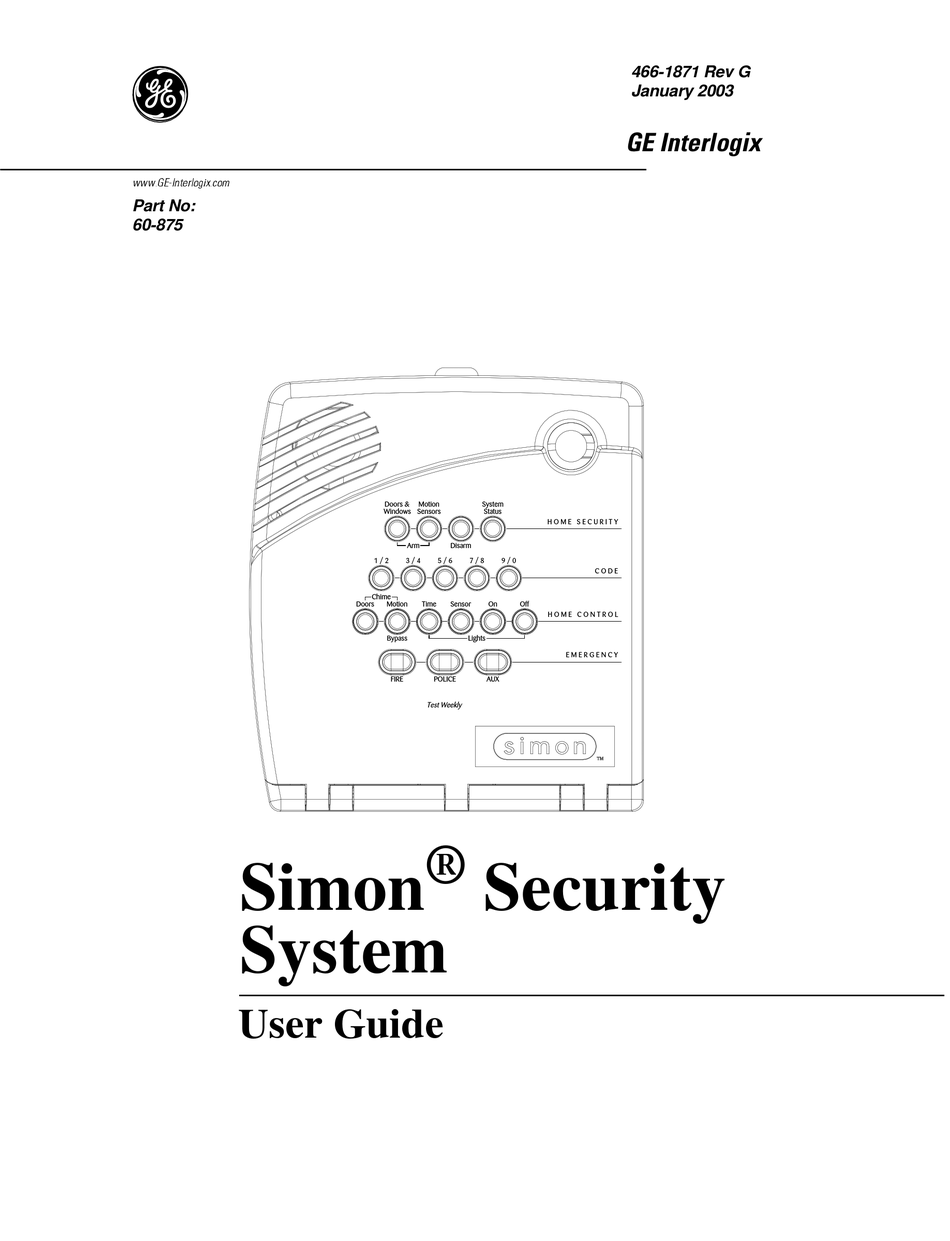

    *(,QWHUORJL[FRP Part No: 60-875 1 / 2 Chime Doors Simon System User Guide 466-1871 Rev G January 2003 *( ,QWHUORJL[ Doors & Motion System Windows Sensors Status H O M E S E C U R I T Y Disarm 3 / 4 5 / 6 7 / 8...

  • Page 2: Fcc Notices

    FCC Part 15 Information to the User Changes or modifications not expressly approved by Interlogix Inc. can void the user’s authority to operate the equipment. FCC Part 15 Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation.

  • Page 3: Canada Notice

    Canada Notice The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain tele- communications network protective, operational, and safety requirements. The department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.

  • Page 4: Table Of Contents

    Contents Introduction to Your Security System Security System Components ...1 How You Communicate to Your System Control Panel...2 Remote Handheld Touchpad ...2 Keychain Touchpad...2 Telephone ...2 How to Use Your Control Panel Home Security...3 Code ...5 Home Control...5 Emergency...7 How Your System Communicates to You Panel Voice Messages ...7 Status Beeps ...8 Alarm Sirens and Lamp Modules...8...
  • Page 5 Trouble Beeps AC Power Failure ...21 System Battery Failure ...22 Sensor Failure ...22 Sensor Low Battery ...22 Fail-To-Communicate ...22 Sensor Open ...22 Sensor Tampered...22 Option 50 Detected ...22 Siren 1 or 2 Failure ...22 System Access Alarm ...23 Testing Testing Sensors ...23 Testing Communication ...24 Setting the Clock ...24 Alarm System Limitations...

  • Page 6: Introduction To Your Security System

    Introduction to Your security system uses wireless technology to warn your family about intrusion, car- bon monoxide and fire. It may also be used to control lights and appliances within your Your Security home. The system has the capabilities of communicating with a central monitoring sta- System tion and sending messages to a numeric pager.

  • Page 7: How You Communicate To Your System

    Outdoor Motion Sensors detect motion in a protected outdoor area. When motion is detected, the system may respond by sounding chimes or turning on outside lights. These sensors are not used for intrusion detection. Door/Window Sensors detect the opening of a door or window. Smoke Sensors detect smoke and a significant rise in temperature.

  • Page 8: How To Use Your Control Panel

    How to Use Your Control The panel interface consists of four rows of buttons. Panel • HOME SECURITY Note It may be necessary to enter • CODE an access code to arm your system. Check with your • HOME CONTROL installer to see if this feature is enabled.

  • Page 9: Arm Motion Sensors

    Quick Exit The Quick Exit feature is used when someone wants to briefly leave while the home is Note The designated door may be still armed (i.e. get the newspaper). This feature needs to be enabled by your installer. opened and closed once. If When you press the Disarm button the panel will announce exit time on.

  • Page 10: Code

    Panel announces, Motions on, Latchkey on. Arm Motion Sensors light will blink and the exit delay will begin. ¾ Disarming Your System Upon reentering your home the entry delay will begin. Status beeps will sound. Enter your access code using the Code buttons. Panel announces, System disarmed and the Disarm light will be lit.
  • Page 11 The Home Control buttons are used to monitor activity within and around the home. They are not used for intrusion protection. If any of the Home Control buttons are pressed and a sensor or module is not associated (programmed) with this feature the panel will announce, Function not available.

  • Page 12: Emergency

    Sensor Activated Lights Turn on designated lights (with Lamp Modules) when a sensor is tripped. You can pro- gram lockout times when Sensor Activated Lights won’t be active (see Programming Options 36 and 37). ¾ Turn Sensor Activated Lights On: System must be disarmed.

  • Page 13: Status Beeps

    Status Beeps Status beeps are used to indicate key presses, status, and problems with the system. Note You may receive a different They can be enabled or disabled (see “Options”). The following table describes status number of status beeps if beep activity.

  • Page 14: Panel Indicator Lights

    Panel Indicator Lights Use the following table to understand the panel indicator lights. Arm Doors & Windows Arm Motion Sensors Disarm System Status Chime Doors Chime Special Motion Time Lights Sensor Lights Numeric Pager You may program your security system to send a numeric message indicating system activities to your pager.

  • Page 15: Guidelines For Preventing Accidental Alarms

    To cancel an accidental alarm before the programmed dialer delay time expires, enter your access code. Guidelines for Preventing Accidental Alarms The following guidelines will go a long way toward preventing accidental alarms. • • • • • • • •...

  • Page 16: How To Use Your Touchpads

    calling in a report to the central monitoring station or a pager, due to an action made by you or someone at the security system site. How to Use Your Touchpads are used to control the security system from any location within or near your home.

  • Page 17: Rf Thermostat Operation

    Note For any keypress on the Keychain Touchpad, hold the button until the indicator light blinks. UNLOCK Press to disarm your security system. Note Panic alarms need to be STAR Can be programmed to control a device connected to a universal module. silenced from the panel, a remote handheld touchpad or another keychain touch-...

  • Page 18: Enter The Master Access Code

    System must be disarmed. Open the Panel Cover by pressing the plastic latch on the top of the panel. When you open the cover you will immediately be prompted by the panel voice to use the numbered keys to enter your ID. Enter the Master Access Code.

  • Page 19: Light Control

    Your system may be set up so that the master code or an access code is required when Note Codes are always needed to arming. If so, the panel will prompt you to enter a code when you attempt to arm the disarm the system.

  • Page 20: Unit Number

    Unit Number Refers to a specific light within a house code. ¾ How to set time for light control: Open the cover of the panel. The panel voice prompts you to Use numbered keys to enter ID. Enter your mas- ter access code using the numbered keys.

  • Page 21: Option 01 - Panel Beeps

    Option 01 - Status Beeps Add this option to enable panel beeps. Status beeps are any beeps (including chime beeps) that come from the panel. See “Status Beeps”. Delete turns off panel piezo beeps. Option 02 - Panel Voice Panel Voice may be disabled, except for status messages, open sensor responses, and when in program mode.

  • Page 22: Option 36 And 37- Sensor Activated Light Lockout Start And Stop Times

    Delete turns off this option and Latchkey cannot be enabled when the panel is armed. Open panel cover. Panel announces, Use numbered keys to enter ID. Enter Access Code using the numbered keys. Panel announces, Please select from Start Menu. Press Delete from the Start menu.

  • Page 23: Option 41 - Voice Chime

    Delete disables sensor activated light lockout stop time. The panel will turn on a light activated by a sensor at all times if sensor activated lights are enabled. Option 41 - Voice Chime The panel will verbally announce which chime sensor has been tripped if the chime feature is on.

  • Page 24: Option 43 - Pager Phone Number

    Enter Access Code using the numbered keys. Panel announces, Please select from Start Menu. Press Delete from the Start menu. Panel announces, Select from main menu Press Option #. Panel announces, Option 1, press again for next option or done to select.

  • Page 25: Option 55: Status Sounds

    • • • Option 55: Status Sounds Add allows you to set the volume for status sounds, such as arming beeps, trouble beeps, and status beeps. The lowest volume setting is 1, the highest is 10. Delete sets the volume of status sounds to the default setting (7). Option 81: Heating Set Point When this option is on you can set a temperature that will automatically turn the fur- Note...

  • Page 26: Option 82: Cooling Set Point

    Press Option #. Panel announces, Option 1, press again for next option or done to select. Press 81. Panel announces, Option 81, press again for next option or done to delete. Press DONE. Panel announces, Option 81 deleted. Option 82: Cooling Set Point When this option is on you can set a temperature that will automatically turn the air con- ditioner on if the temperature rises above the set temperature.

  • Page 27: System Battery Failure

    System Battery Failure This condition occurs if the emergency backup battery has failed. Status beeps will start and the SYSTEM STATUS button will light. Press the SYSTEM STATUS but- ton to hear the trouble message. If your AC power is not working, your security sys- tem will shut down once the battery has failed.

  • Page 28: System Access Alarm

    System Access Alarm The panel cover was opened while the system was armed. The system will call the cen- tral monitoring station to report a tamper alarm. Clearing System Status Press the SYSTEM STATUS button, listen to the status message, then disarm the system to clear system status.

  • Page 29: Testing Communication

    Shock Sensor Smoke Sensor Wireless Panic Button Keychain Touchpad Remote Handheld Touch- 2-Way RF Touchpad RF Electronic Thermostat Testing Communication Communication between your system, the central monitoring station and your pager should be tested at least once per week to make sure you have the proper telephone connection.

  • Page 30: Service

    • If sirens are not placed within hearing range of persons sleeping, in remote parts of the premises, or if they are placed behind doors or other obstacles. • If intruders gain access through unprotected points of entry or areas where sensors have been bypassed.

  • Page 31: Your Floor Plan

    • • • • • • • • Your Floor Plan Use the following guidelines when drawing your floor plan (use the next page to draw your floor plan): • • • • Simon Security System Escape fast! (Do not stop to pack.) Use a different escape route if closed doors feel hot to the touch.
  • Page 32 Simon Security System...
  • Page 33 Simon Security System...
  • Page 34 Simon Security System...

  • Page 35: Delay Times

    Sensor Number Sensor Type Unit # Location Access Codes Master Access Code:______________________ Access Code 1:__________________________ Access Code 2:__________________________ Access Code 3:__________________________ Access Code 4:__________________________ Access Code 5:__________________________ Simon Security System Sensor Locations Location X10 Module Locations Unit # Delay Times Entry Delay:________________________ Exit Delay:__________________________ Location...

  • Page 36: Quick Reference Table

    How to … Control Panel How to … Control Panel Disarm the Disarm the Access Code System (Level 1) System Disarm Subdisarm the Enter Master Code while Subdisarm the System (Level 0) system is disarmed System Doors & Arm Only - Doors Windows &...
