Note
Install all sirens/speakers
indoors, in a concealed loca-
tion.
Concord

Connecting Speakers

The panel provides one siren driver output for intrusion (steady), fire (temporal 3), and auxiliary
(on-off-on-off) alarm sounds. This output trips only for partition 1 alarms.
The output can drive a single 8-ohm speaker or multiple speaker circuit of 8-ohms or higher (as
shown in the following speaker wiring diagrams). Compatible speakers are described under
"Connecting Piezo Sirens".
!
To avoid disabling the panel speaker output, do not make speaker connections with the
panel powered up.
Caution

15-Watt Speaker (13-060)

For exterior siren applications. Connect the speaker to the panel as shown in Figure 11.

Hardwire Interior Speaker (60-528)

For interior siren applications. Connect the speaker to the panel as shown in Figure 11.
Connect only the large speaker to the panel terminals 7 and 8 as shown. The smaller
!
speaker cannot handle to output of terminals 7 and 8. To avoid damaging the speaker, the
smaller speaker should not be connected to terminals 7 and 8.
Caution
Exterior
Speaker
7 8
Splice
2 8-Ohm Speakers in
Series (16 Ohms)

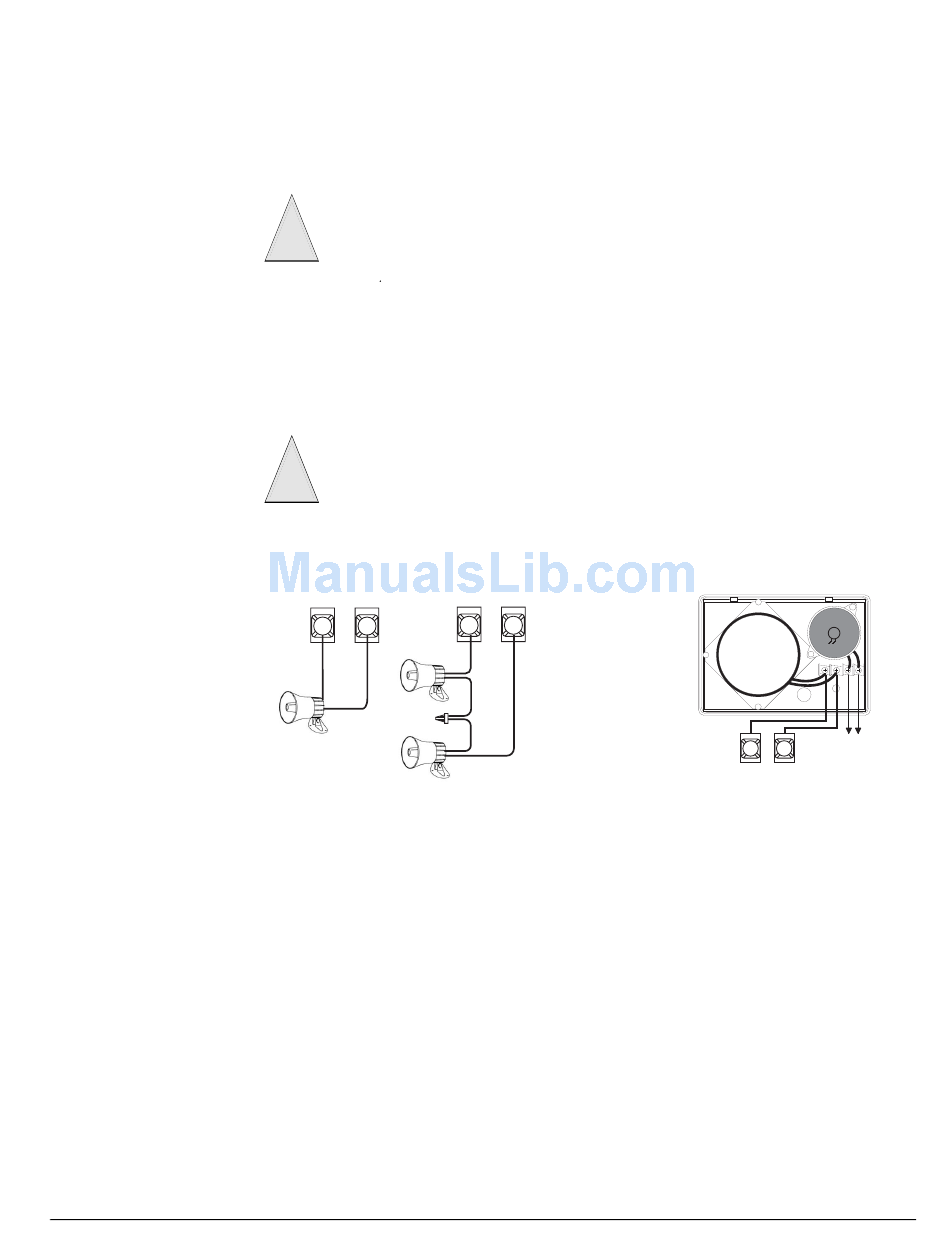

Figure 11. Connecting Interior and Exterior Speakers to the Panel
Connect two units to the panel terminals with speakers in series (16-ohms), as shown in
Figure 12.
Speaker
7 8
Interior
Not Used
Panel
7 8
Terminals
Speaker
