23
3. Check the phones on the premises for dial tone and the ability to dial out and make phone
calls. If phones do not work correctly, check all wiring and correct where necessary. Proceed
to the "Troubleshooting" section of this manual if problems persist.
Gry
Brn
RJ-31X
Jack
Red
Grn
B
A
TELCO
Protector Block
RJ-31X
T I P R I N G
Phone
( + ) ( - )
Line
D
Wire
Red
Green Run
C
Black
White (or Yellow)
Red
Green
Lines From
Phones On
Premises
6 0 7 3 4 G 8 4 D . D S F

Connecting the AC Power Transformer

The panel must be powered by a plug-in stepdown transformer that supplies 24 VAC, 30 VA (60-
761) or 24 VAC, 50 VA (60-778).
For systems that include a Power Line Carrier card and Supervised Wireless Sirens, or X10
Lamp Modules, the panel must be powered with the Line Carrier Power Transformer that sup-
plies 24 VAC, 30 VA (60-762) or 24 VAC, 50 VA (60-779). Connect the power transformer to the
panel as shown in Figure 28.
!
Do not plug in the power transformer at this time. The panel must be powered up using
the sequence of steps described in the next section, "Powering Up the Panel."
Caution
Panel Terminals
2 4 V A C
1 2
6 0 7 3 4 g 1 0 4 d . d s f

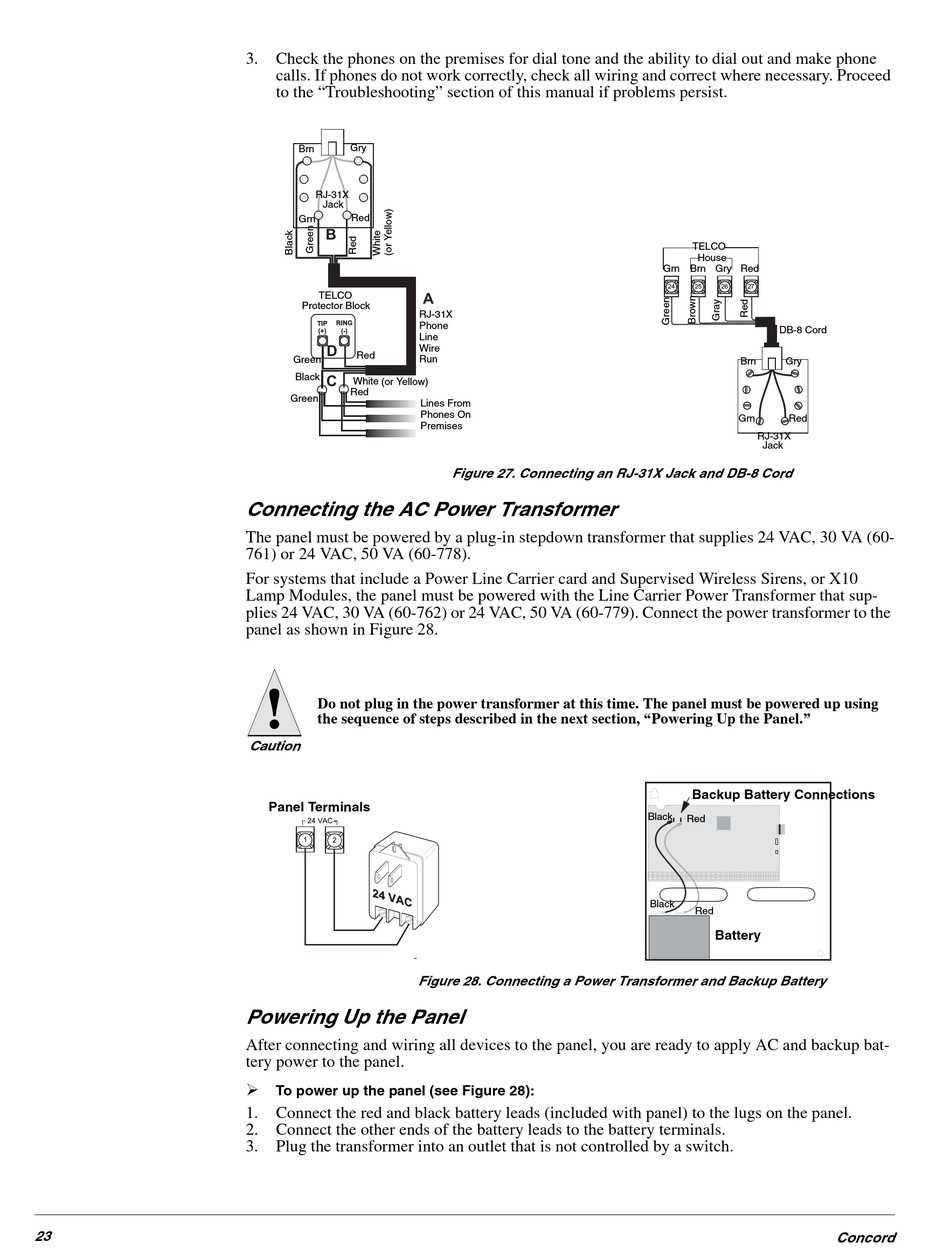

Figure 28. Connecting a Power Transformer and Backup Battery

Powering Up the Panel

After connecting and wiring all devices to the panel, you are ready to apply AC and backup bat-
tery power to the panel.
¾
To power up the panel (see Figure 28):
1. Connect the red and black battery leads (included with panel) to the lugs on the panel.
2. Connect the other ends of the battery leads to the battery terminals.
3. Plug the transformer into an outlet that is not controlled by a switch.
Figure 27. Connecting an RJ-31X Jack and DB-8 Cord
TELCO
House
Grn Brn Gry Red
2 4
2 5 2 6 2 7
DB-8 Cord
Brn Gry
Grn Red
6 0 7 3 4 G 8 6 D . D S F
RJ-31X
Jack
Backup Battery Connections
Black
Red
Black
Red
Battery
Concord
