Installing Optional Snapcards; Connecting Detection Devices To Panel Zone Inputs; Connecting Intrusion Detection Devices; Connecting 2-Wire Smoke Detectors - GE Interlogix Concord Security System Installation Instructions Manual

Note
The panel comes with fac-
tory programmed onboard
hardwire zones. Install
2k-ohm, end of line (EOL)
resistors on all unused fac-
tory programmed onboard
hardwire zones. If you don't
want to install EOL resistors,
delete any unused zones
from memory. See Table 8
for onboard hardwire zone
factory programming.
Concord

Installing Optional SnapCards

The SnapCard Header on the right side of the panel allows for the installation of one SnapCard.
Install the desired SnapCard onto the panel SnapCard Header and secure it in place with two
screws, included with the card (see Figure 8).
Connect all necessary input/output wiring using the Installation Instructions included with the
card.

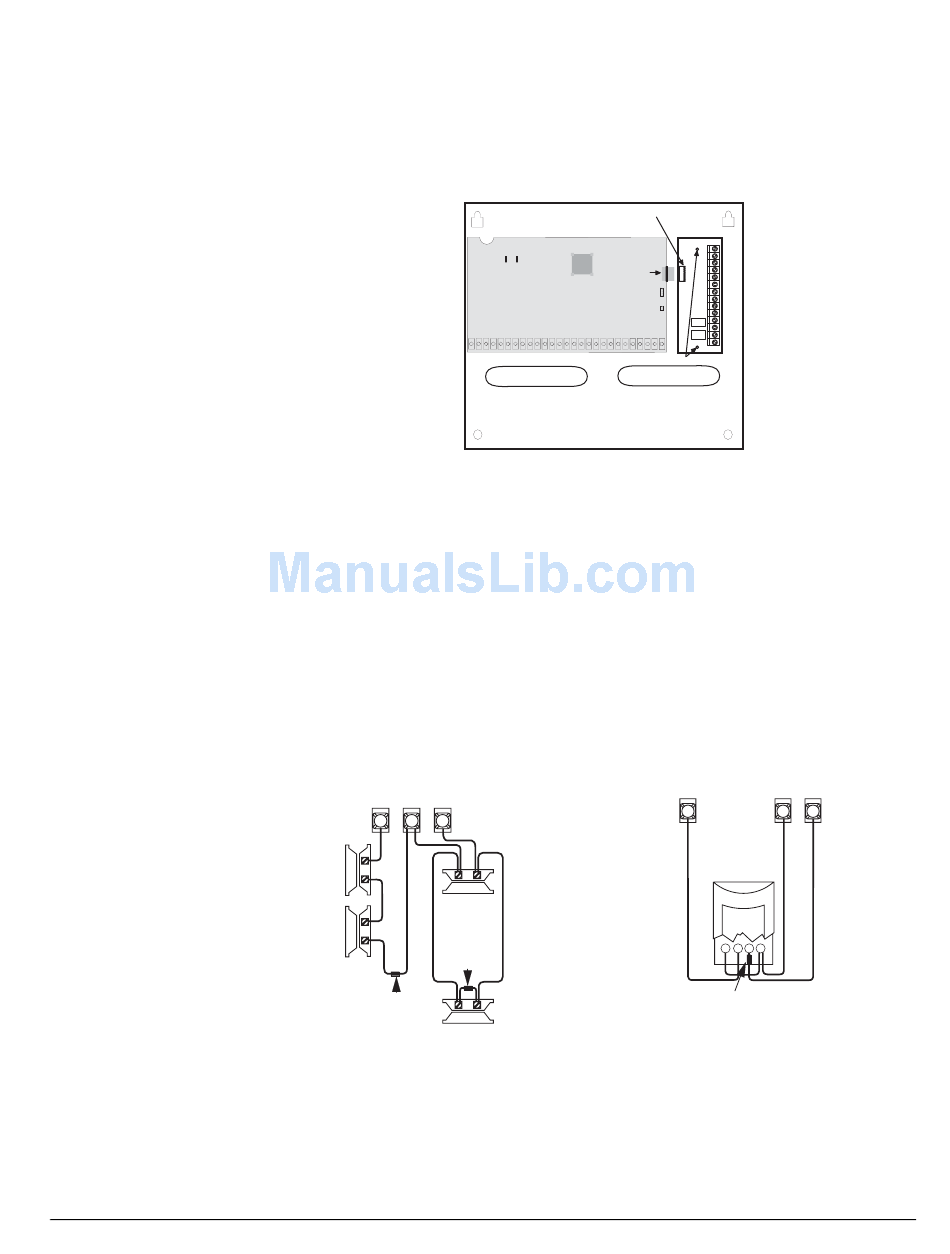

Figure 8. Installing a SnapCard into the Panel Expansion Connector

Connecting Detection Devices to Panel Zone Inputs

Zone inputs 1 through 8 are supervised using included 2k-ohm, end-of-line resistors at the last
device on each circuit. All eight zones accept either normally open (N/O) or normally closed (N/
C) detection devices.

Connecting Intrusion Detection Devices

Figure 9 shows the typical wiring for N/C and N/O door/window intrusion detection and the typ-
ical wiring for a Detection Systems model DS922 (part no. 13-082) motion detector. The mini-
mum available panel voltage for hardwired PIR motion detectors is 8.5 VDC (9.5 VDC for UL
listed installations).
Note
When using 2-wire smoke detectors on zone 8, the Two-Wire Smoke setting (in program mode) must be
turned on before entering the
"Programming the Panel" for complete details.
Panel Terminals
Zone 2 GND Zone 3
Normally
Closed
(N/C)
Normally Open
Contacts
(N/O) Contacts in
In Series
2k Ohm EOL
Resistor 49-454
2k Ohm EOL
Resistor 49-454
Figure 9. Connecting N/C and N/O Intrusion Detection and Motion Detector Circuits to the Panel

Connecting 2-Wire Smoke Detectors

Zone input 8 can be set up (in program mode) to accept the following 12 VDC, 2-wire smoke
detectors:
• System Sensor models 2100D, 2100TD, 2100S, 2100TS, 2400, 2400TH
SnapCard
Header
Screw Locations
menu. See
LEARN SENSORS
Parallel
Connector
SnapCard
— in the section
ONBOARD OPTIONS INPUTS
Zone
+12
GND
BUS
Panel
Terminals
Motion
Detector
2k Ohm EOL Resistor 49-454
(Locate at Sensor)
7
12
