Note
If alphanumeric touchpads
don't display anything,
immediately unplug the
transformer and disconnect
the backup battery. Refer to
the "Troubleshooting" sec-
tion.

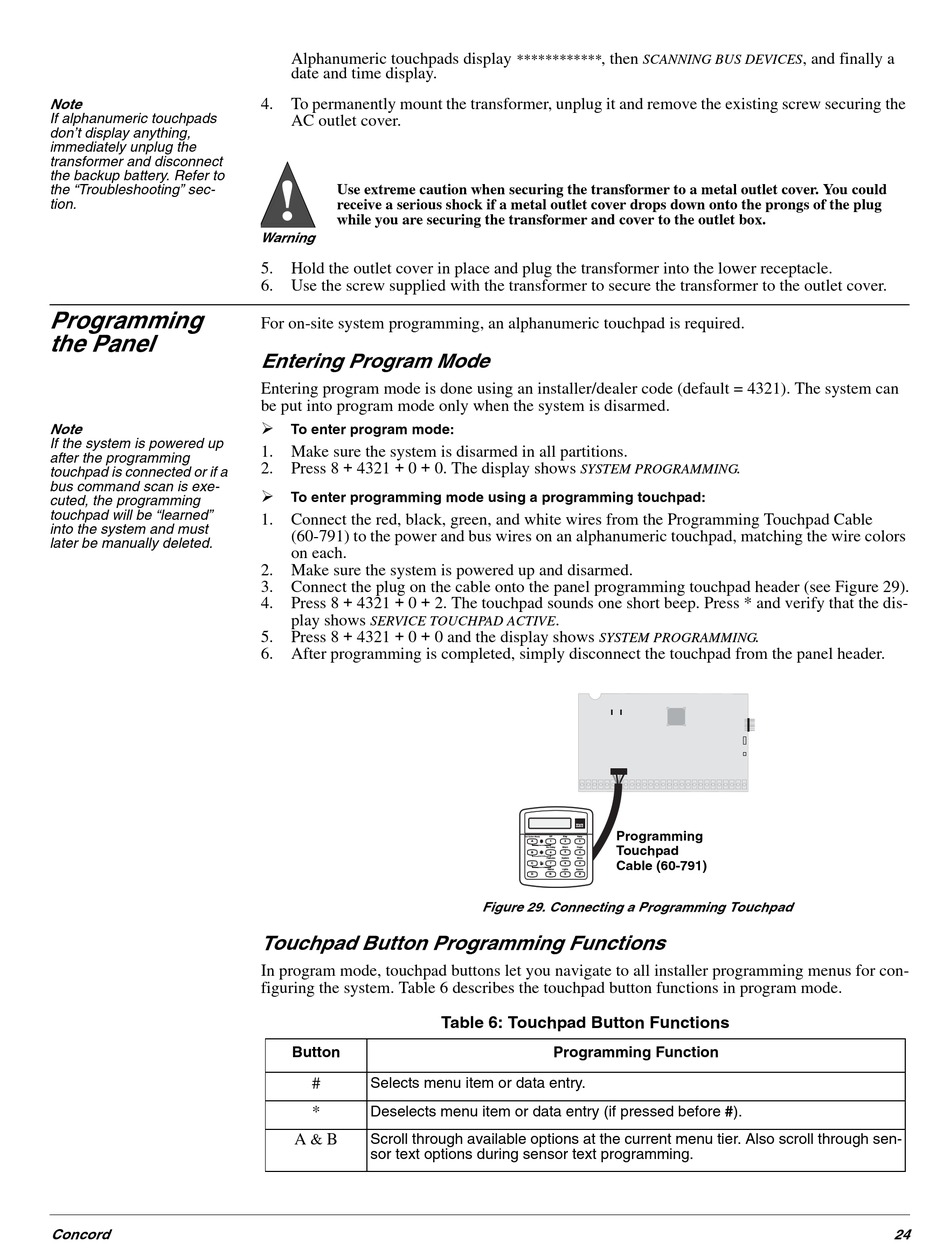

Programming
the Panel
Note
If the system is powered up
after the programming
touchpad is connected or if a
bus command scan is exe-
cuted, the programming
touchpad will be "learned"
into the system and must
later be manually deleted.
Concord
Alphanumeric touchpads display
date and time display.
4. To permanently mount the transformer, unplug it and remove the existing screw securing the
AC outlet cover.
!
Use extreme caution when securing the transformer to a metal outlet cover. You could
receive a serious shock if a metal outlet cover drops down onto the prongs of the plug
while you are securing the transformer and cover to the outlet box.
Warning
5. Hold the outlet cover in place and plug the transformer into the lower receptacle.
6. Use the screw supplied with the transformer to secure the transformer to the outlet cover.
For on-site system programming, an alphanumeric touchpad is required.

Entering Program Mode

Entering program mode is done using an installer/dealer code (default = 4321). The system can
be put into program mode only when the system is disarmed.
¾
To enter program mode:
1. Make sure the system is disarmed in all partitions.
2. Press 8 + 4321 + 0 + 0. The display shows
¾
To enter programming mode using a programming touchpad:
1. Connect the red, black, green, and white wires from the Programming Touchpad Cable
(60-791) to the power and bus wires on an alphanumeric touchpad, matching the wire colors
on each.
2. Make sure the system is powered up and disarmed.
3. Connect the plug on the cable onto the panel programming touchpad header (see Figure 29).
4. Press 8 + 4321 + 0 + 2. The touchpad sounds one short beep. Press * and verify that the dis-
play shows
SERVICE TOUCHPAD ACTIVE
5. Press 8 + 4321 + 0 + 0 and the display shows
6. After programming is completed, simply disconnect the touchpad from the panel header.

Touchpad Button Programming Functions

In program mode, touchpad buttons let you navigate to all installer programming menus for con-
figuring the system. Table 6 describes the touchpad button functions in program mode.
Button
#
Selects menu item or data entry.
*
Deselects menu item or data entry (if pressed before #).
A & B Scroll through available options at the current menu tier. Also scroll through sen-
sor text options during sensor text programming.
, then
************
SYSTEM PROGRAMMING
.
SYSTEM PROGRAMMING
Programming
S t a y A w a y
T e s t S y s t e m W e e k l y O f f
A 1 2 3
p r e s s b o t h
N o D e l a y S i l e n t P a g e r Touchpad
B 4 5 6
p r e s s b o t h
F e a t u r e s S y s t e m M e n u
Cable (60-791)
C 7 8 9
p r e s s b o t h
S t a t u s L i g h t s B y p a s s
*
D 0 #
Figure 29. Connecting a Programming Touchpad
Table 6: Touchpad Button Functions
Programming Function
, and finally a
SCANNING BUS DEVICES
.
.
6 0 7 3 4 G 3 0 8 D . D S F
