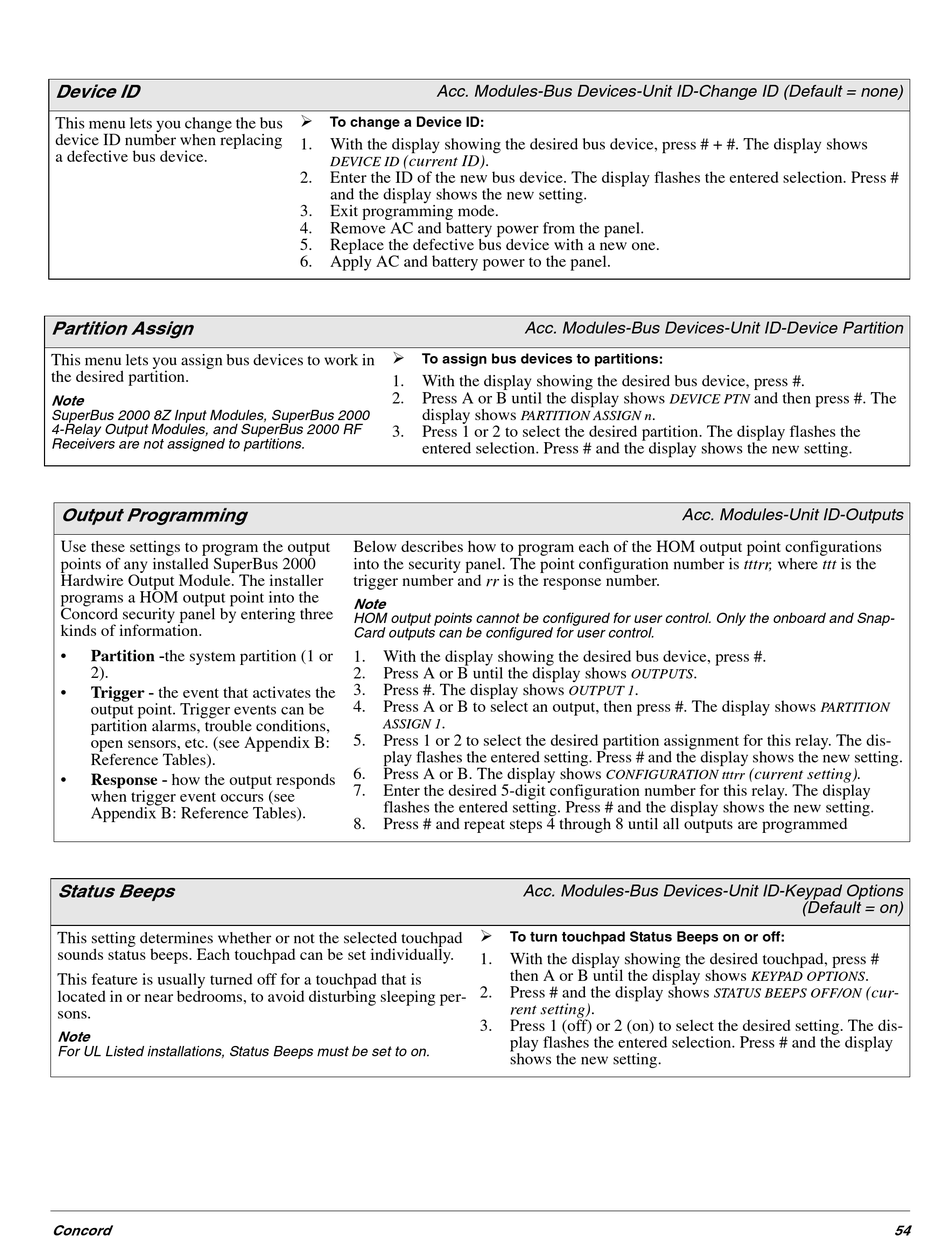

Output Programming; Status Beeps - GE Interlogix Concord Security System Installation Instructions Manual

Device ID
This menu lets you change the bus
device ID number when replacing
a defective bus device.
Partition Assign
This menu lets you assign bus devices to work in
the desired partition.
Note
SuperBus 2000 8Z Input Modules, SuperBus 2000
4-Relay Output Modules, and SuperBus 2000 RF
Receivers are not assigned to partitions.

Output Programming

Use these settings to program the output
points of any installed SuperBus 2000
Hardwire Output Module. The installer
programs a HOM output point into the
Concord security panel by entering three
kinds of information.
• Partition -the system partition (1 or
2).
• Trigger - the event that activates the
output point. Trigger events can be
partition alarms, trouble conditions,
open sensors, etc. (see Appendix B:
Reference Tables).
• Response - how the output responds
when trigger event occurs (see
Appendix B: Reference Tables).

Status Beeps

This setting determines whether or not the selected touchpad
sounds status beeps. Each touchpad can be set individually.
This feature is usually turned off for a touchpad that is
located in or near bedrooms, to avoid disturbing sleeping per-
sons.
Note
For UL Listed installations, Status Beeps must be set to on.
Concord
Acc. Modules-Bus Devices-Unit ID-Change ID (Default = none)
¾
To change a Device ID:
1. With the display showing the desired bus device, press # + #. The display shows
(current ID).
DEVICE ID
2. Enter the ID of the new bus device. The display flashes the entered selection. Press #
and the display shows the new setting.
3. Exit programming mode.
4. Remove AC and battery power from the panel.
5. Replace the defective bus device with a new one.
6. Apply AC and battery power to the panel.
¾
To assign bus devices to partitions:
1. With the display showing the desired bus device, press #.
2. Press A or B until the display shows
display shows
3. Press 1 or 2 to select the desired partition. The display flashes the
entered selection. Press # and the display shows the new setting.
Below describes how to program each of the HOM output point configurations
into the security panel. The point configuration number is tttrr, where ttt is the
trigger number and rr is the response number.
Note
HOM output points cannot be configured for user control. Only the onboard and Snap-
Card outputs can be configured for user control.
1. With the display showing the desired bus device, press #.
2. Press A or B until the display shows
3. Press #. The display shows
4. Press A or B to select an output, then press #. The display shows
.
ASSIGN 1
5. Press 1 or 2 to select the desired partition assignment for this relay. The dis-
play flashes the entered setting. Press # and the display shows the new setting.
6. Press A or B. The display shows
7. Enter the desired 5-digit configuration number for this relay. The display
flashes the entered setting. Press # and the display shows the new setting.
8. Press # and repeat steps 4 through 8 until all outputs are programmed
Acc. Modules-Bus Devices-Unit ID-Device Partition
.
PARTITION ASSIGN n
OUTPUTS
.
OUTPUT 1
CONFIGURATION tttrr
Acc. Modules-Bus Devices-Unit ID-Keypad Options
¾
To turn touchpad Status Beeps on or off:
1. With the display showing the desired touchpad, press #
then A or B until the display shows
2. Press # and the display shows
rent setting).
3. Press 1 (off) or 2 (on) to select the desired setting. The dis-
play flashes the entered selection. Press # and the display
shows the new setting.
and then press #. The
DEVICE PTN
Acc. Modules-Unit ID-Outputs
.
PARTITION
(current setting).
(Default = on)
KEYPAD OPTIONS
STATUS BEEPS OFF/ON
.
