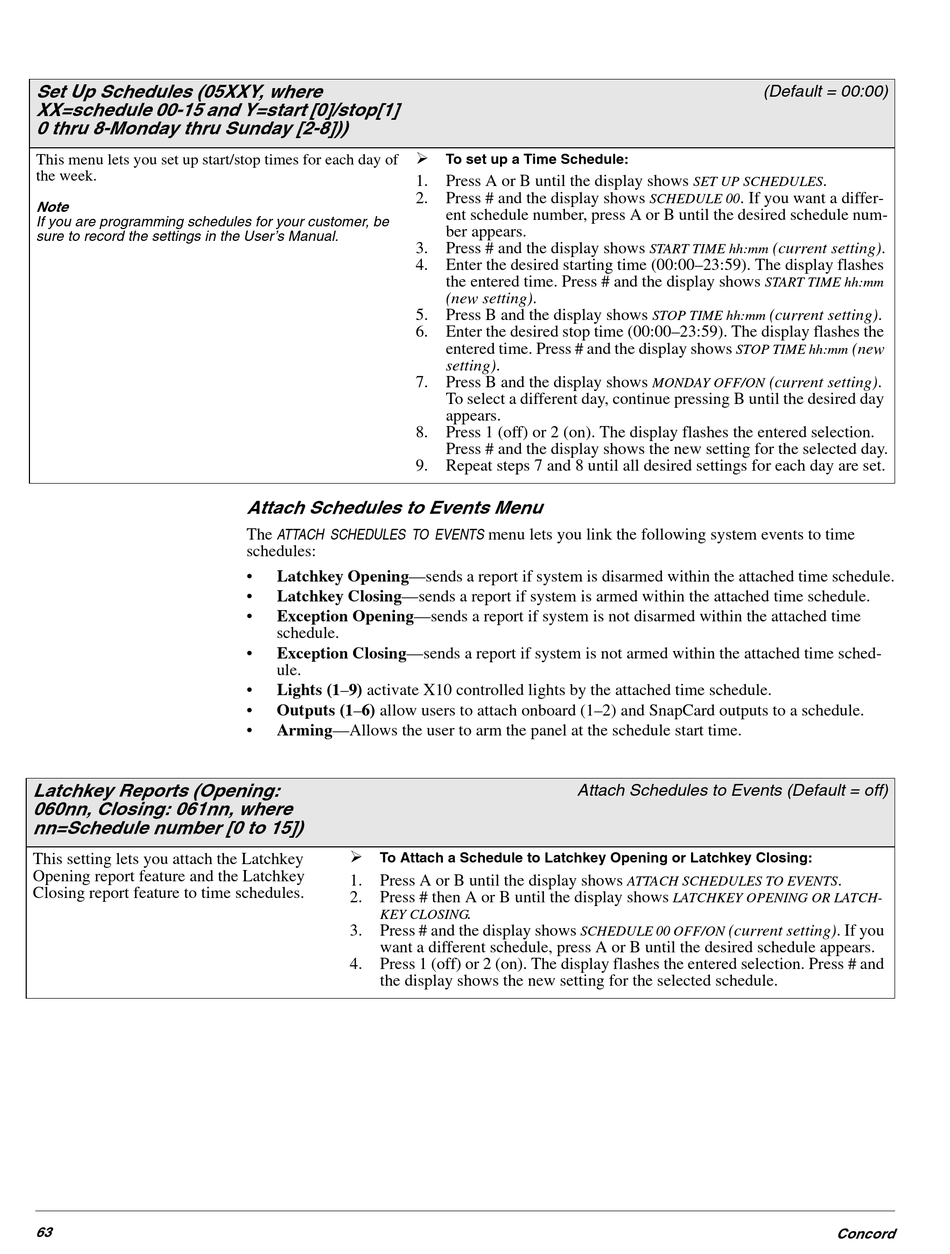

Attach Schedules To Events Menu - GE Interlogix Concord Security System Installation Instructions Manual

Set Up Schedules (05XXY, where
XX=schedule 00-15 and Y=start [0]/stop[1]
0 thru 8-Monday thru Sunday [2-8]))
This menu lets you set up start/stop times for each day of
the week.
Note
If you are programming schedules for your customer, be
sure to record the settings in the User's Manual.
Latchkey Reports (Opening:
060nn, Closing: 061nn, where
nn=Schedule number [0 to 15])
This setting lets you attach the Latchkey
Opening report feature and the Latchkey
Closing report feature to time schedules.
63
¾
1.
2.
3.
4.
5.
6.
7.
8.
9.

Attach Schedules to Events Menu

The
ATTACH SCHEDULES TO EVENTS
schedules:
• Latchkey Opening—sends a report if system is disarmed within the attached time schedule.
• Latchkey Closing—sends a report if system is armed within the attached time schedule.
• Exception Opening—sends a report if system is not disarmed within the attached time
schedule.
• Exception Closing—sends a report if system is not armed within the attached time sched-
ule.
• Lights (1–9) activate X10 controlled lights by the attached time schedule.
• Outputs (1–6) allow users to attach onboard (1–2) and SnapCard outputs to a schedule.
• Arming—Allows the user to arm the panel at the schedule start time.
¾
To Attach a Schedule to Latchkey Opening or Latchkey Closing:
1. Press A or B until the display shows
2. Press # then A or B until the display shows
KEY CLOSING
3. Press # and the display shows
want a different schedule, press A or B until the desired schedule appears.
4. Press 1 (off) or 2 (on). The display flashes the entered selection. Press # and
the display shows the new setting for the selected schedule.
To set up a Time Schedule:
Press A or B until the display shows
Press # and the display shows
ent schedule number, press A or B until the desired schedule num-
ber appears.
Press # and the display shows
Enter the desired starting time (00:00–23:59). The display flashes
the entered time. Press # and the display shows
(new setting).
Press B and the display shows
Enter the desired stop time (00:00–23:59). The display flashes the
entered time. Press # and the display shows
setting).
Press B and the display shows
To select a different day, continue pressing B until the desired day
appears.
Press 1 (off) or 2 (on). The display flashes the entered selection.
Press # and the display shows the new setting for the selected day.
Repeat steps 7 and 8 until all desired settings for each day are set.
menu lets you link the following system events to time
Attach Schedules to Events (Default = off)
.
SCHEDULE 00 OFF/ON
(Default = 00:00)
SET UP SCHEDULES
. If you want a differ-
SCHEDULE 00
(current setting).
START TIME hh:mm
START TIME hh:mm
(current setting).
STOP TIME hh:mm
STOP TIME hh:mm
(current setting).
MONDAY OFF/ON
ATTACH SCHEDULES TO EVENTS
LATCHKEY OPENING OR LATCH-
(current setting). If you
.
(new
.
