Note
The way information is dis-
played varies with pager ser-
vices and may not match the
example above. Account
numbers with alpha-charac-
ters also vary when dis-
played, depending on pager
service. Account numbers
are not displayed if
STREAMLINING is turned
on.
Concord

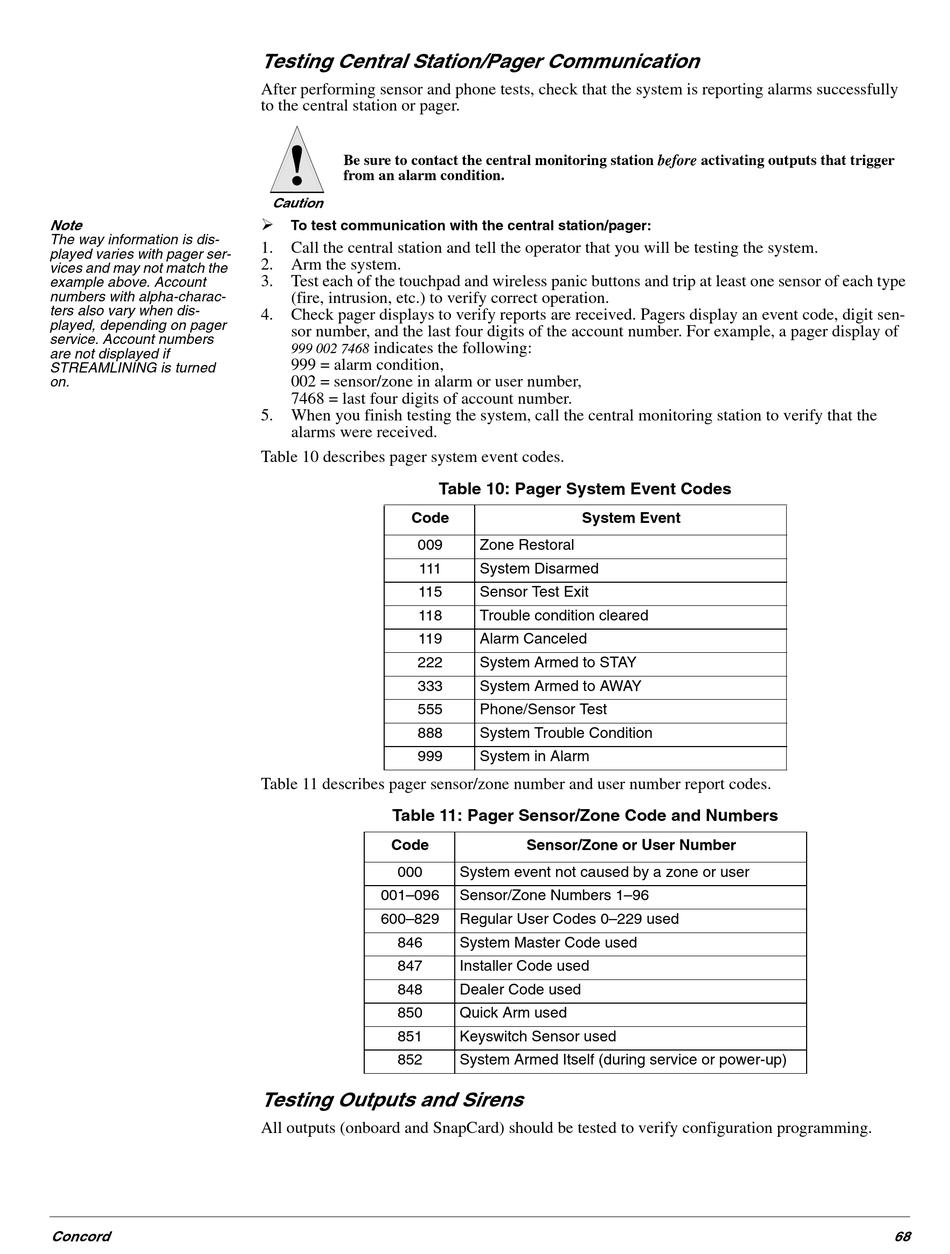

Testing Central Station/Pager Communication

After performing sensor and phone tests, check that the system is reporting alarms successfully
to the central station or pager.
!
Be sure to contact the central monitoring station before activating outputs that trigger
from an alarm condition.
Caution
¾
To test communication with the central station/pager:
1. Call the central station and tell the operator that you will be testing the system.
2. Arm the system.
3. Test each of the touchpad and wireless panic buttons and trip at least one sensor of each type
(fire, intrusion, etc.) to verify correct operation.
4. Check pager displays to verify reports are received. Pagers display an event code, digit sen-
sor number, and the last four digits of the account number. For example, a pager display of
indicates the following:
999 002 7468
999 = alarm condition,
002 = sensor/zone in alarm or user number,
7468 = last four digits of account number.
5. When you finish testing the system, call the central monitoring station to verify that the
alarms were received.
Table 10 describes pager system event codes.
Table 10: Pager System Event Codes
Code
009
111
115
118
119
222
333
555
888
999
Table 11 describes pager sensor/zone number and user number report codes.
Table 11: Pager Sensor/Zone Code and Numbers
Code
000
001–096
600–829
846
847
848
850
851
852

Testing Outputs and Sirens

All outputs (onboard and SnapCard) should be tested to verify configuration programming.
System Event
Zone Restoral
System Disarmed
Sensor Test Exit
Trouble condition cleared
Alarm Canceled
System Armed to STAY
System Armed to AWAY
Phone/Sensor Test
System Trouble Condition
System in Alarm
Sensor/Zone or User Number
System event not caused by a zone or user
Sensor/Zone Numbers 1–96
Regular User Codes 0–229 used
System Master Code used
Installer Code used
Dealer Code used
Quick Arm used
Keyswitch Sensor used
System Armed Itself (during service or power-up)
68
