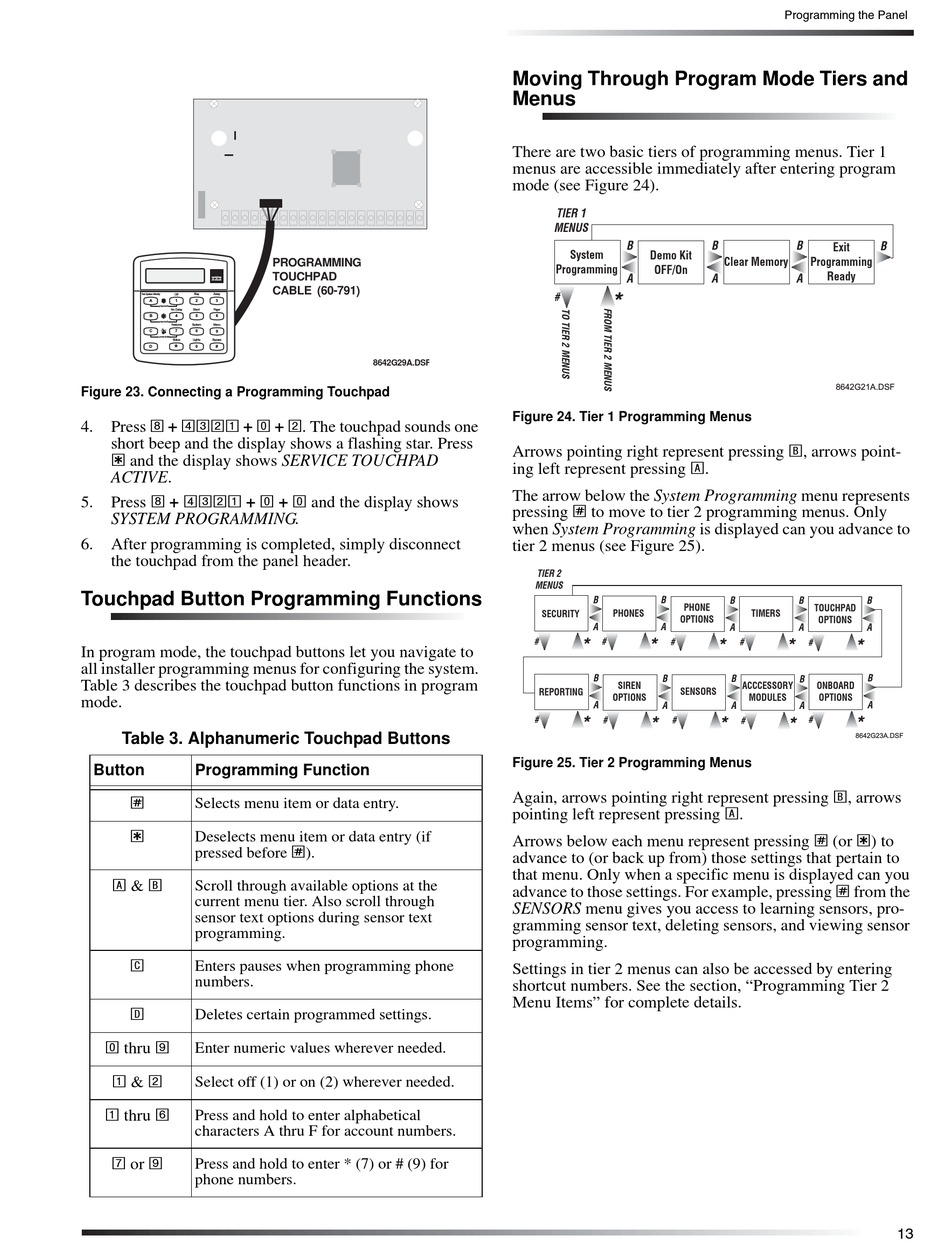

Figure 23. Connecting a Programming Touchpad
Press 8 + 4321 + 0 + 2 . The touchpad sounds one
4.
short beep and the display shows a flashing star. Press
‚ and the display shows SERVICE TOUCHPAD
ACTIVE.
Press 8 + 4321 + 0 + 0 and the display shows
5.
SYSTEM PROGRAMMING.
6. After programming is completed, simply disconnect
the touchpad from the panel header.

Touchpad Button Programming Functions

In program mode, the touchpad buttons let you navigate to
all installer programming menus for configuring the system.
Table 3 describes the touchpad button functions in program
mode.
Table 3. Alphanumeric Touchpad Buttons
Button Programming Function
ƒ
Selects menu item or data entry.
‚
Deselects menu item or data entry (if
pressed before
A & B
Scroll through available options at the
current menu tier. Also scroll through
sensor text options during sensor text
programming.
C
Enters pauses when programming phone
numbers.
D
Deletes certain programmed settings.
0 thru 9
Enter numeric values wherever needed.
1 & 2 Select off (1) or on (2) wherever needed.
1 thru 6
Press and hold to enter alphabetical
characters A thru F for account numbers.
7 or 9
Press and hold to enter * (7) or # (9) for
phone numbers.
PROGRAMMING
TOUCHPAD
CABLE (60-791)
8642G29A.DSF
ƒ ).
Moving Through Program Mode Tiers and
Menus
There are two basic tiers of programming menus. Tier 1
menus are accessible immediately after entering program
mode (see Figure 24).
TIER 1
MENUS
B
System
Demo Kit
Programming
OFF/On
A
# *
Figure 24. Tier 1 Programming Menus
Arrows pointing right represent pressing B , arrows point-
ing left represent pressing A .
The arrow below the System Programming menu represents
pressing ƒ to move to tier 2 programming menus. Only
when System Programming is displayed can you advance to
tier 2 menus (see Figure 25).
TIER 2
MENUS
B B
PHONE
SECURITY PHONES
OPTIONS
A A
# * # *
#
B B
SIREN
SENSORS
REPORTING
OPTIONS
A
A
# *
# * #
Figure 25. Tier 2 Programming Menus
Again, arrows pointing right represent pressing B , arrows
pointing left represent pressing A .
Arrows below each menu represent pressing ƒ (or ‚ ) to
advance to (or back up from) those settings that pertain to
that menu. Only when a specific menu is displayed can you
advance to those settings. For example, pressing ƒ from the
SENSORS menu gives you access to learning sensors, pro-
gramming sensor text, deleting sensors, and viewing sensor
programming.
Settings in tier 2 menus can also be accessed by entering
shortcut numbers. See the section, "Programming Tier 2
Menu Items" for complete details.
Programming the Panel
B B
B
Exit
Clear Memory Programming
Ready
A A
8 6 4 2 G 2 1 A . D S F
B B B
TOUCHPAD
TIMERS
OPTIONS
A A A
* # * # *
B B B
ACCCESSORY ONBOARD
MODULES OPTIONS
A
A A
# *
* # *
8 6 4 2 G 2 3 A . D S F
