Programming the Panel

Powering Up the Panel

After installing SnapCards and wiring all devices to the
panel, you are ready to apply AC and backup battery power
to the panel.
œÌi
If you plan on connecting an alphanumeric touchpad
to the programming touchpad header on the panel, do
not connect it until after the panel is powered up.
Refer to "Entering Programming Mode," later in this
section.
To power up the panel:
1. Connect the red and black battery leads (included with
panel) to the lugs located in the upper-left area of the
panel circuit board (see Figure 22).
BACKUP BATTERY CONNECTIONS
RED
RED
BLACK
BATTERY

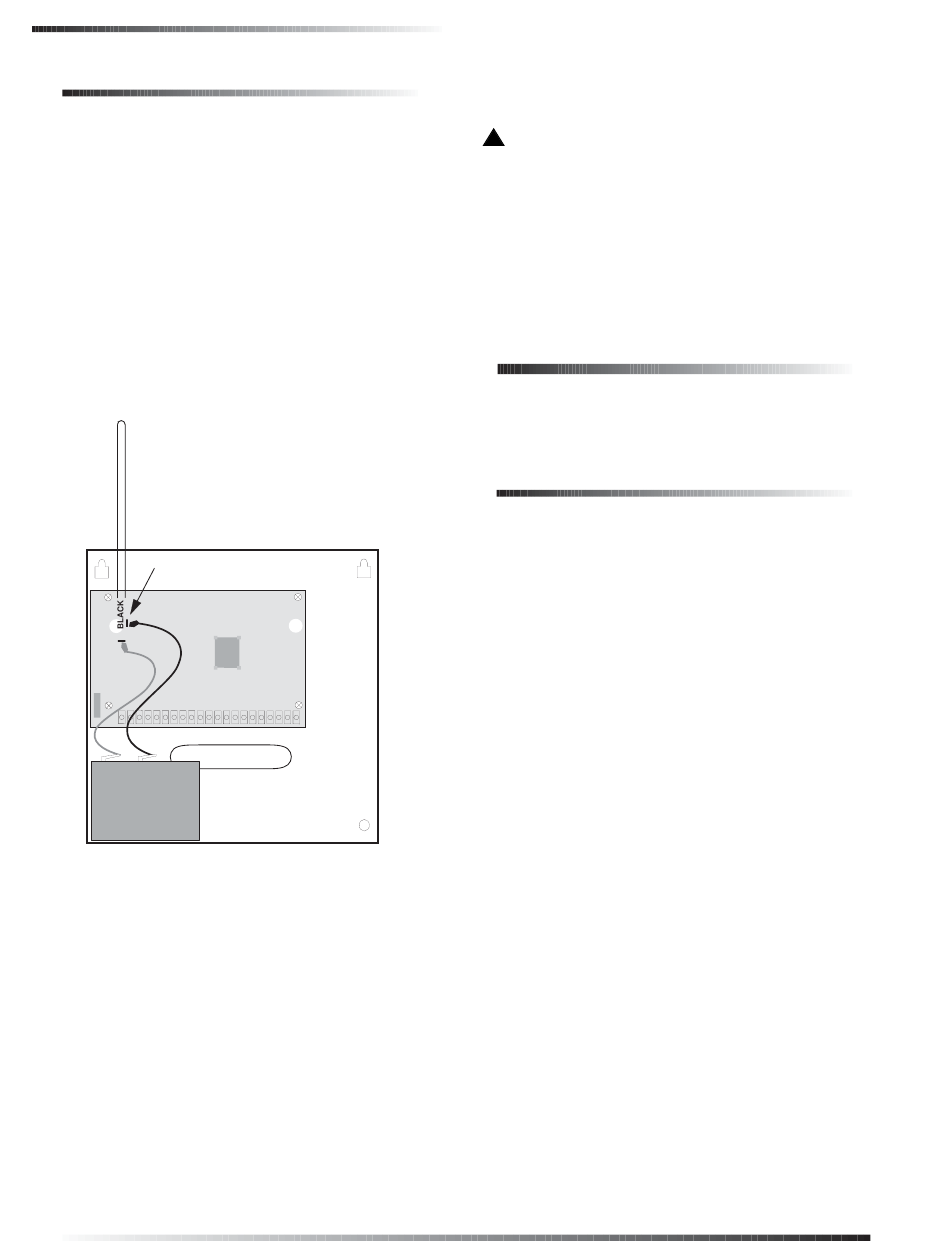

Figure 22. Connecting the Backup Battery
2. Connect the battery leads to the battery terminals as
shown.
3. Plug the transformer into an outlet that is not controlled
by a switch or ground fault circuit interrupt (GFCI).
Alphanumeric touchpads display ************,
SCANNING BUS DEVICES, then a date and time
display. Fixed display touchpads briefly show all
text, no text, BUS SCAN, then a time display.
œÌi
If touchpads don't display anything, immediately
unplug the transformer and disconnect the backup
battery. Refer to the "Troubleshooting" section.
12
4. To permanently mount the transformer, unplug it and
remove the existing screw securing the AC outlet
cover.
!
5. Hold the outlet cover in place and plug the transformer
into the lower receptacle.
6. Use the screw supplied with the transformer to secure
the transformer to the outlet cover.
Programming the Panel
This section describes how to program all settings found in
programming mode. For on-site system programming, an
alphanumeric touchpad is required.

Entering Programming Mode

Enter programming mode on site from an alphanumeric
touchpad using an installer/dealer code (default = 4321).
The system can be put into program mode only when it is
disarmed.
To enter programming mode using an
alphanumeric touchpad connected to the panel
terminals:
1. Make sure the system is disarmed.
2. Press 8 + CODE + 0 + 0 . The touchpad shows SYS-
TEM PROGRAMMING.
To enter programming mode using a programming
touchpad:
1. Connect the red, black, green, and white wires from the
Programming Touchpad Cable (60-791) to the power
and bus wires on an alphanumeric touchpad while
8642G20A.DSF
matching the wire colors on each.
2. Make sure the system is powered up and disarmed.
3. Connect the plug on the cable onto the panel program-
ming touchpad header (see Figure 23).
ÁD2"2
Use extreme caution when securing the trans-
former to a metal outlet cover. You could receive a
serious shock if a metal outlet cover drops down
onto the prongs of the plug while you are securing
the transformer and cover to the outlet box.
œÌi
If the programming touchpad is connected before the
panel is powered up, it will be added (learned) into
panel memory as a permanent touchpad.
