C2
INSTALLATION MANUAL
DSS3 Installation
The DSS3 is a surface mount door station designed to work with the C2, ELAN's next generation
in-home communications controller. Connect the DSS3 Door Station using Cat-5
network cable as shown in Figure 3-8 and Figure 3-9.
The DSS3 has a surface mounting plate that attaches to most surfaces with 4 wall anchors
and 4 screws. Attach attach the door station and surface bracket as shown in Figure B-8.
To install the DSS3 Door Station:
1) Using the surface bracket as a template, mark and drill the four corner holes. Insert a
wall anchor in to each hole.
2) Attach the surface bracket using the four surface mounting screws.
NOTE: Make sure to make your electrical connections prior to mounting the door
station.
3) Connect DS + and DS - using a butt splice or other appropriate connector.
4) Mount the door station to the surface bracket, as illustrated in Figure B-8. Note the
orientation of the Mounting Plate flanges.
Page 66

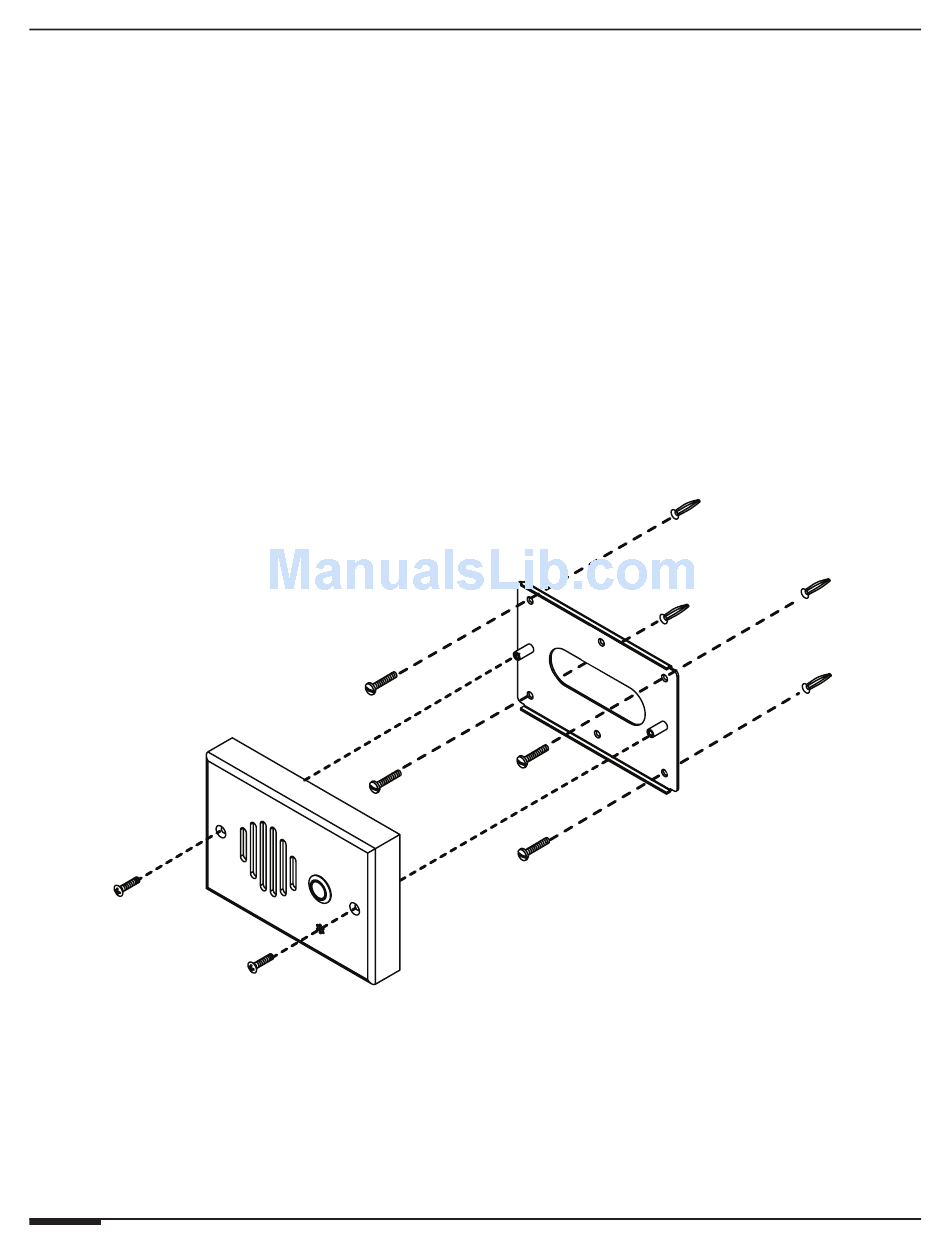

Figure B-8: Mounting the DSS3 Door Station
E L A N H O M E S Y S T E M S
© ELAN Home Systems 2009 • All rights reserved.
