Front Panel Controls & Indicators
1 3
2
[ ]
Item Description
Mute/Telemute Status LED
1
Line 1&2 Status LEDs
2
Page LED
3
Doorbell Status (1-4) LEDs
4
Relay Status (1-4) LEDs
5
Page Output Level
6
Line 1 Music-On-Hold Level
7
Door Station Microphone Input Level
8
Mini "B" USB Connector
9
DIP Switches
10
Power Indicator LED
11
Door Station Speaker Output Level
12
Line 2 Music-On-Hold Level
13
Door Chime Output Level
14
Front Access Door (Shown Open)
15
Page 18
4 5
[ ]

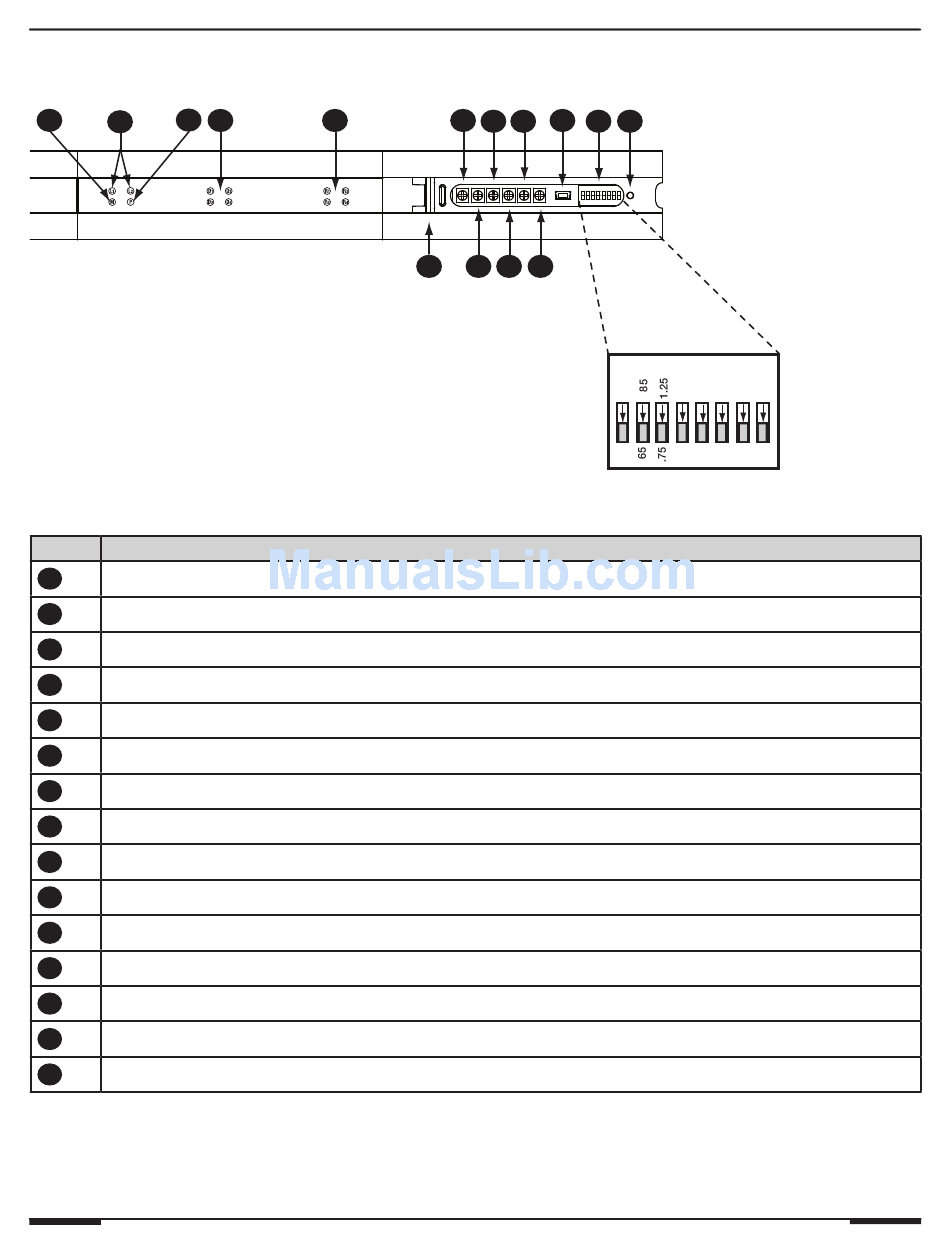

Figure 1-3: C2 Front Panel Controls & Indicators
Table 1-1: C2 Front Panel Controls & Indicators
6 9
7 8 10
15 14 13 12
© ELAN Home Systems 2009 • All rights reserved.
E L A N H O M E S Y S T E M S
11
DIP SWITCHES
1 - #/* POUND/STAR
1 2 3 4 5 6 7 8
2 - 65/85 DEBOUNCE
3 - .75/1.25 FLASHOOK
*
4 - future use
5 - future use
6 - future use
7 - future use
#
8 - future use
