C2 Trigger Outputs to SIM2 Sensor Integration Module

Use the C2's Trigger Outputs to activate automated devices that require voltage or contact
closure such as lighting controls or VIA! Touch Panel sequences using ELAN's SIM2 Sensor
Integration Module.
C2 to SIM2 Sense Input Connections
DB1 Triggers Camera Video on VIA! Touch Panel
© ELAN Home Systems 2009 • All rights reserved.
LOC SYS
LOCAL SYSTEM
7 1 7 1

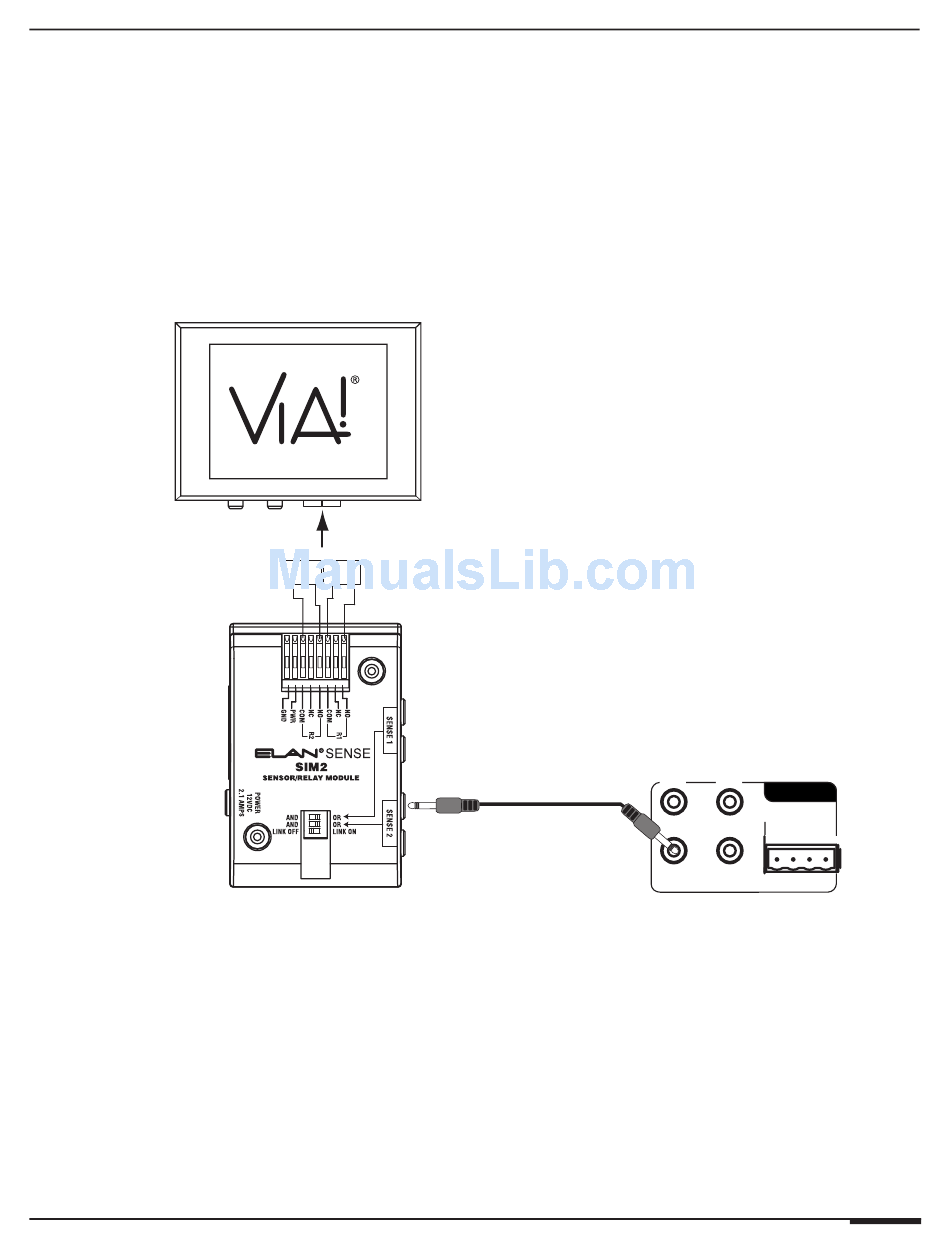

Figure 3-22: C2 to SIM2 Connections
