C2
INSTALLATION MANUAL

ELAN Multi-Room Controller-Based Connections

C2 to S66A Connections

Use an RCA interconnect cable to connect the PAGE IN and MOH (Music On Hold) RCA jacks
from the S66A to the PG/DB OUT and MOH IN (MONO) jacks of the C2. The colors match on
the jacks - Red to Red, White to White.
Connect a 3.5mm mono interconnect cable, such as an ELAN IRIC from the SUM Trigger
Output to the S66A's PAGE TRIG IN.
SUM Trigger Output
S66A responds to Page, all doorbells and
Trigger Inputs.
3.5mm Mono
Interconnect Cable
SUM PG
TRIGGERS
1
+ -
DB 1 DB 2
OUTPUTS
C2 Rear
Page 46
2
+ - + - + - + - + -
INPUTS VCO

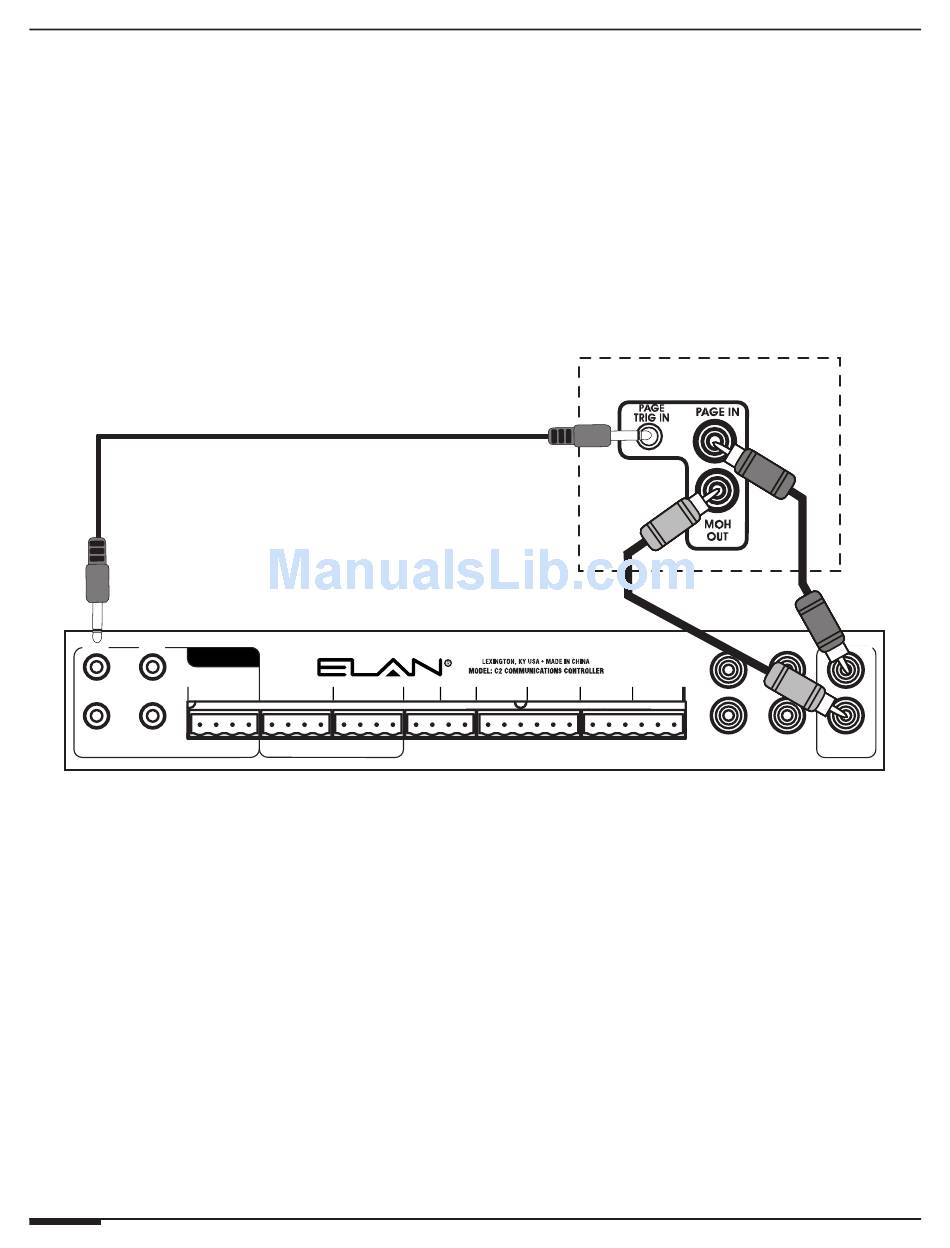

Figure 3-23: C2 ELAN S66A interconnects
S66A Rear
+12V GND NC C NO NC C NO NC C NO NC C NO
POWER RELAY 1 RELAY 2
© ELAN Home Systems 2009 • All rights reserved.
E L A N H O M E S Y S T E M S
RCA
Interconnect
Cable (Stereo)
IN
L
R
RELAY 3 RELAY 4
AUDIO LOOP
OUT
PG/DB OUT
MOH IN
(MONO)
