C2
INSTALLATION MANUAL

VBRM Video Balun

The DSC3 Door Station with Color Camera requires the use of ELAN's VBRM Video Balun
(included) to properly pass video thru Cat-5 network cable at any significant distances.
Figure 3-8 and Figure 3-9 shows the wiring connections using Cat-5 network cable.
Figure B-4 shows the connections for the VBRM Video Balun.
NOTE: The ELAN DSC3, DSF3, or DSS3 Door Stations interface with the C2
Communications Controller to provide door chime and door station
communications functionality. Use Cat-5 for these connections. Cat-5
network cable must be used if using the DSC3 in conjunction with the
VBRM Video Balun.
Page 62
PWR3 PS INPUT
VIDEO
JACK
OUTPUT
(12VDC 130 mA)
VBRM VIDEO BALUN
CONNECTED TO
DSC3 DOOR STATION

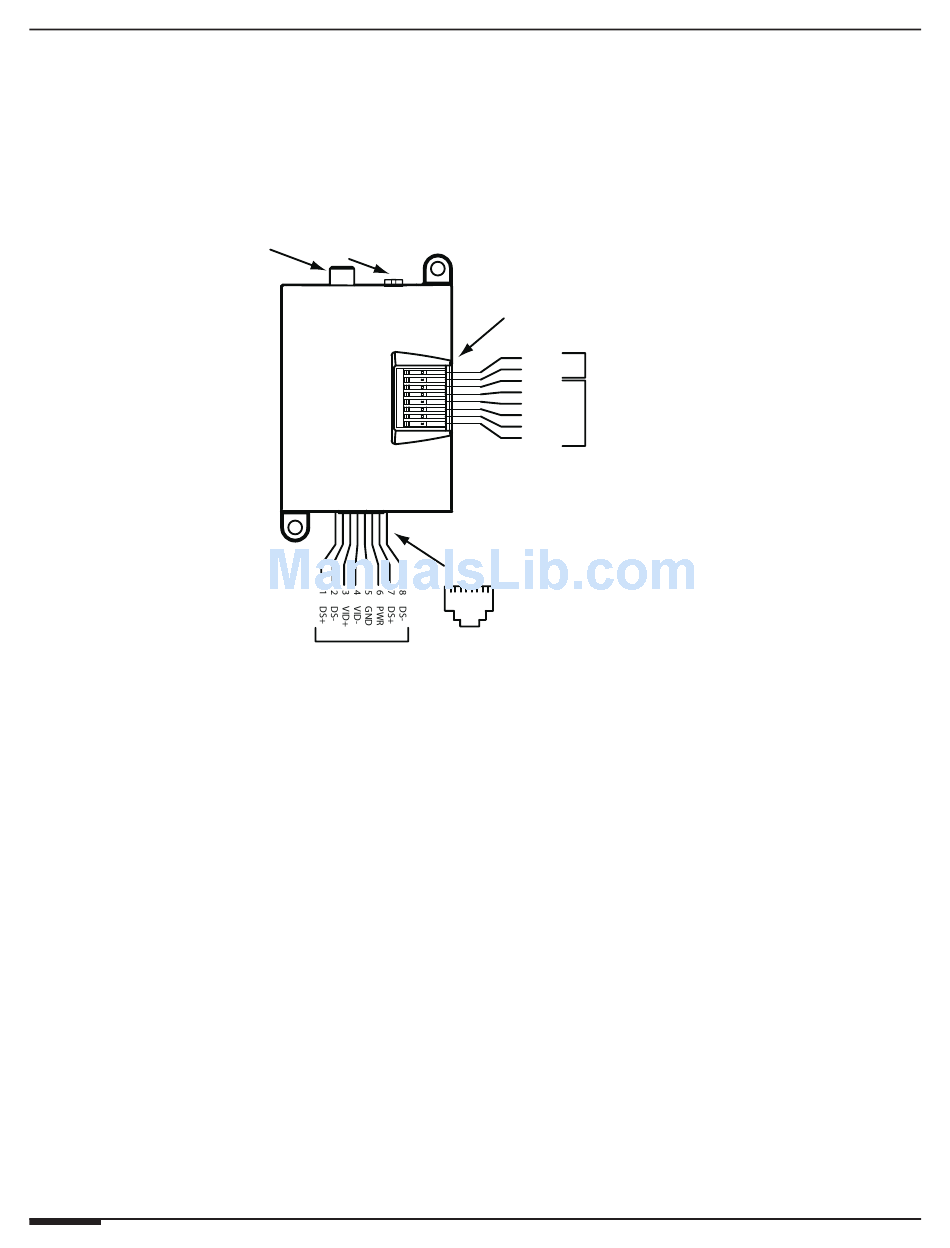

Figure B-4: Video Balun Wiring Connections
QUICK LOCK
CONNECTOR
DS- 1
OUT
DS+ 2
TO COM2
PWR 3
GND 4
VID- 5
CONNECTED
VID+ 6
TO DSC3
DS- 7
DOOR STATION
DS+ 8
NOTE: Installer can use either
Quick Lock Connector or the RJ45
RJ45 Jack to connect the DSC3 with
CONNECTOR
camera, but not both.
