C2 to S86A

S86A/S86P MOH/Page Trigger Input
Use an RCA interconnect cable to connect the PAGE IN and MOH (Music On Hold) RCA jacks
from the S86A/P to the PG/DB OUT and MOH IN (MONO) jacks of the C2. The colors match
on the jacks - Red to Red, White to White.
Connect a 3.5mm mono interconnect cable, such as an ELAN IRIC from the SUM Trigger
Output to the S86A/P's PAGE TRIG IN.
NOTE: When connecting multiple S86A/P's use the PAGE TRIGGER OUT and PAGE
OUT connections as shown on the following page.
When using the Group Paging feature, the VIA!Net connection (not shown) MUST be made
between the S86A and the C2.
3.5mm Mono
Interconnect Cable
SUM Trigger Output
S86A responds to Page, all doorbells and
Trigger Inputs.
SUM PG
TRIGGERS
1
+ -
DB 1 DB 2
OUTPUTS
INPUTS
C2 Rear
© ELAN Home Systems 2009 • All rights reserved.
2
+ - + - + - + - + -
VCO

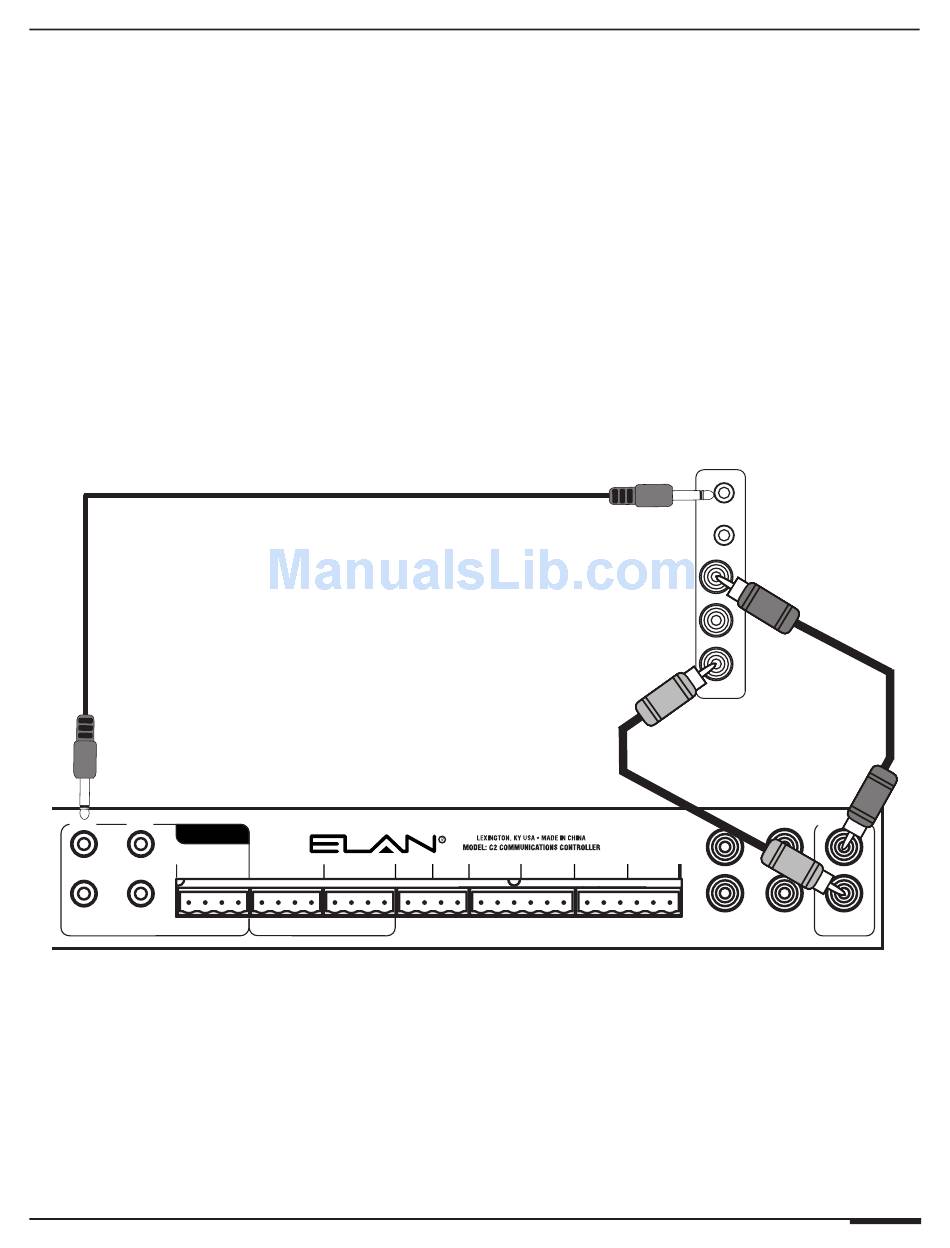

Figure 3-24: C2 To ELAN S86A interconnects
+12V GND NC C NO NC C NO NC C NO NC C NO
POWER RELAY 1 RELAY 2
C2
INSTALLATION MANUAL
S86A Rear
IN
PAGE
TRIGGER
OUT
PG IN
PG OUT
MOH OUT
RCA
Interconnect
Cable (Stereo)
IN
L
R
RELAY 3 RELAY 4 AUDIO LOOP
OUT
PG/DB OUT
MOH IN
(MONO)
