Chapter 2: C2 System Design Overview
Stand-Alone Stereo System Application
The C2 can be used in stand-alone applications without the use of an ELAN Multi-Room
Controller. Figure 2-1 below shows the C2 being utilized with a stereo receiver and a
dedicated tuner for Music-On-Hold. The scenario will provide complete Paging, Door Station
Communications, Music-On-Hold, and relay functions.
C2
POWER
© ELAN Home Systems 2009 • All rights reserved.
PAGE AUDIO, DOOR CHIME AUDIO,
ON-HOLD ALERT, OFF-HOOK ALERT
TELEMUTE
ELAN
VOLUME
CONTROLS
W/OVERRIDE
FEATURE
IN SUM PG
TRIGGERS
1 2
+ - + - + - + - + -
DB 1 DB 2
OUT OUTPUTS INPUTS VCO
VIA!NET
STEREO SYSTEM
(RECEIVER, PRE-AMP, POWER AMP)
DEDICATED TUNER FOR MUSIC-ON-HOLD

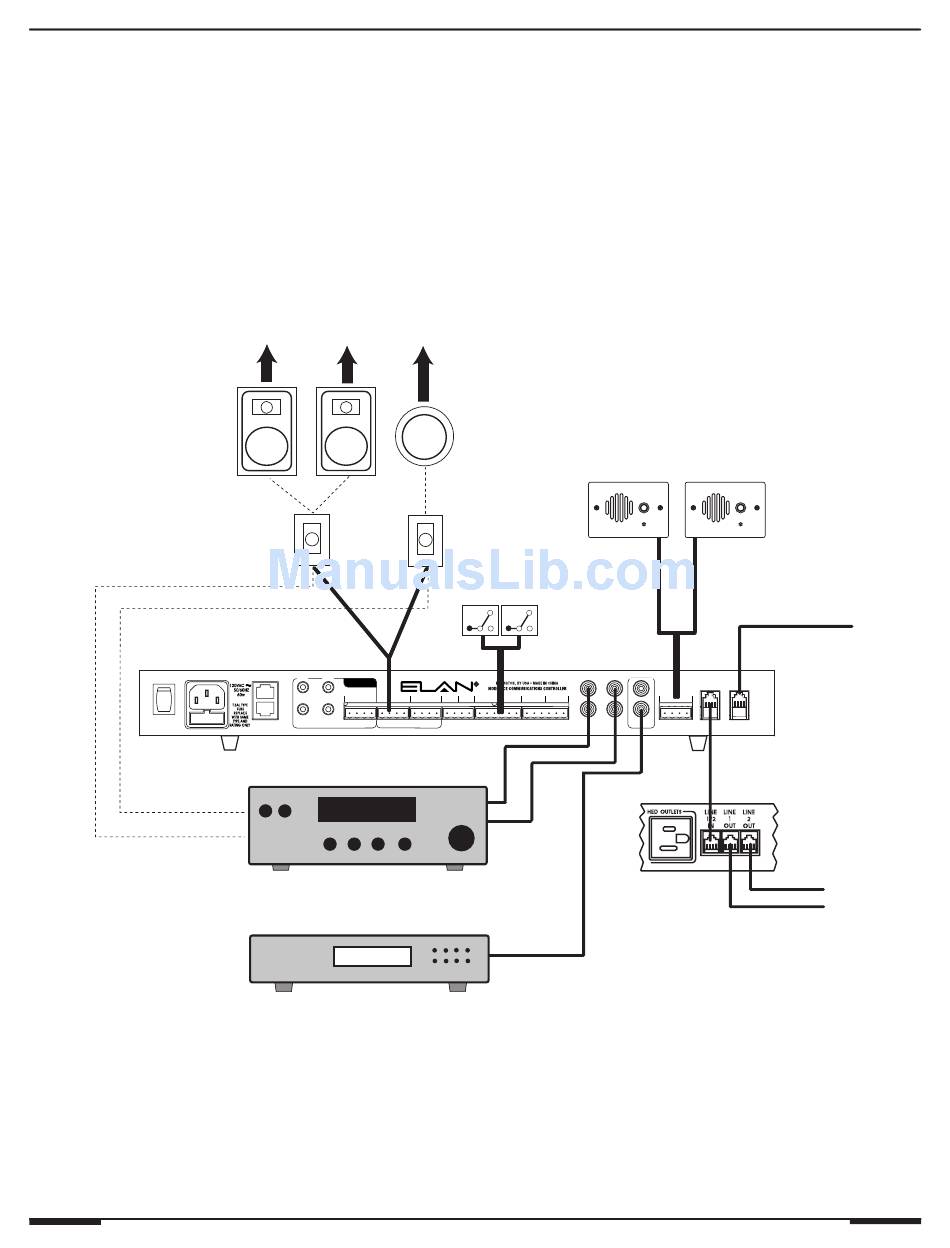

Figure 2-1: Stand-Alone Stereo Design Overview
