E L A N H O M E S Y S T E M S
C2
Blue
White/Blue
Orange
White/Orange
Green
Door Station
White/Green
Bus
Brown
White/Brown
DOOR LATCH
POWER SUPPLY
To 110V AC

C2 to Trigger Inputs

The C2 provides Cat-5 connections for basic two-wire doorbells or devices such as
driveway, motion or contact sensors, which can trigger door chimes or alerts and play them
over the house speakers.
Connect "+" and "-" from the triggering device to "+" and "-" of the TRIGGER INPUTS
connector as shown.
C2
1
NOTE: Trigger inputs 1 and 2 will always trigger the door chime assigned to Door
Station 1 and Door Station 2 respectively. Chimes can be changed to suit a
particular need.
© ELAN Home Systems 2009 • All rights reserved.
Cat-5
ELECTRONIC DOOR LATCH
RELEASE MECHANISM
- +

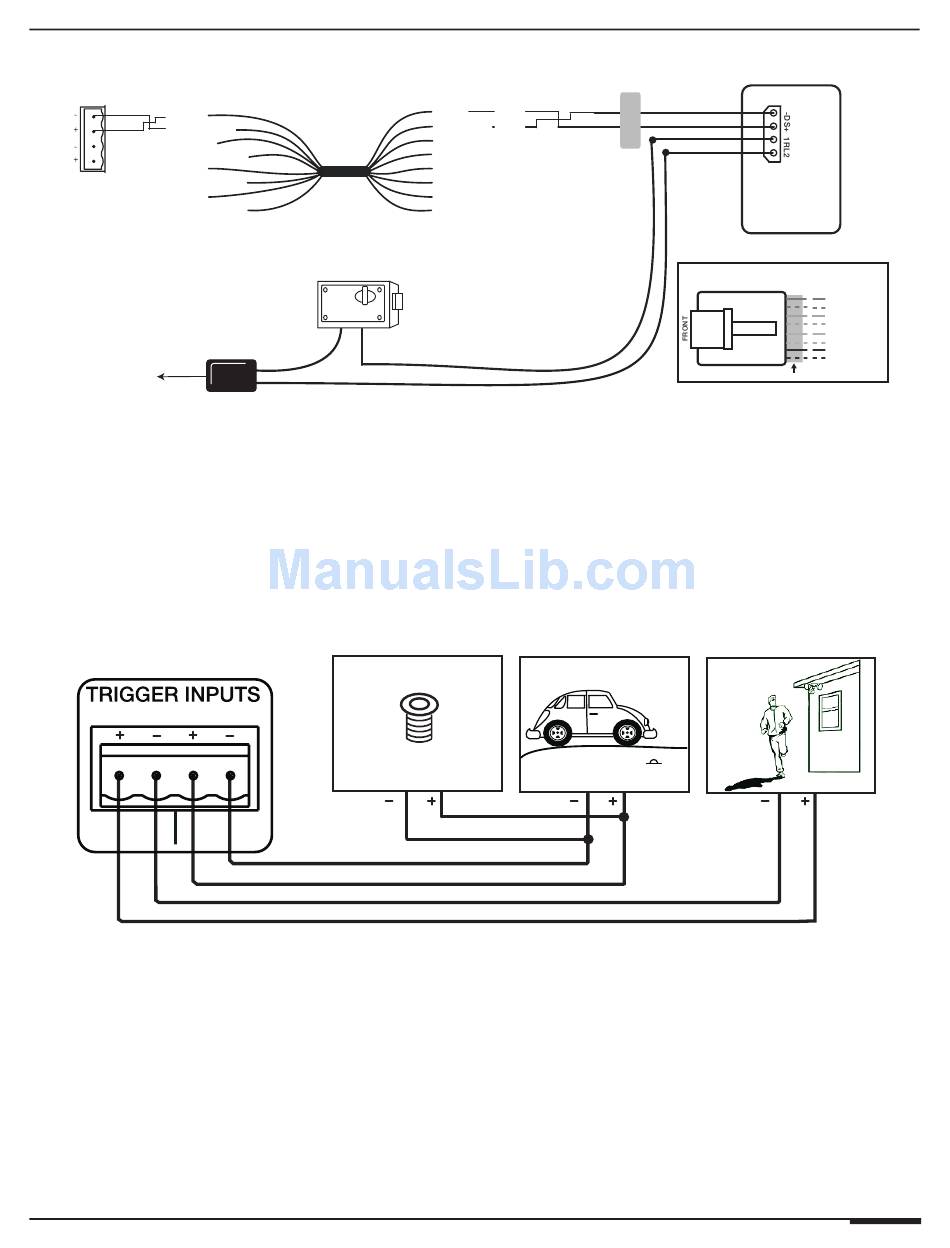

Figure 3-10: C2 to DSF3 or DSS3 Door Station Wiring Pinout
DOORBELL
2
Figure 3-11: C2 to Trigger Inputs Pinout
Butt Splice
Blue DS+
White/Blue
DS -
Orange
White/Orange
Green
White/Green
Brown
White/Brown
DRIVEWAY SENSORS
C2
INSTALLATION MANUAL
DSF3 or DSS3
DOOR STATION
Black
Red
White
Green
Standard ELAN RJ-45 Pin-Out
PIN # COLOR CODE
1 BLUE
2 WHITE/BLUE
3 ORANGE
4 WHITE/ORANGE
TAB
5 GREEN
6 WHITE/GREEN
7 BROWN
8 WHITE/BROWN
CABLE
MOTION SENSORS
Page 35
