New Construction - Elan C2 Communications Controller Installation Manual

C2
INSTALLATION MANUAL

New Construction

ELAN recommends a "home-run" wiring network using Cat-5 twisted-pair telephone wire
from each telephone wall jack location to an ELAN TH48 Telephone Expansion Hub.
C2
PG/DB OUT
+ - + -
MOH IN
DOOR STATION
(MONO)
BUS
Z•POWER
DUAL
TELEPHONE
WALLPLATES
4-TWISTED PAIR TELEPHONE WIRE (CAT-5)
Page 38
From Phone
Company
To
Security
PHONE TELCO
LINE 1/2 LINE 1/2
OUT IN

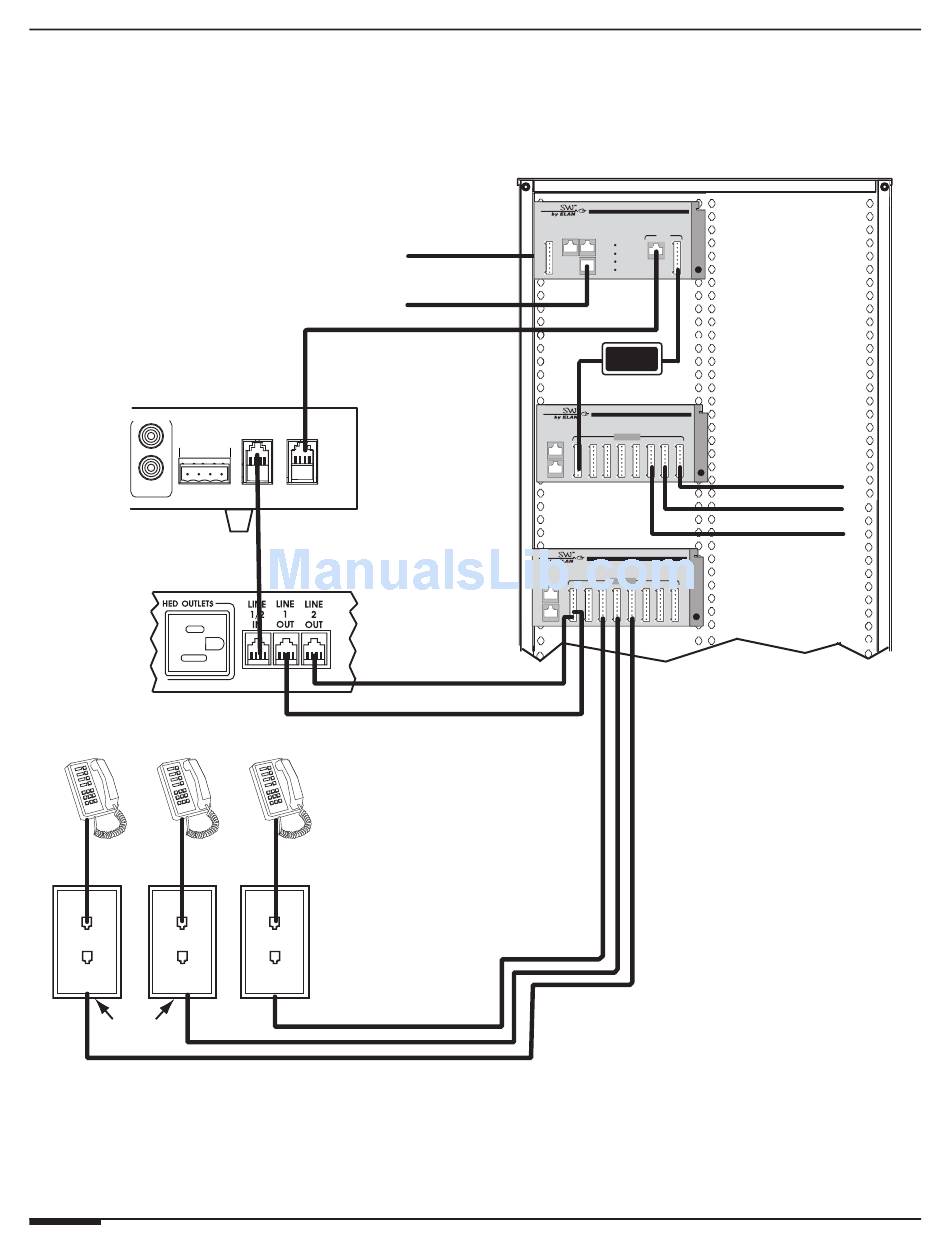

Figure 3-14: New Construction Application
E L A N H O M E S Y S T E M S
Telephone Master Hub w/Surge Protection
Model TH31SRG
(Surge, RJ31X, Disconnect )
Ports
From Disconnect Surge Telephone
In Out Warning
TELCO Output
R R
4 4 4
T T
R R
3 3 3
T T
R R
2 2 2
T T
RJ31X
R R
1
1 1
T T
Surge
Protector
Telephone Master Hub (4 Lines x 8 Phones)
Model TH48
Espansion
Telephones
Ports
R
4
In T
R
3
T
R
2
T
Out
R
1
T
Telephone Master Hub (4 Lines x 8 Phones)
Model TH48
Espansion
Telephones
Ports
R
4
T
In
R
3
T
R
2
T
Out
R
1
T
© ELAN Home Systems 2009 • All rights reserved.
TH31SRG
4-Line TELEPHONE
HUB with
Surge Protection
TH48 TELEPHONE
EXP ANSION HUB
SATELLITE TV
MODEM LINE
F AX LINE
TH48 TELEPHONE
EXP ANSION HUB
