Connecting The C2 To A Multi-Line Telephone system

The C2 communication features (paging, door speaker communications, relay activation,
etc.) can be accessed from both Line 1 and Line 2. The TELEMUTE feature is available on both
C2 lines.
NOTE: Phone-to-phone intercom (#7,0) will only work with phones on the same
line. For example, you can not pick up Line 1 and intercom to someone on
Line 2.
Orange
Wh/Org
2 lines from
telepone
company
Cat-5
Cat-5
4 Pair UTP
ELAN recommends that telephone RJ-45
jacks be wired to the T568A standard.

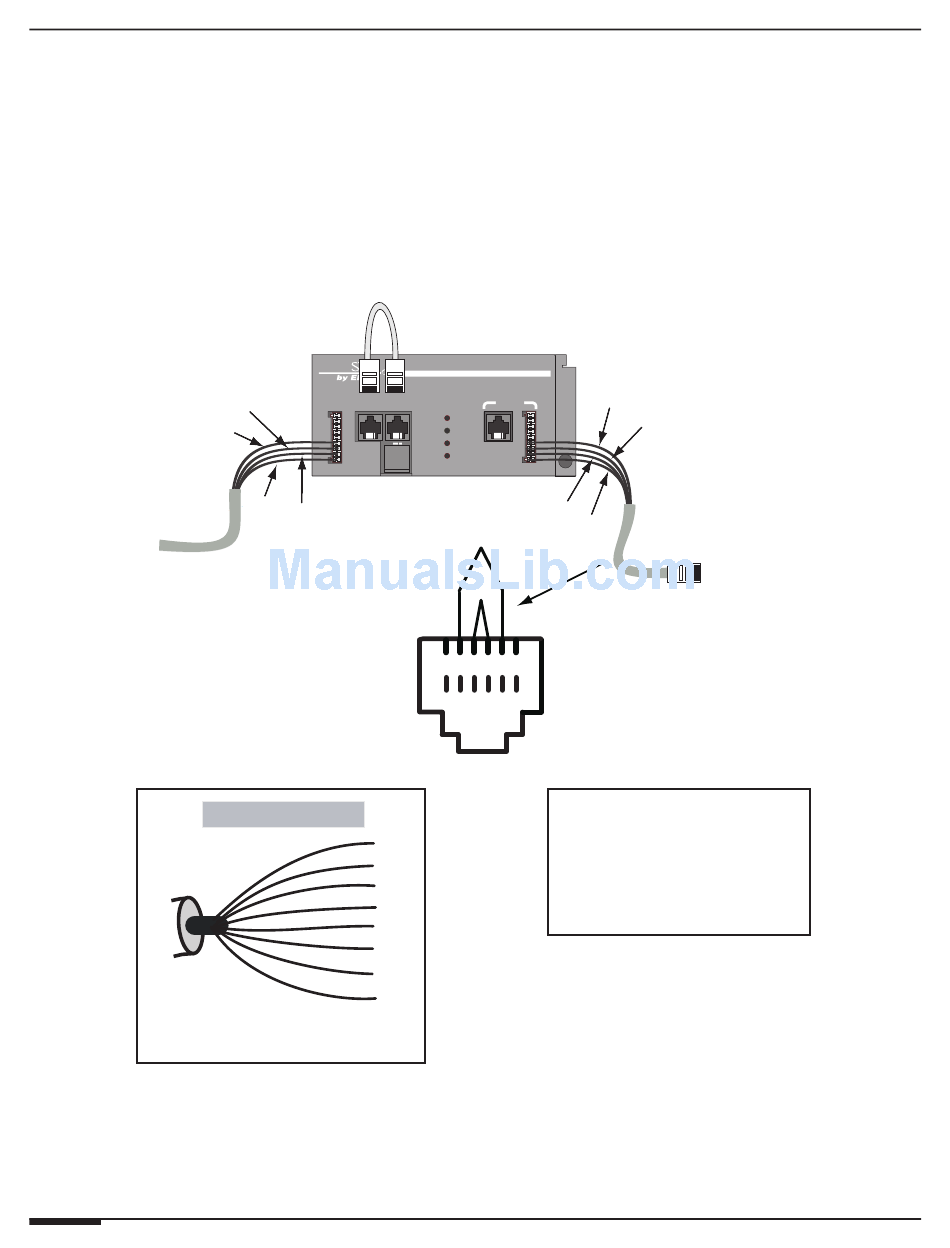

Figure 3-16: Connecting Telephone Service to the TH31 SRG Telephone Master Hub
Page 40
Cat-5 Jumper
(included)
From Disconnect
Telco In
R
4
T
R
3
T
R
2
T
R
RJ31X
1
T
Blue
Wh/Blu
Wire Color Codes
RING
Brown
TIP
Pair 4
Wh/Brown
RING
Green
Pair 3
TIP
Wh/Green
RING
Orange
Pair 2
TIP
Wh/Orange
RING
Pair 1
Blue
TIP
Wh/Blue
TH31 SRG TELEPHONE
MASTER HUB
Te le p ho ne M a ste r Hub ( Surg e , R J -31X, D isc o nne c t)
M o d e l TH 3 1 SR G
Surge Telephone
Out Warning Output
R
4
T
R
3
T
R
2
T
R
1
T
Blue
Wh/Blu
Line 1
Line 2
T T R T R R
1 2 3 4 5 6
RJ14 Connection
Line 1 TIP - White/Blue
Line 1 RING - Blue
Line 2 TIP - White/Orange
Line 2 RING - Orange
© ELAN Home Systems 2009 • All rights reserved.
E L A N H O M E S Y S T E M S
Orange
Wh/Org
2 lines to
TELCO on COM2
Cat-5
RJ11
