Standalone Connections (Without an ELAN Multi-Room Controller)
Pre-Amp/Amp
Use stereo RCA patch cables to connect the C2's AUDIO LOOP IN to the Pre-Amp's Main
Outputs as shown. Connect the AUDIO LOOP OUT jacks to the Power Amp's Main Inputs. This
allows the C2's Page and Doorbell signals to be heard through the speakers connected to
the power amplifier.
Receiver Based System
Use stereo RCA patch cables to connect the C2's AUDIO LOOP IN to the Receiver's Main
Outputs as shown. Connect the AUDIO LOOP OUT jacks to the Receiver's Main Inputs. This
allows the C2's Page and Doorbell signals to be heard through the speakers connected to
the receiver.
Page 42
PRE-AMP MAIN OUTPUTS
L
R

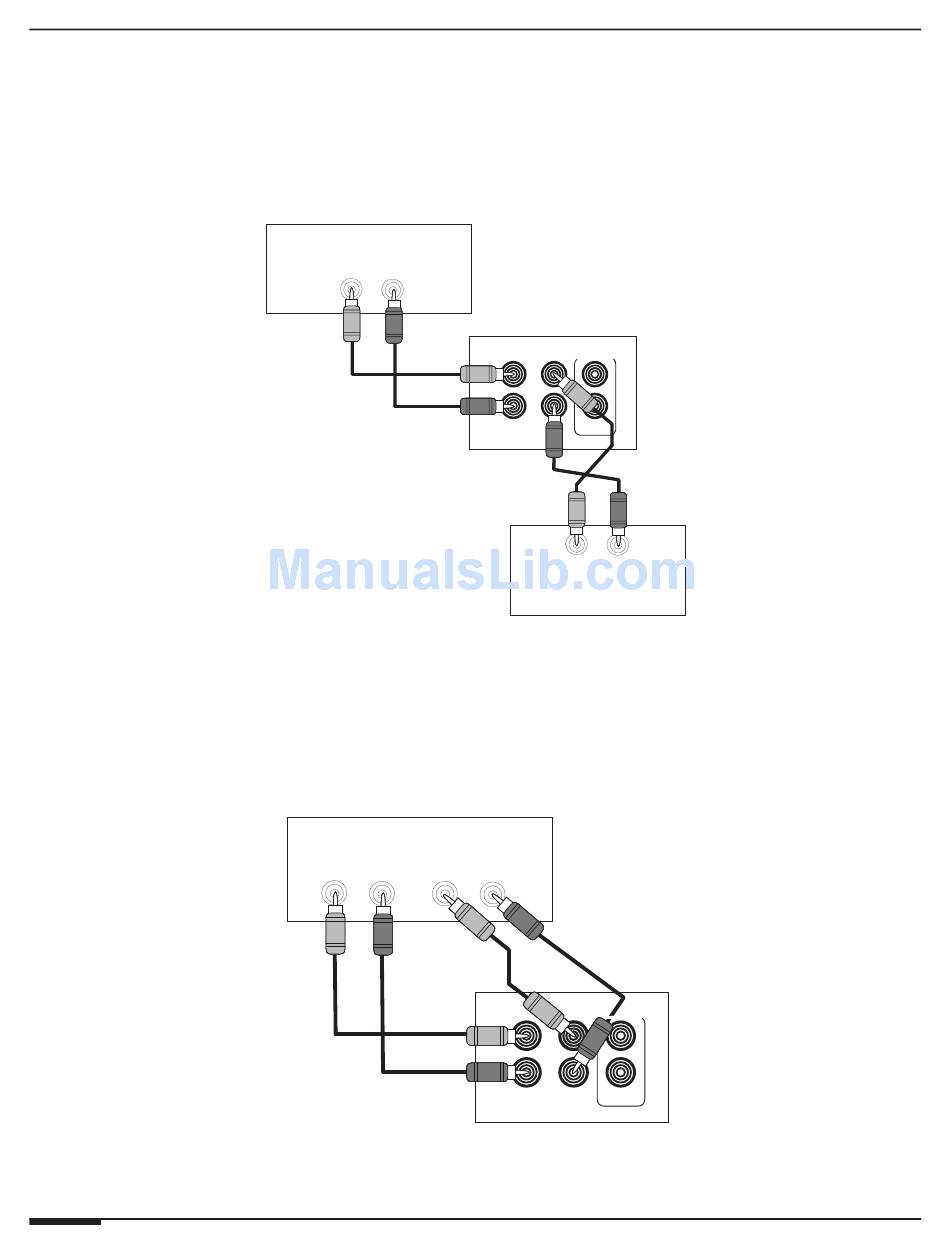

Figure 3-18: C2 to a Pre-Amp/Power Amp Stereo System
Stereo Receiver
Pre Out
L
R
Figure 3-19: C2 to a Stereo Receiver Pre-Out Main-In Jacks
IN
OUT
PG/DB OUT
L
R
MOH IN
AUDIO LOOP
(MONO)
L
R
POWER AMP INPUTS
Main In
L
R
IN
OUT
PG/DB OUT
L
R
MOH IN
AUDIO LOOP
(MONO)
