DSF3 & DSC3 Installation
Both the DSF3 and DSC3 Door Stations are installed using the DBK1000 Door Station/Camera
Rough-In Bracket (sold separately).
In order to install the DSC3 or DSF3 Door Station in the DBK1000 the door station trim
brackets must be mounted to the front of the DBK1000 (see Figure B-6). Note the orientation
of the trim bracket's inner flanges
The DSC3 ships ready for horizontal installation. Should you choose to mount the DSC3
vertically, the DBK1000 must also be mounted vertically and the camera module must be
rotated 90 degrees to orientate the camera display (see Figure B-7).
Whether mounted horizontally or vertically, the Camera Wire should always protrude from the
upper right corner of the camera module when the DSC3 is viewed from the rear.
Page 64
DSC3 OR DSF3

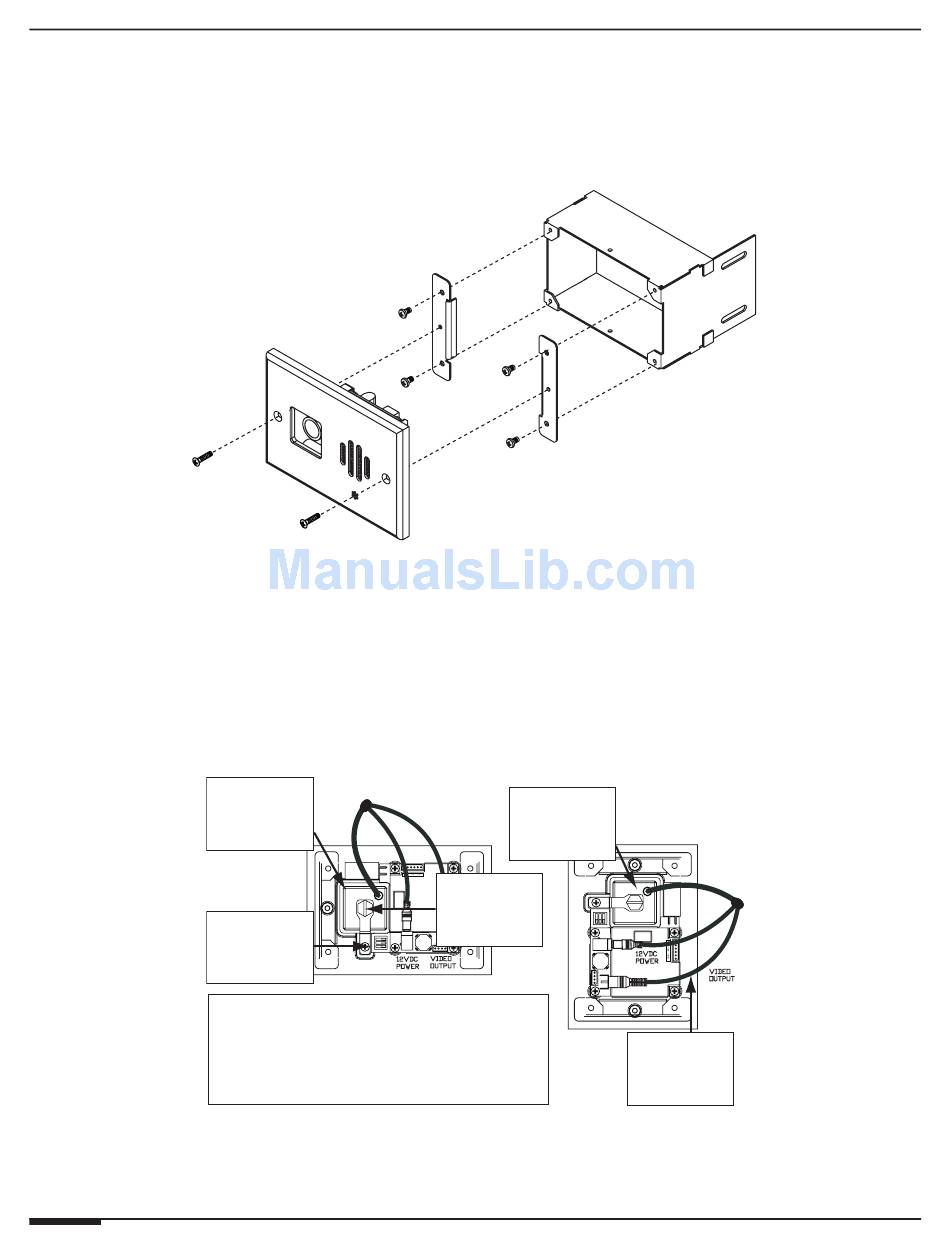

Figure B-6: Mounting the DSC3 or DSF3 Trim Brackets
Camera
Module
Camera
Bracket
NOTE: Regardless of the DSC3's orientation,
always make sure the wire protruding from the
rear of the camera module is located in the
upper right corner when viewed from the rear!
Figure B-7: Camera Wire Orientation
E L A N H O M E S Y S T E M S
TRIM BRACKETS
Camera
Module
Set
Screw
© ELAN Home Systems 2009 • All rights reserved.
DBK 1000
DOOR STATION
ROUGH-IN BRACKET
Camera
Wire
