Quick Reference Telephone Features Guide

PRINTER'S INSTRUCTIONS: P/N: 9900870 RevA - INK 2/2: BLACK + PMS167/ BLACK + PMS167 - MATERIAL: 230G GLOSS ART - SIZE: 3.75'' X 8.5'' - SCALE: 1-1
Included with the C2 Communications Controller, you will find two "Quick Reference"
Must Be RoHS Compliant
Telephone Feature Cards.
The C2's phone features are easy to remember and use, but these guides will come in
handy for those who are unfamiliar with the system or as a refresher.
The C2 also gives you the capability of activating up to four low voltage relays from your
telephone keypad. These relays can be assigned to any home automation device of your
choosing. We have left you a labeling space beside each relay command on the bottom of the
Quick Reference Card.
Page 14
P/N 9900870 RevA

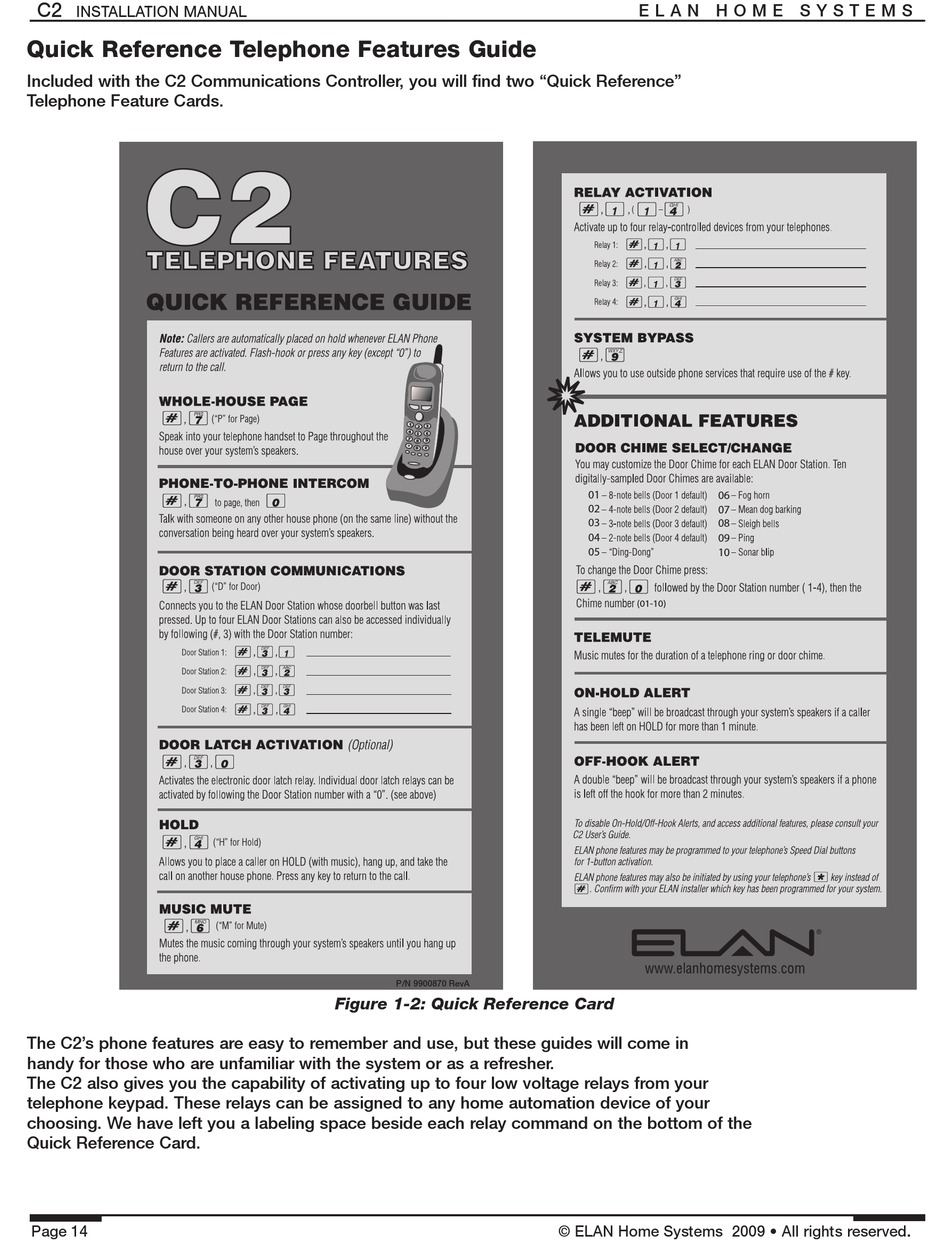

Figure 1-2: Quick Reference Card
