C2 To S128P

S128P MOH/Page Trigger Input

Use an RCA interconnect cable to connect the PAGE IN and MOH (Music On Hold) RCA jacks
from the S128P to the PG/DB OUT and MOH IN (MONO) jacks of the C2. The colors match
on the jacks- Red to Red, White to White.
Connect a 3.5mm mono interconnect cable, such as an ELAN IRIC from the SUM Trigger
Output to the S128P's PAGE TRIG IN.
NOTE: When connecting multiple S128P's use the PAGE TRIGGER OUT and PAGE
OUT connections as shown on the following page.
3.5mm Mono
Interconnect Cable
SUM Trigger Output
S128P responds to Page, all doorbells and
Trigger Inputs.
SUM PG
TRIGGERS
1
+ -
DB 1 DB 2
OUTPUTS
INPUTS
C2 Rear
© ELAN Home Systems 2009 • All rights reserved.
2
+ - + - + - + - + -
VCO

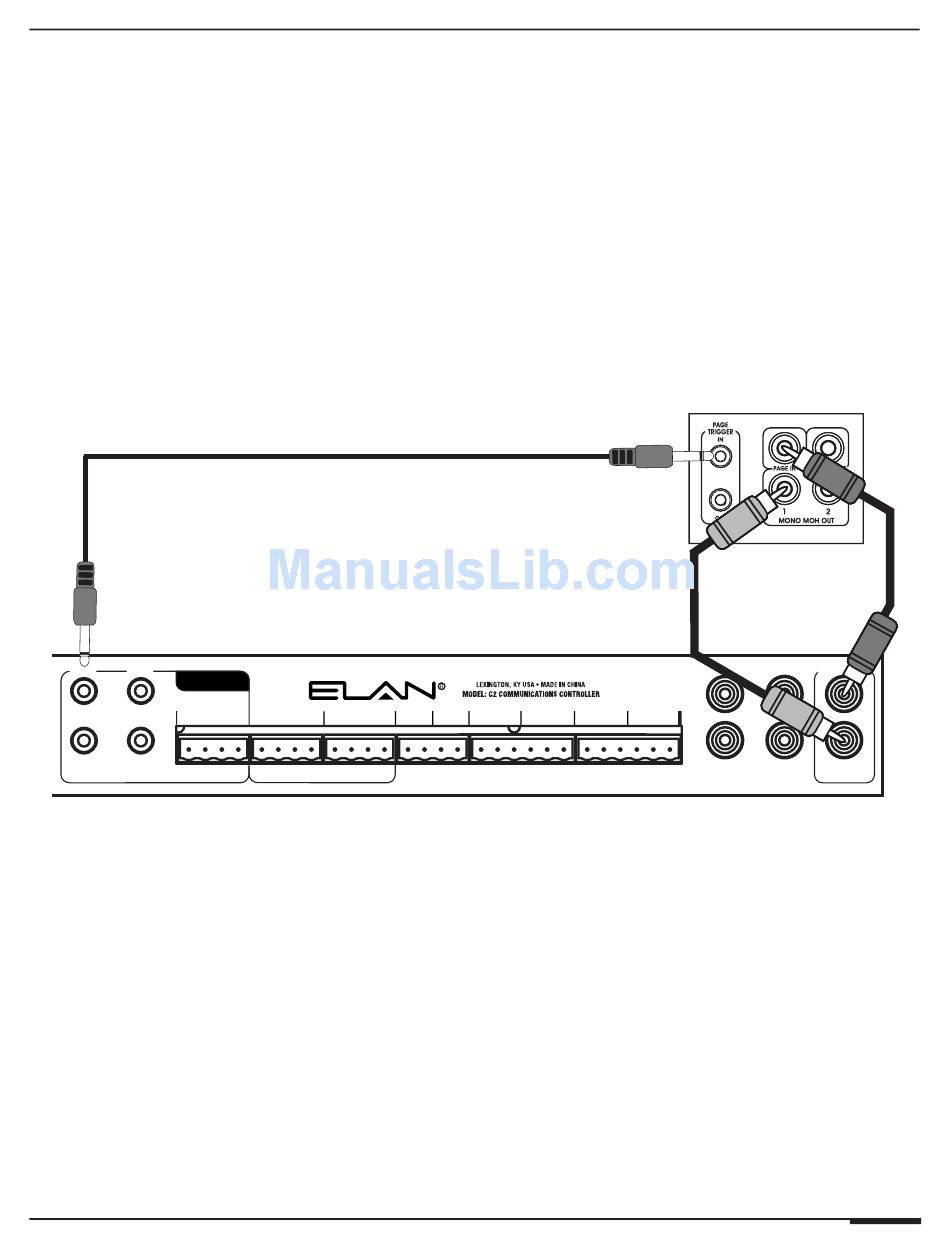

Figure 3-24: C2 To ELAN S128P interconnects
+12V GND NC C NO NC C NO NC C NO NC C NO
POWER RELAY 1 RELAY 2
C2
INSTALLATION MANUAL
S128P Rear
Interconnect
Cable (Stereo)
IN
L
R
RELAY 3 RELAY 4 AUDIO LOOP
RCA
OUT
PG/DB OUT
MOH IN
(MONO)
Page 49
