Stereo Receiver - Tape Loop

Use stereo RCA patch cables to connect the C2's AUDIO LOOP IN to the Receiver's Tape
Loop Outputs as shown. Connect the AUDIO LOOP OUT jacks to the Receiver's Tape Loop
Inputs. This allows the C2's Page and Doorbell signals to be heard through the speakers
connected to the receiver.
NOTE: Only applicable when Tape Loop is active and is dependent on receiver
volume level, unless auto-sense ability is built in to the receiver.
Stereo Receiver
Tape Out
L

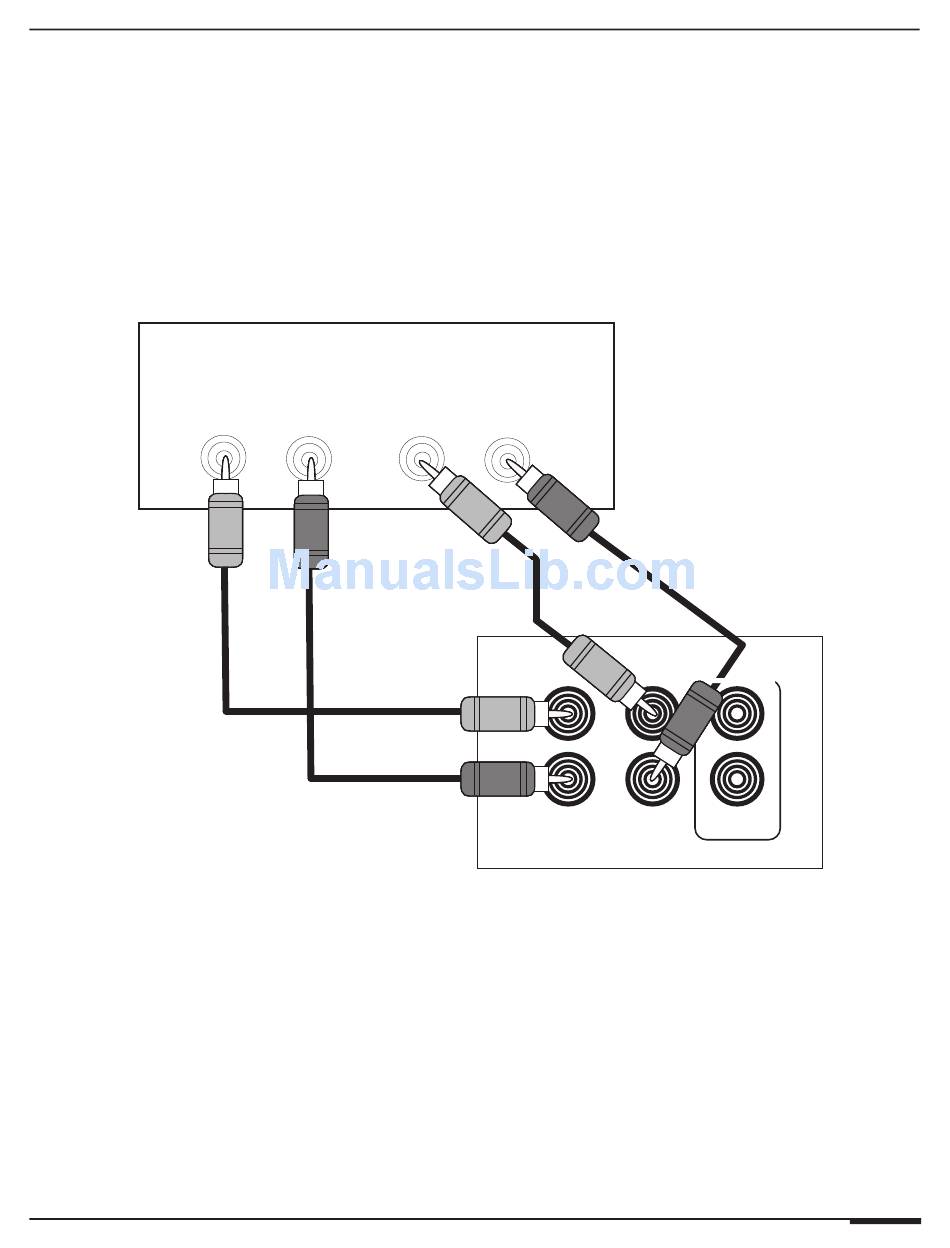

Figure 3-20: C2 to a Stereo Receiver Through the Tape In/Tape Out Jacks
© ELAN Home Systems 2009 • All rights reserved.
Tape In
R
L R
IN OUT
L
R
AUDIO LOOP
C2
INSTALLATION MANUAL
PG/DB OUT
MOH IN
(MONO)
