S128P Design Application

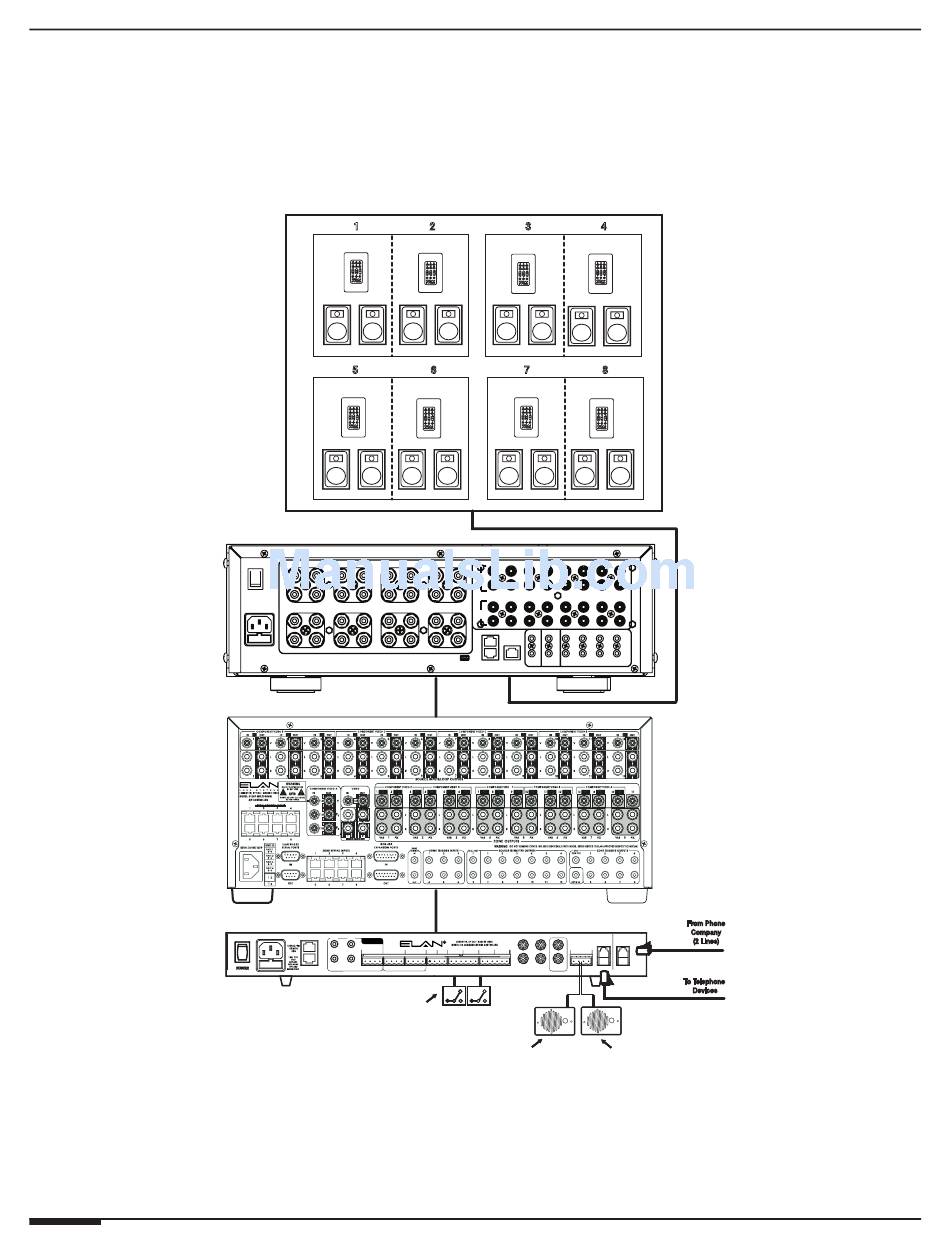

The C2 interfaces easily with the S128P Multi-Room A/V Controller. Figure 2-4 shows
a S128P using variable outputs, along with a D16 Digital Power Amplifier to control eight
zones. In this scenario, volume controls are not needed since variable outputs are being used
from the S128P.
