C2 To Incoming CO & Phones
Using an RJ-14 connector, connect TIP and RING from the incoming telephone service to the
TELCO LINE1/2 connector as shown. Make identical connections from the PHONES LINE1/2
connector to the telephone distribution point. Make sure to use the four inner pins of the RJ14
connector exactly as shown in the drawing.
CAUTION: ALWAYS remove power to the C2 along with any other
electronics equipment prior to making any connections to or from the
C2. Set the Power Switch on the back of the C2 to the OFF
position prior to making connections.
Line 2
Line 1
T
T
R R R
T
1 2 3 4 5 6
PHONE
TELCO
LINE 1/2
LINE 1/2
OUT
IN

C2 to Door Station Connections

The C2 is designed to work with ELAN DSC3, DSF3, and DSS3 Door Stations to provide
doorbell push button and door station communications functionality. Use Cat-5 for these
connections. Note that only two wires are used to connect between the C2 and the door station.
The remaining wires of the Cat-5 are used for the DSC3's camera functions (the camera does not
interact with the C2).
CAUTION: ALWAYS remove power to the C2 along with any other
electronics equipment prior to making any connections to or from the
C2. Set the Power Switch on the back of the C2 to the OFF
position prior to making connections.
NOTE: If using a VBRM Video Balun, Cat-5 network cable is recommended to be
used. IF a video balun is not used ELAN recommends 18 AWG wire. For
DSC3 runs over 500 feet you must double wire the power inputs.
© ELAN Home Systems 2009 • All rights reserved.
Telephone Wiring Standard
Pin
RJ25
RJ14
RJ11
1
X
2
X
X
3
X
X
X
4
X
X
X
5
X
X
6
X
Wh/Blu
TIP
RING
Cat-5
Wh/Org
TIP
Orange
RING
RJ14
Wh/Blu
TIP
Connectors
RING
Cat-5
Wh/Org
TIP
Orange
RING

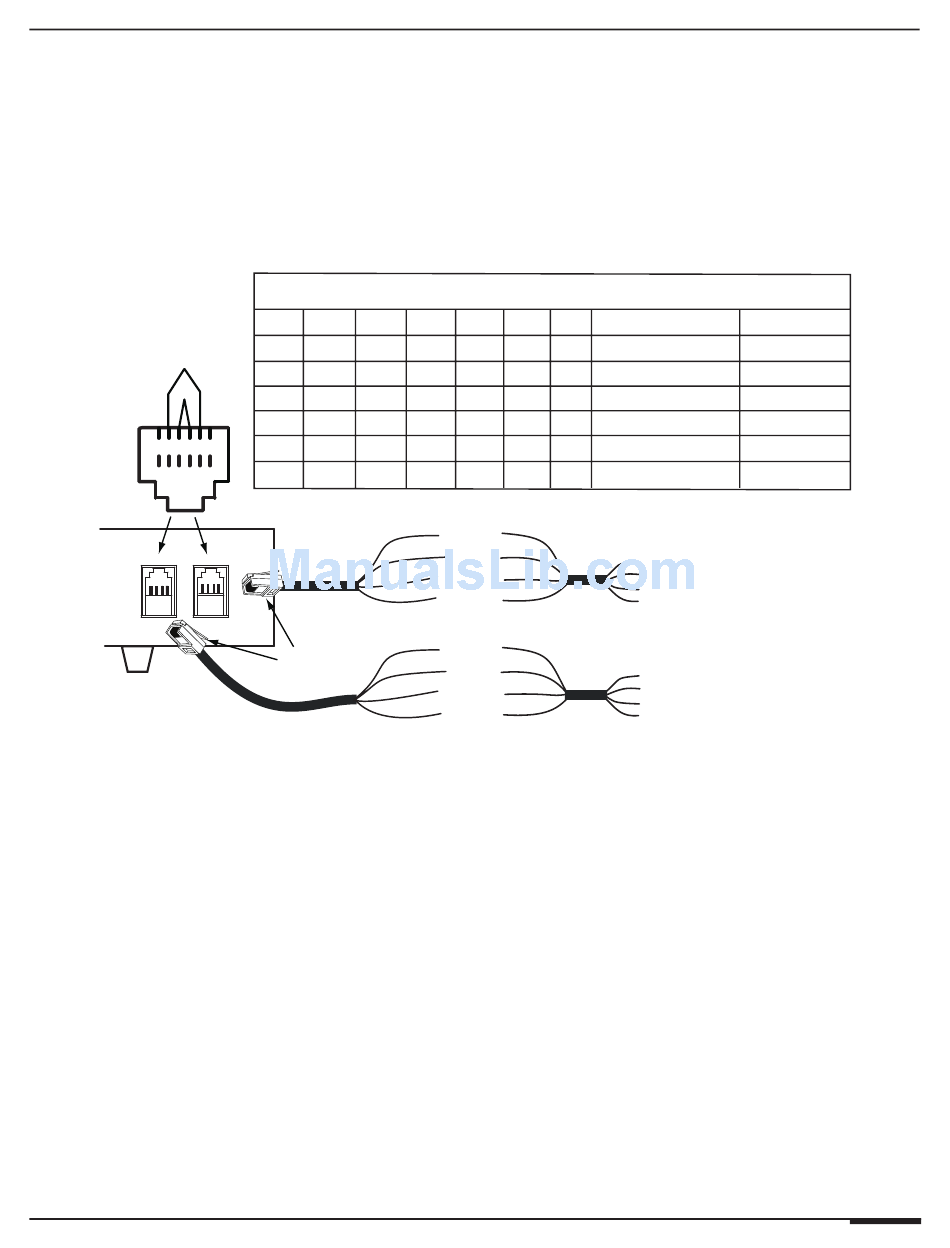

Figure 3-7: C2 to TELCO and PHONES
