Chapter 3: C2 System Connections Overview

This chapter shows C2 Communications Controller system connections.

System Control

Cat-5 cable should be used for all C2 system connections including incoming phone lines,
input and output triggers, ELAN Door Stations (including camera connections), volume
controls with override and relays.
CAUTION: ALWAYS remove power to the C2 along with any other
electronics equipment prior to making any connections to or from the
C2. Set the Power Switch on the back of the C2 to the OFF
position prior to making connections.

C2 Rear Panel Connections

The following section describes connections to the C2 Communications Controller.
C2 to VMOS or VSOS Volume Controls
When connecting rotary Volume Controls with Override to the C2, simply connect "+" from
the C2's VCO connector to "VC+" of the Volume Control. Connect "-" from the C2's
VCO connector to "VC-" of the Volume Control. Cat-5 is typically used for this purpose.
CAUTION: ALWAYS remove power to the C2 along with any other
electronics equipment prior to making any connections to or from the
C2. Set the Power Switch on the back of the C2 to the OFF
position prior to making connections.
C2
Blue
White/Blue
Orange
White/Orange
Green
White/Green
Brown
White/Brown

C2 to Electronic Volume Control

When connecting the C2 directly to Electronic Volume Controls, splice Cat-5 onto an RJ-45 to
pigtail connector. Connect the Blue Override (pin 1) wire to "+" of the C2's VCO connector.
Connect the Brown Ground wire (pin 7) to the "-" of the C2's VCO connector. Plug the RJ-45
directly into the RJ-45 connector on the back of the Electronic Volume Control.
© ELAN Home Systems 2009 • All rights reserved.
Override
N/C
N/C
N/C
N/C
N/C
Ground
N/C

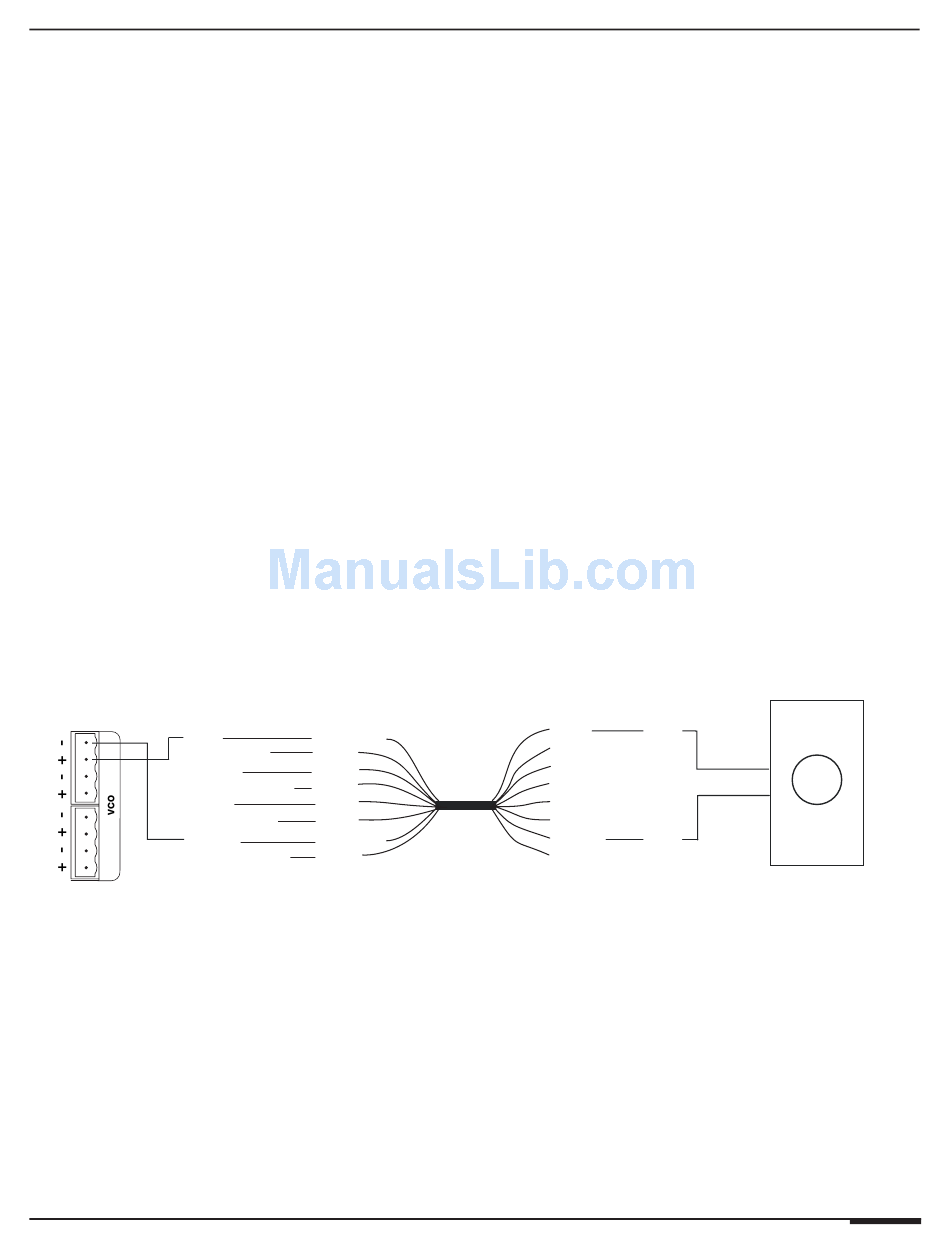

Figure 3-1: C2 to VMOS or VSOS Volume Controls Wiring Pinout
Blue
White/Blue
Orange
White/Orange
Cat-5
Green
White/Green
Brown
White/Brown
C2
INSTALLATION MANUAL
VMOS or VSOS
Volume Control
VC+
VC+
VC -
VC -
