C2 Front Panel DIP Switch Settings

POUND"#"/STAR "*" - Selects the telephone button press (# or *) you would like to use as
the initiator for all ELAN telephone communication/ relay features (i.e. #,P for PAGE, or *,P for
PAGE. The default is #.
DEBOUNCE - Selects either 65 milliseconds or 85 milliseconds. Used to eliminate intermittent
"drop-outs" during a phone conversation. These "drop-outs" (usually 3 seconds in duration)
are caused when certain speaking voices, usually female, produce frequencies similar to
those produced when a "#" or "*" button is pressed on a touch-tone phone. Should you
experience this symptom, move the dip switch from 65 ms to 85 ms. The default is 65 ms.
FLASH HOOK - Select either .75 seconds or 1.25 seconds. The default is .75 seconds. Used
in homes with CALL WAITING, increase FLASH HOOK time from .75 seconds to 1.25 seconds
if you experience either of the following symptoms:
1) Trouble accessing a second call while on the line with the first call.
2) Losing the first call after accessing a second call.
Page 22
DIP SWITCHES
1 2 3 4 5
*
#

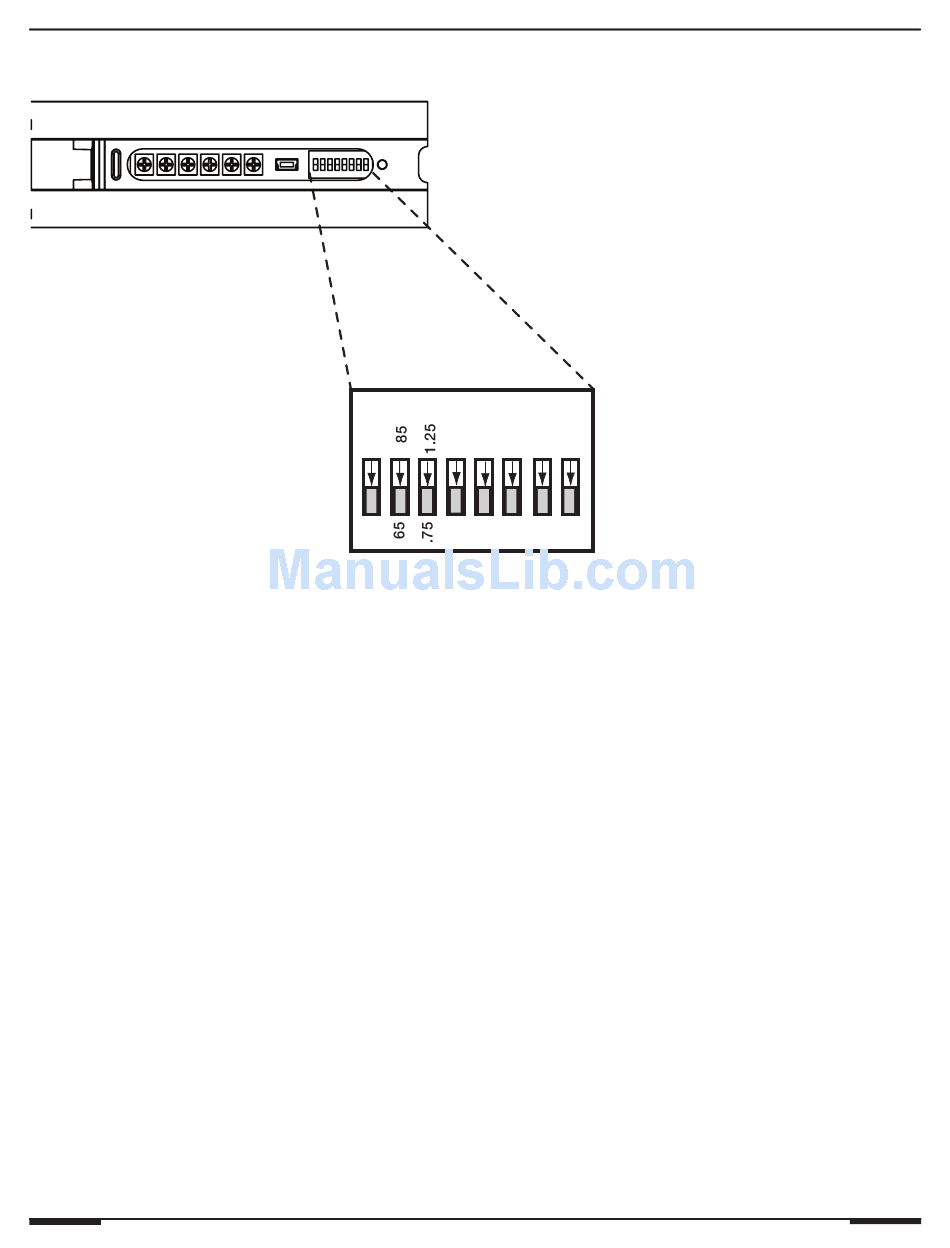

Figure 1-7: Front Panel DIP Switch Setting
E L A N H O M E S Y S T E M S
1 - #/* POUND/STAR
6 7 8
2 - 65/85 DEBOUNCE
3 - .75/1.25 FLASHOOK
4 - future use
5 - future use
6 - future use
7 - future use
8 - future use
© ELAN Home Systems 2009 • All rights reserved.
