S66A Design Application - Elan C2 Communications Controller Installation Manual

C2
INSTALLATION MANUAL

S66A Design Application

The C2 will provide all communication functions when used with an ELAN S66A

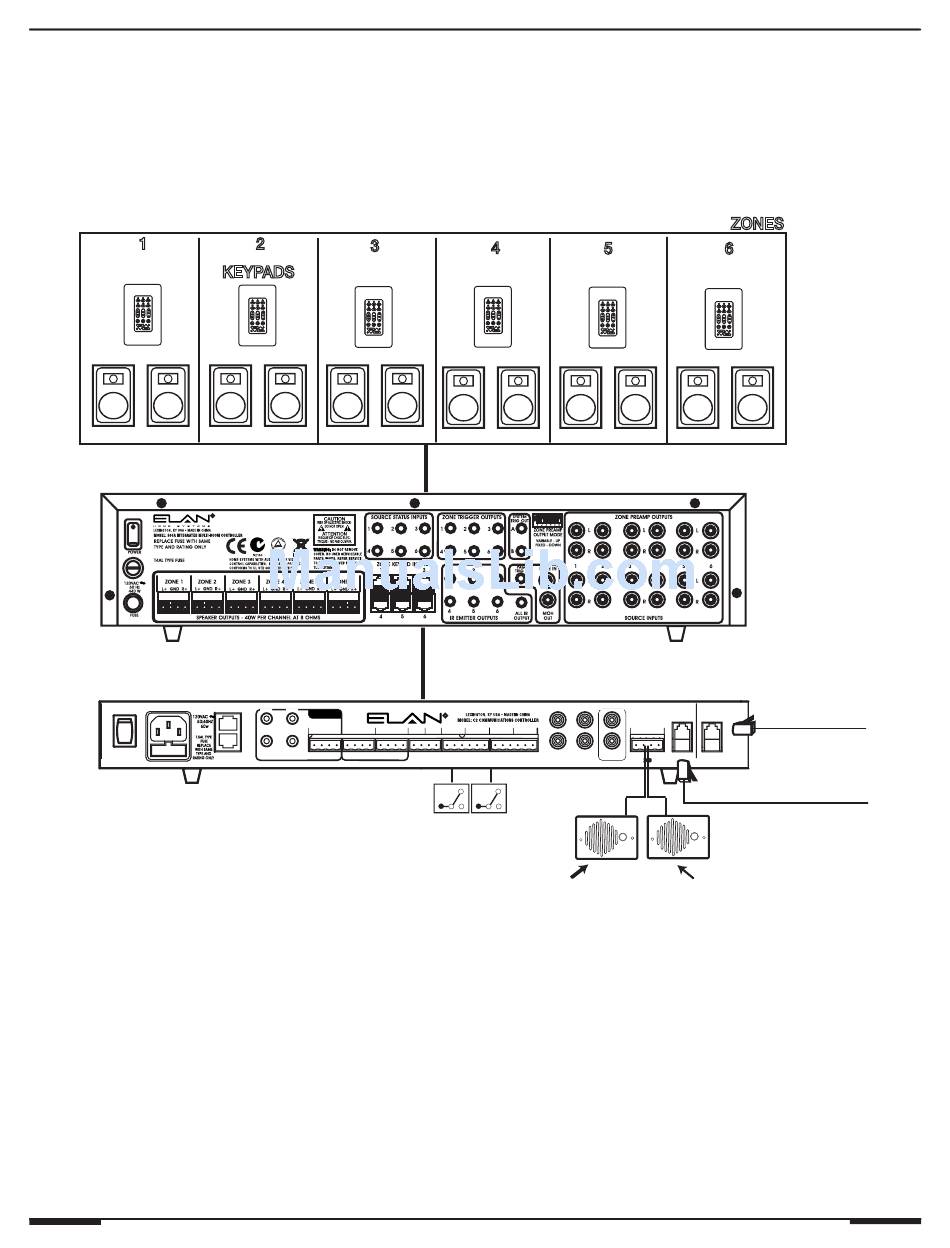

Integrated Multi-Zone Controller. Figure 2-2 below shows an ELAN S66A, and a C2 in a six
zone system.
NOTE: Volume Controls with Override are NOT required in this application.
1
ZONE 1
POW ER
LOW VOLTAGE RELAYS
FOR LIGHTING, SPRINKLERS,
GARAGE DOOR, ETC
Page 24
2
3
KEYPADS
ZONE 2 ZONE 3
C US
IN SUM PG
TRIGGERS
1 2
+ - + - + - + - + - + -
DB 1 DB 2
OUT OUTPUTS
INPUTS VCO
VIA!NET
Figure 2-2: S66A Design Overview
4
ZONE 4
ZONE 5
C2 COMMUNICATION CONTROLLER
IN OUT
L
+12V GND NC C NO NC C NO NC C NO NC C NO
R
POW ER RELAY 1 RELAY 2 RELAY 3 RELAY 4 AUDIO LOOP
ELAN
DOOR STATION #1
© ELAN Home Systems 2009 • All rights reserved.
E L A N H O M E S Y S T E M S
ZONES
5 6
ZONE 6
S66A
PG/DB OUT
PHONE TELCO
LINE 1/2 LINE 1/2
+ - + -
MOH IN
DOOR STATION OUT IN
(MONO)
BUS
ELAN
DOOR STATION #2
From Phone
Company
(2 Lines)
To Telephone
Devices
