Typical Telephone Service Connections

Connecting Telephone Service & Telephone Surge Protection to the System
Connect the TIP and RING for each incoming phone line from the telephone company to the
TH31SRG Telephone Master Hub using a 110 punchdown tool. Up to 4 incoming lines can be
attached to the TH31SRG.
ELAN recommends using Cat-5 to make punchdowns to TH31SRG Telephone Master Hub.
See Figure 3-12 for wire punchdown color coding
NOTE: The C2 supports up to 2 incoming lines.
Cat-5 Jumper
(included)
Orange
Wh/Org
2 lines from
Blue
telepone
Wh/Blu
company
Cat-5

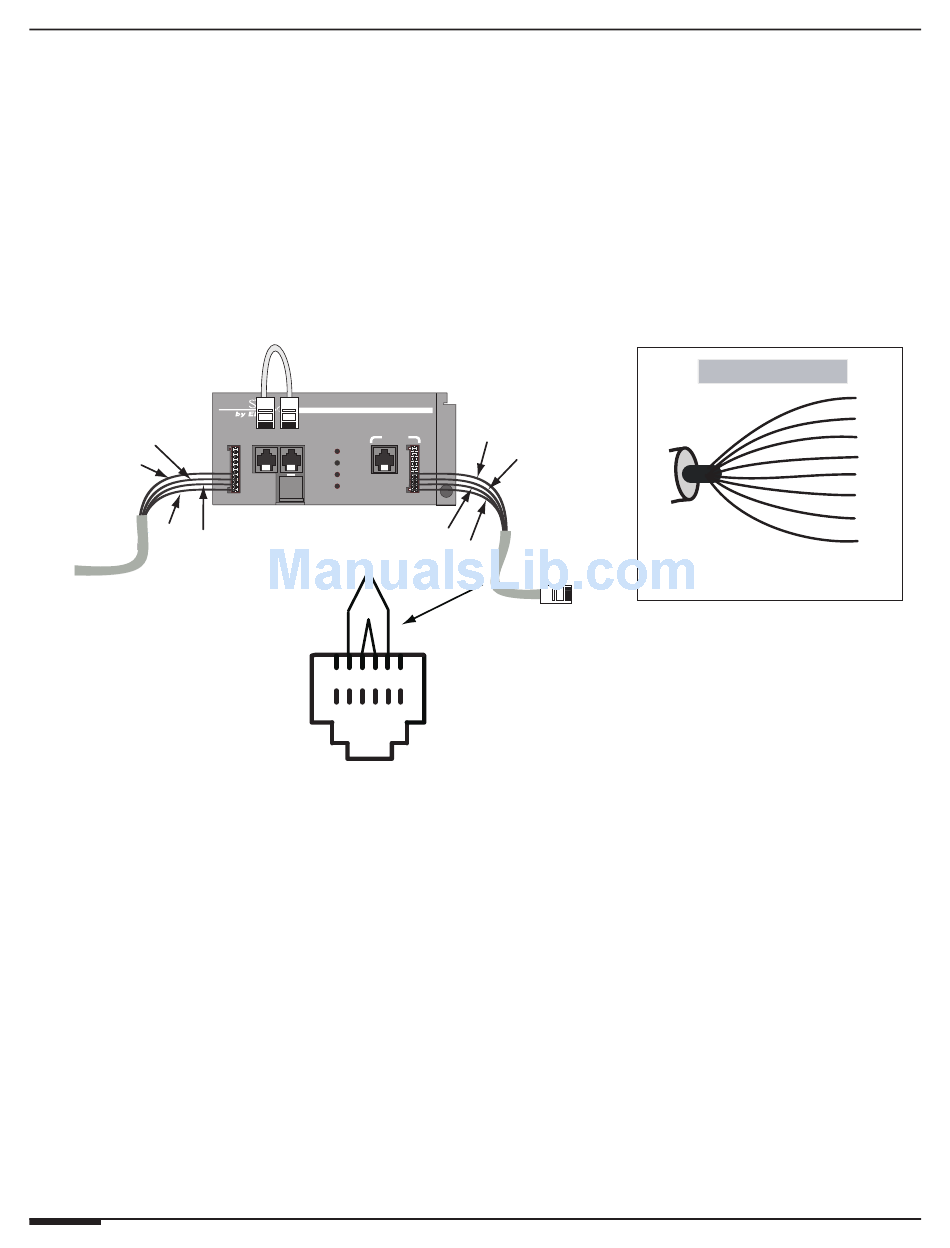

Figure 3-12: Connecting Telephone Service to the TH31SRG Telephone Master Hub
The ELAN C2 is compatible with most touch-tone telephones and multi-line telephone
systems. Certain telephones that use the both # or * buttons for other functions may not be
compatible.
The ELAN C2 has a Ringer Equivalency Number (REN) of 0.7A. The maximum number of
telephones that may be connected in a home is dependent on the Ringer Equivalency Voltage
being provided to the home by the phone company and the Ringer Equivalency Number of
each telephone in the home. When added together, the REN of all the house phones plus the
C2 should not exceed 5 per telephone line.
Exceeding the Ringer Equivalency Voltage provided by the telephone company may result in
intermittent or no ring-in or a call from your local carrier. Ring boosters are available from your
phone company for a nominal fee. ELAN strongly recommends the use of telephone line surge
protection between the incoming phone line and the C2 Phone Input.
Page 36
TH31 SRG TELEPHONE
MASTER HUB
Te le p ho ne M a ste r Hub ( Surg e , R J -31X, D isc o nne c t)
M o d e l TH 3 1 SR G
From Disconnect Surge Telephone
Telco In Out Warning Output
R
4
T
R
3
T
R
2
T
R
RJ31X
1
T
Line 1
Line 2
T T R T R R
1 2 3 4 5 6
RJ14 Connection
Orange
Wh/Org
R
4
T
R
3
T
R
2
T
R
1
T
Blue
Wh/Blu
2 lines to
TELCO on COM2
Cat-5
RJ11
© ELAN Home Systems 2009 • All rights reserved.
E L A N H O M E S Y S T E M S
Wire Color Codes
Cat-5
Pair 4
4 Pair UTP
Wh/Brown
Pair 3
Wh/Green
Pair 2
Wh/Orange
Pair 1
ELAN recommends that telephone RJ-45
jacks be wired to the T568A standard.
Line 1 TIP - White/Blue
Line 1 RING - Blue
Line 2 TIP - White/Orange
Line 2 RING - Orange
RING
Brown
TIP
RING
Green
TIP
RING
Orange
TIP
RING
Blue
TIP
Wh/Blue
