Figure 51. Kinetics Data Acquired Based On Masked Images Shown In Figure 50 - Princeton Instruments ProEM+ EMCCD User Manual

88

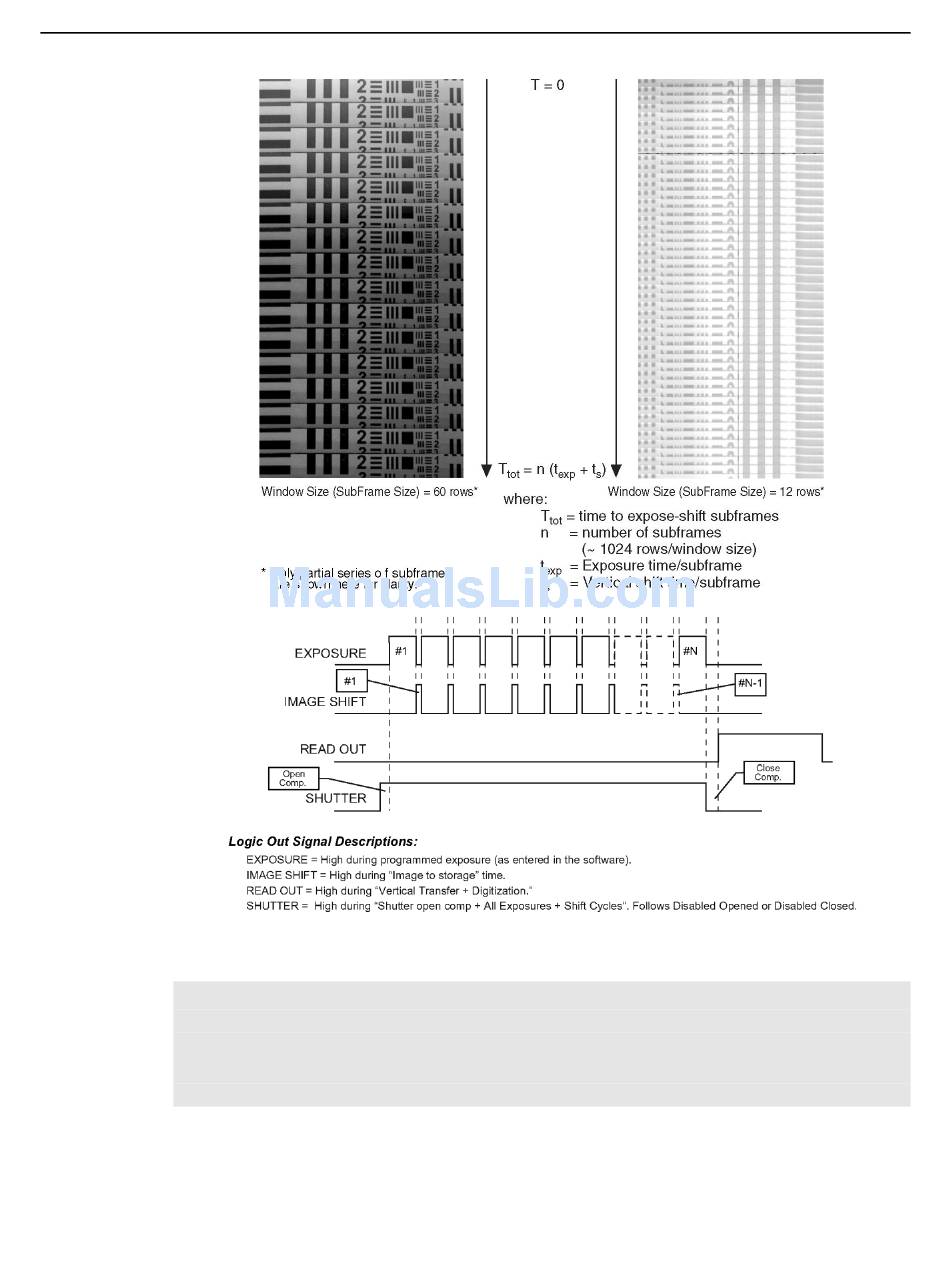

Figure 51. Kinetics Data acquired based on Masked Images shown in Figure 50.

Notes:
1. The timing diagram represents the exposure-readout sequence. Time resolution
between subframes is given by t
2. A reduced number of rows in the right image illustrate a way to achieve better time
resolution between subframes.
®
ProEM + System Manual
+ t .
exp s
Version 1.B
