36
3. After the installation finishes, reboot the computer.
4. Connect the ProEM+ system components to your computer and power them on.
5. Start LightField, activate it, and begin setting up your experiment.

Entering the Default Camera System Parameters

WinX

WinX Versions 2.6.10 and later
1. Make sure the ProEM+ (and spectrograph, if this is a spectroscopy system) is
2. Run the WinX application. The Camera Detection wizard will automatically run if
3. On the Welcome dialog (Figure 14), leave the check box unselected and click on
ProEM

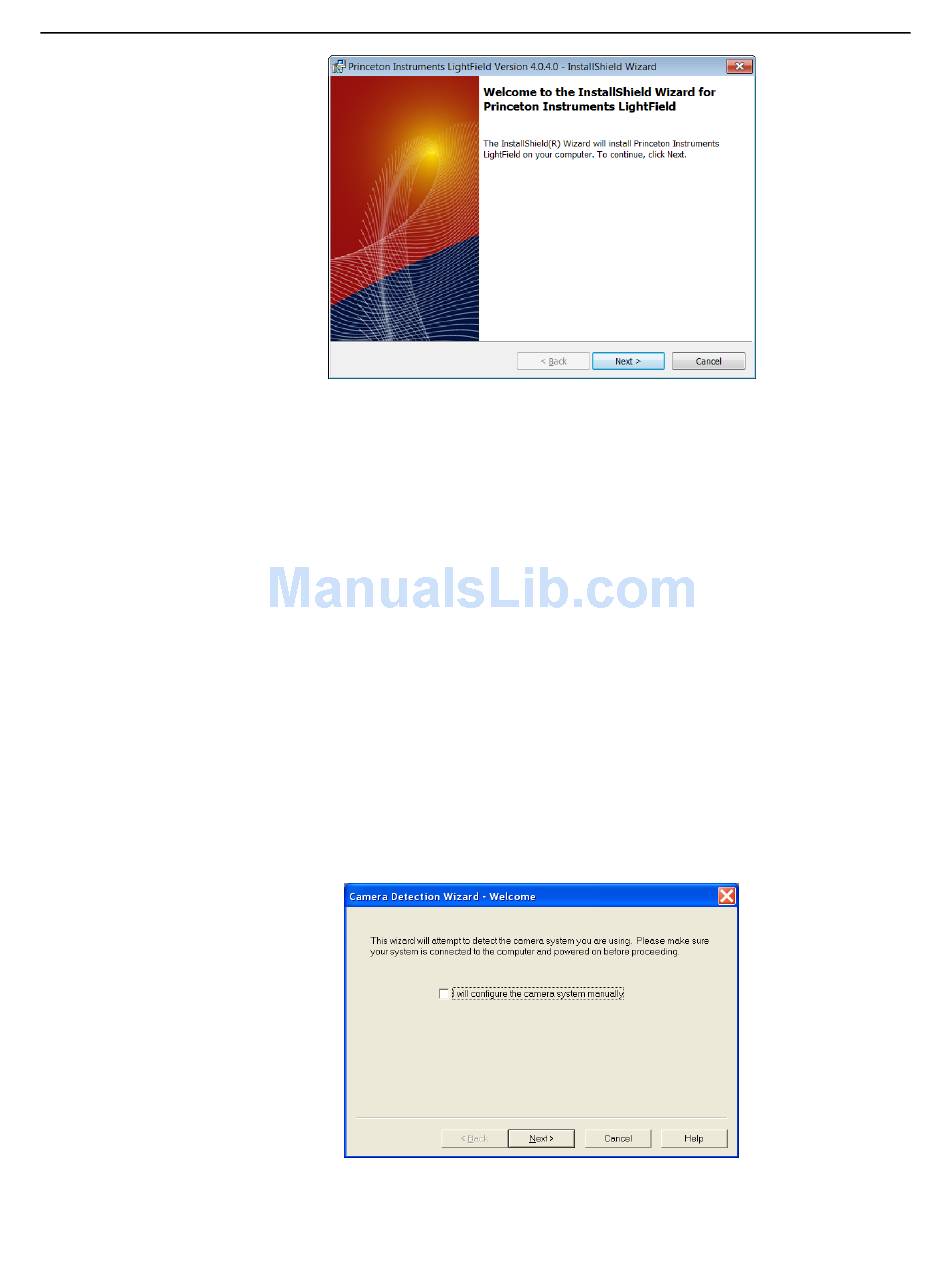

Figure 13. LightField Installation Wizard dialog

connected to the host computer and that the camera (and spectrograph) power
supply is turned on.
this is the first time you have installed a Princeton Instruments WinX application
(WinView/32, WinSpec/32, or WinXTest/32) and a supported camera. Otherwise, if
you installing a new camera type, click on the Launch Camera Detection
Wizard... button on the Controller/CCD tab to start the wizard.
Next.

Figure 14. Camera Detection Wizard - Welcome dialog

®
+ System Manual Version 1.B
