Setting the Parameters

Note: The following procedure is based on LightField. Basic familiarity with the

LightField software is assumed. If this is not the case, you may want to review the

software manual or have it available while performing this procedure.

1. After LightField opens, you should see an icon representing your camera in the

2. Drag the icon into the Experiment Devices area.

ProEM

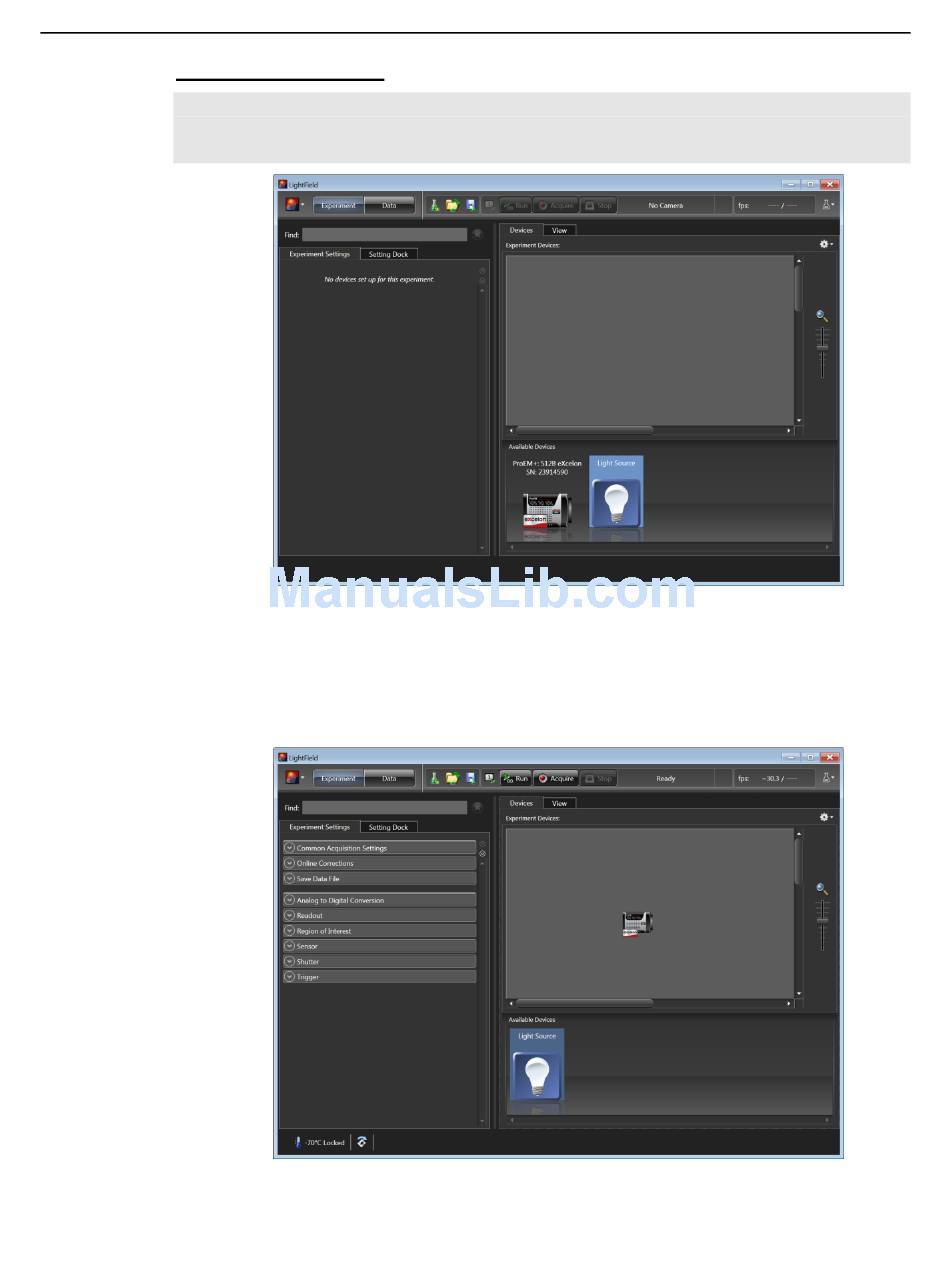

Figure 23. Available Devices Area

Available Devices area. In the figure above, the camera is a ProEM+:512B

eXcelon

+ System Manual

Version 1.B
