32
6. When you have finished with focusing and rotational alignment, secure the
7. If they have already been installed, loosen the adapter's two recessed locking
8. When the camera opening is centered within the sliding tube, you can adjust the
9. After you have completed the adjustment, tighten the recessed locking setscrews
ProEM
sliding tube in place with the spectrograph setscrews.
setscrews (use a 0.050 hex key). If they have not been installed, insert the
setscrews into the holes at the sides of the adapter and screw them in a couple of
turns.
camera up or down .4" (4.06 mm) by tightening or loosening the vertical
adjustment setscrew (use a 3/32" hex key).
in the adapter flange to lock the position.

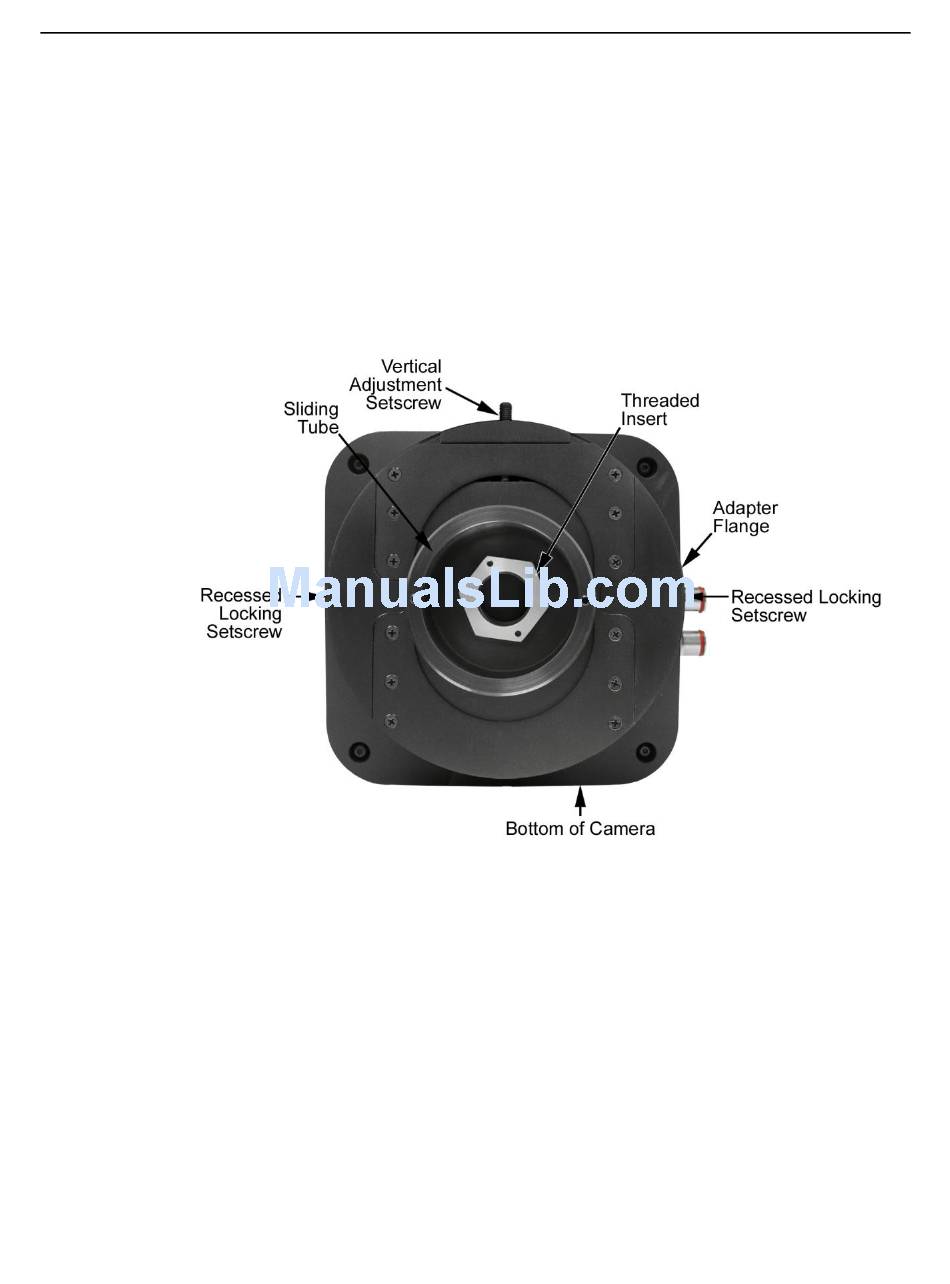

Figure 9. Adjustable C- to Spectroscopy-Mount Adapter

®
+ System Manual
Version 1.B
