56
5. Power ON the camera (i.e., switch the power supply ON).
6. Turn on the computer power.
7. Start the application software.
Setting the Parameters
1. After LightField opens, you should see icons representing your camera and the
2. Drag the icons into the Experiment Devices area.
ProEM

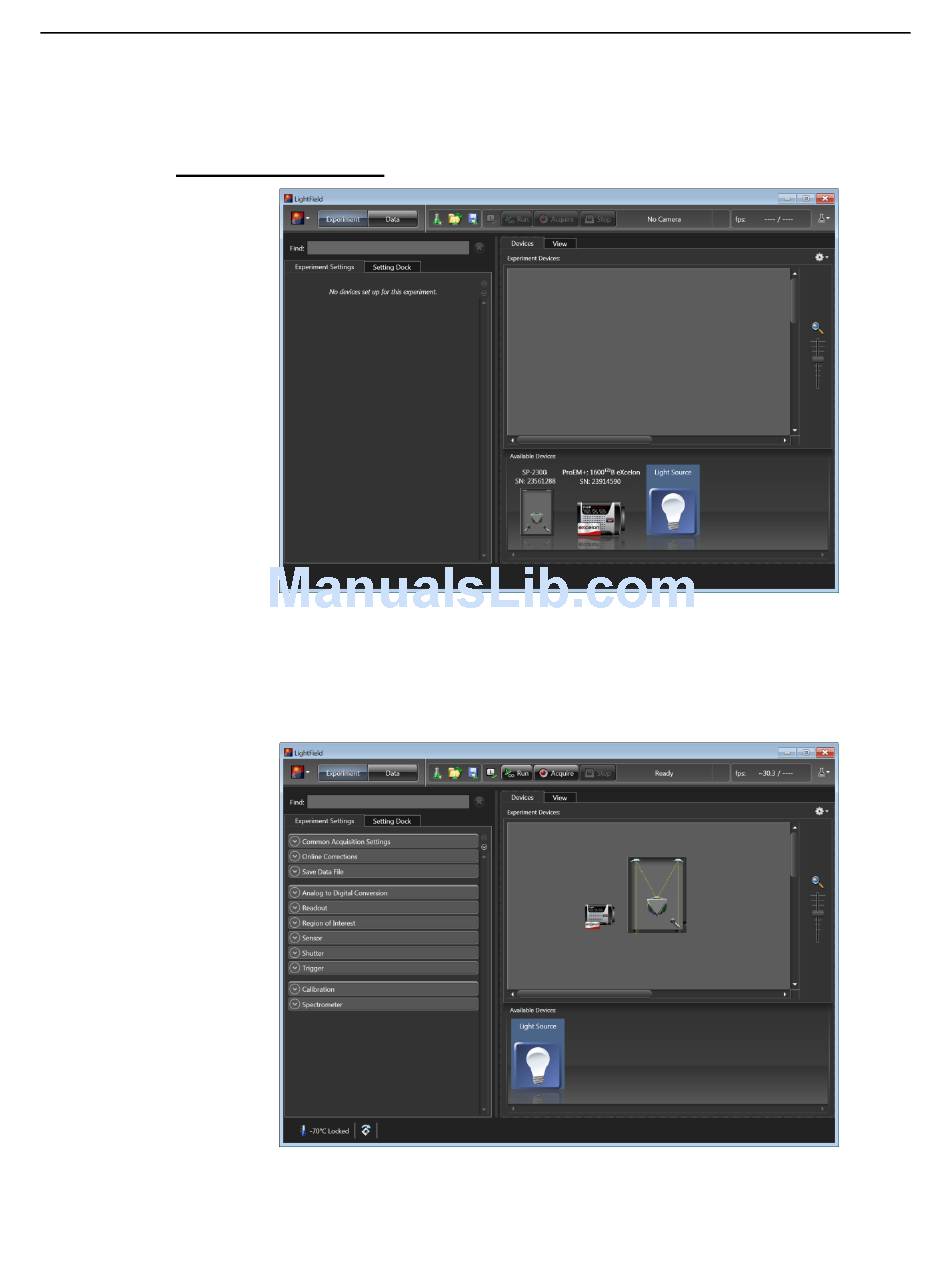

Figure 27. Available Devices Area

spectrograph in the Available Devices area. In the figure above, the camera is a
(2)
ProEM+:1600 B eXcelon

Figure 28. Experiment Devices Area

Note that the Experiment Settings stack on the left now displays several
expanders. Because this is a new experiment, the default settings for the camera
®
+ System Manual
®
and the spectrograph is an SP-2356.
Version 1.B
