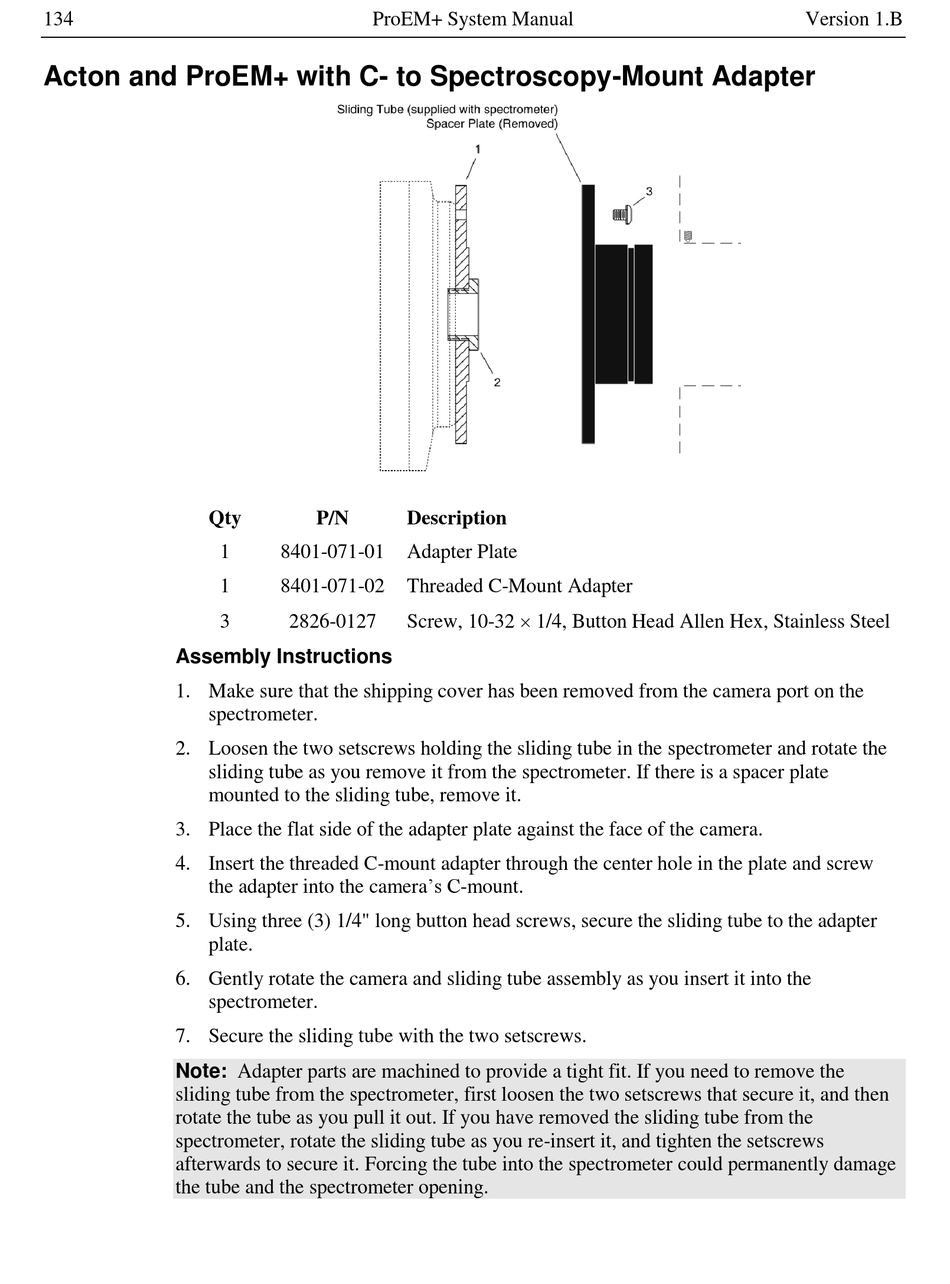

Acton and ProEM+ with C- to Spectroscopy-Mount Adapter

Qty
1
1
3
Assembly Instructions
1. Make sure that the shipping cover has been removed from the camera port on the
spectrometer.
2. Loosen the two setscrews holding the sliding tube in the spectrometer and rotate the
sliding tube as you remove it from the spectrometer. If there is a spacer plate
mounted to the sliding tube, remove it.
3. Place the flat side of the adapter plate against the face of the camera.
4. Insert the threaded C-mount adapter through the center hole in the plate and screw
the adapter into the camera's C-mount.
5. Using three (3) 1/4" long button head screws, secure the sliding tube to the adapter
plate.
6. Gently rotate the camera and sliding tube assembly as you insert it into the
spectrometer.
7. Secure the sliding tube with the two setscrews.
Note: Adapter parts are machined to provide a tight fit. If you need to remove the
sliding tube from the spectrometer, first loosen the two setscrews that secure it, and then
rotate the tube as you pull it out. If you have removed the sliding tube from the
spectrometer, rotate the sliding tube as you re-insert it, and tighten the setscrews
afterwards to secure it. Forcing the tube into the spectrometer could permanently damage
the tube and the spectrometer opening.
ProEM+ System Manual
P/N Description
8401-071-01 Adapter Plate
8401-071-02 Threaded C-Mount Adapter
Screw, 10-32  1/4, Button Head Allen Hex, Stainless Steel
2826-0127
