Controller/Camera tab (Setup|Hardware): These parameters should be set
automatically to the proper values for your system.

Controller type: This information is read from the camera.

Camera type: This information is read from the camera.

Shutter type: Custom (System dependent).

Readout mode: Available modes are read from the camera. Verify that
Full Frame is selected.

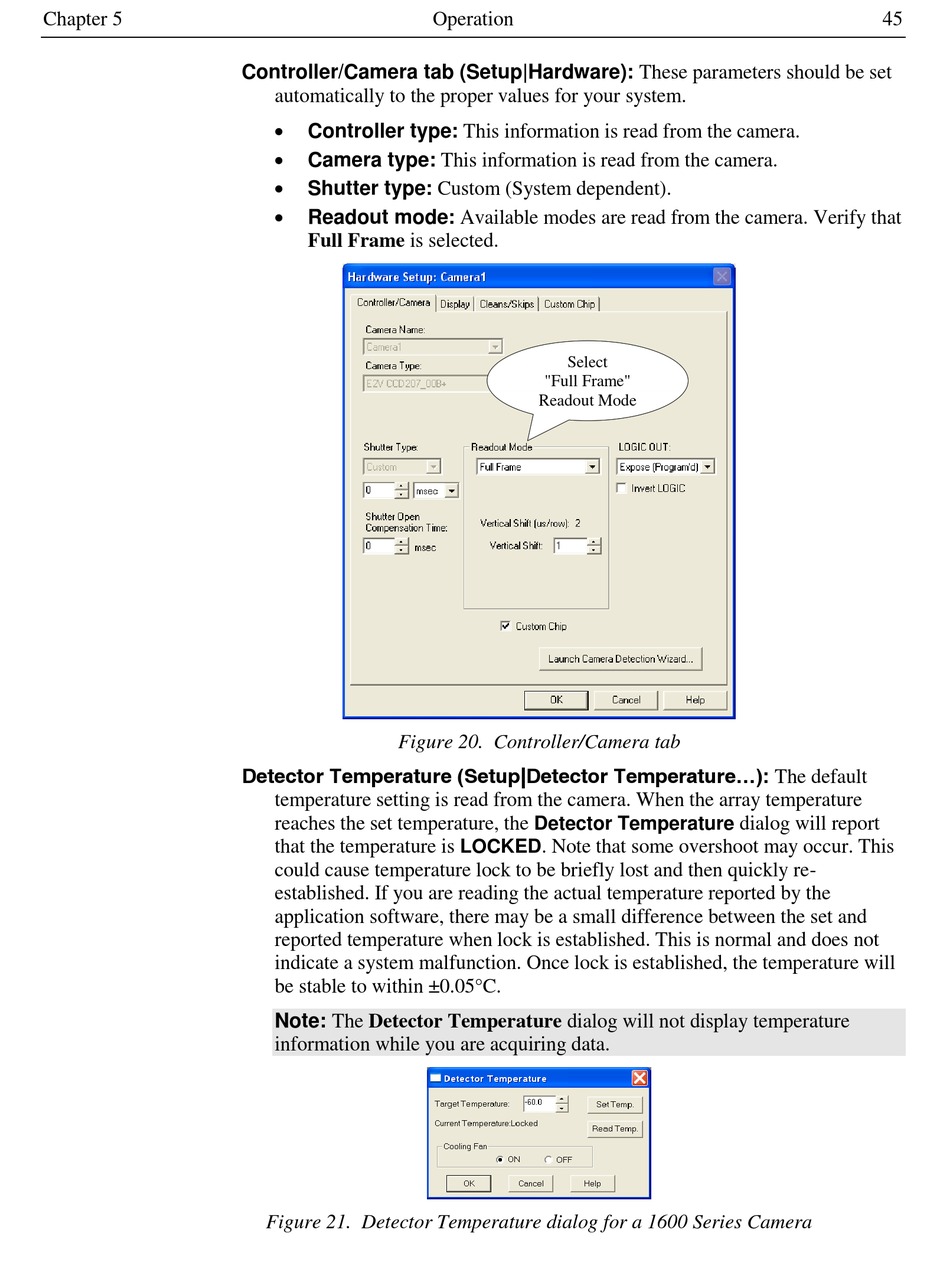

Figure 20. Controller/Camera tab

Detector Temperature (Setup|Detector Temperature...): The default
temperature setting is read from the camera. When the array temperature
reaches the set temperature, the Detector Temperature dialog will report
that the temperature is LOCKED . Note that some overshoot may occur. This
could cause temperature lock to be briefly lost and then quickly re-
established. If you are reading the actual temperature reported by the
application software, there may be a small difference between the set and
reported temperature when lock is established. This is normal and does not
indicate a system malfunction. Once lock is established, the temperature will
be stable to within ±0.05°C.
Note: The Detector Temperature dialog will not display temperature
information while you are acquiring data.

Figure 21. Detector Temperature dialog for a 1600 Series Camera
