Chapter 6 Advanced Topics 79

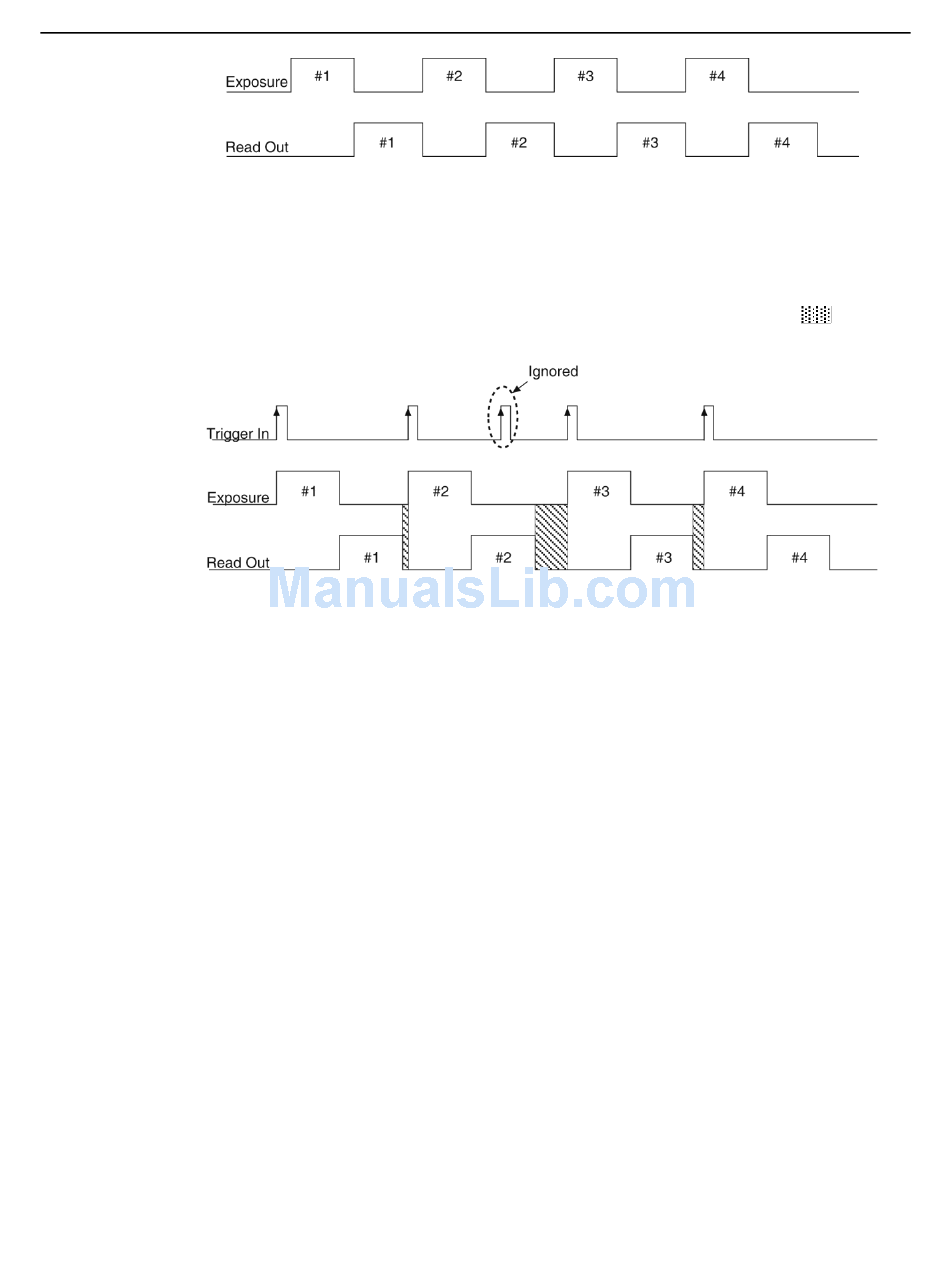

Figure 40. Free Run Timing Diagram

External Sync {Readout Per Trigger}

In this mode, each frame in a sequence requires a trigger. Each frame is exposed for the
length of time entered into the software and is then read out. If a trigger arrives during the
exposure-readout of the previous frame, it is ignored (see Figure 41). For a sequence of
one frame, bulb mode and trigger-first mode are the same. The shaded areas denote
the idle time between exposures.

Figure 41. External Sync Timing Diagram
