Coolant Circulator

ProEM+ cameras can be optionally cooled by circulating coolant to provide a low
vibration system for data acquisition. They are equipped with two ports with quick-
disconnect fittings for connection to an external circulator. Two 10 mm (3/8") ID, 3
meter (10 ft) coolant hoses with ProEM+-compatible fittings are provided with each
ProEM+ system.
The coolant circulator can be any commercially available circulator (provided that it is
capable of continuously pumping a 50:50 mixture of room temperature (23ºC) water and
ethylene glycol at 1 liter per minute) or the Princeton Instruments CoolCUBE
contact the factory for recommendations.

Cables

Hoses

Certificate of Performance

Each ProEM+ camera has a Certificate of Performance. This certificate states that the
camera system was assembled and tested according to approved Princeton Instruments
procedures. It documents the camera performance data as measured during the testing of
your ProEM+ and lists the Sales Order, Purchase Order, and Camera Serial numbers
(useful if you ever need to contact Princeton Instruments Customer Support).
®
ProEM + System Manual

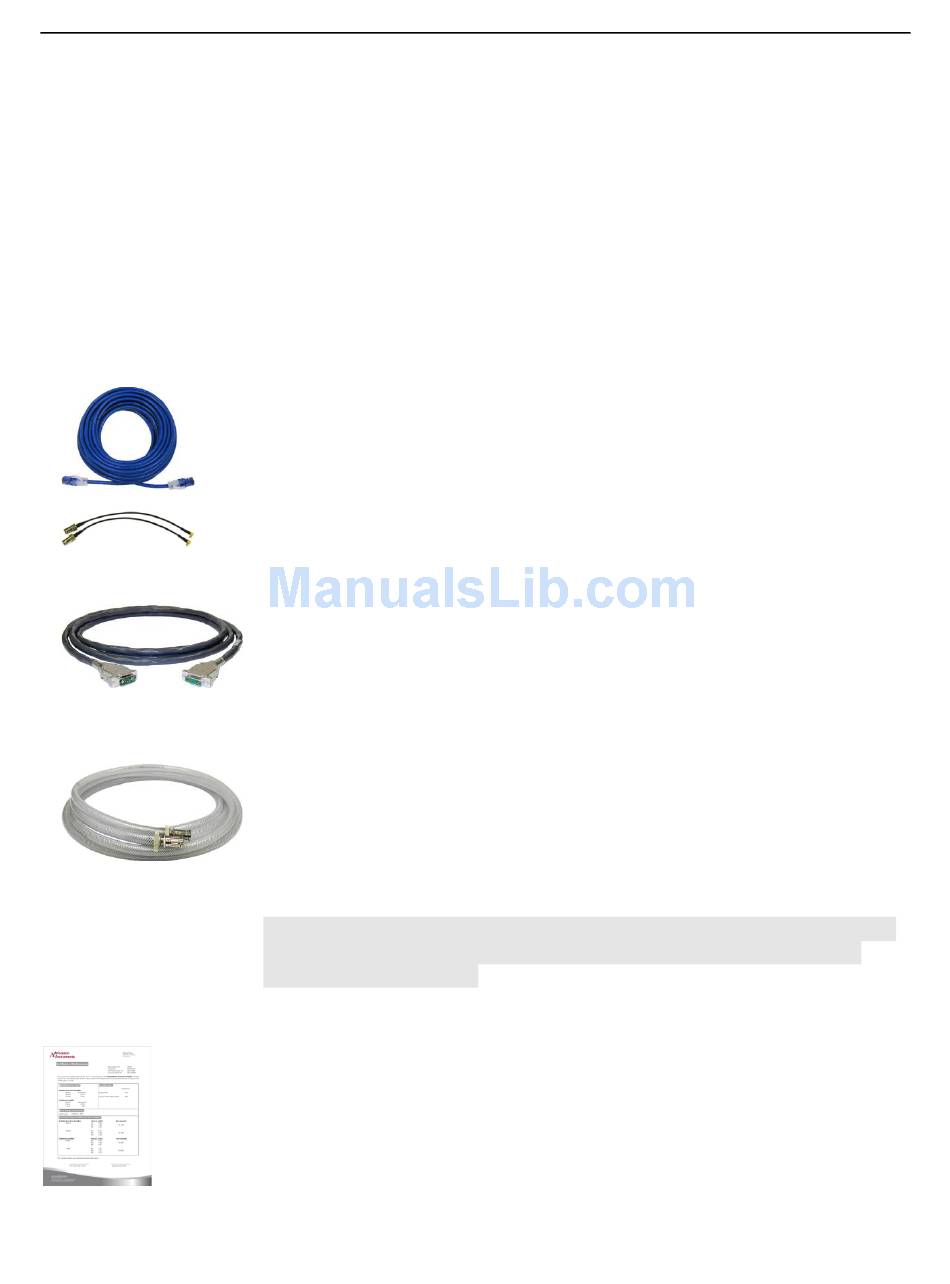

Ethernet Cable: This standard 5 meter (16.4') cable is a Cat 5e/6 Ethernet
cable (6050-0621) for interconnecting the camera and the host computer. The
distance between the camera and the computer can be over 50 meters. Please
contact the factory for longer cables.
MCX to BNC Adapter Cables: Two MCX to BNC adapter cables
(6050-0540) are provided with the ProEM+ system. These connect to the EXT
SYNC and the LOGIC OUT connectors on the rear of the ProEM+.
Power Cable: The power cable (6050-0596) interconnects the ProEM+
camera and its power supply. This cable is approximately is 3 m long
(approximately 10 ft).
Coolant Hoses: Two 10 mm (3/8") ID, 3 meter (10') hoses are supplied with
every ProEM+ system. Quick-disconnects that mate to the ProEM+'s coolant
ports have been installed on one end of each hose. Refer to your coolant
circulator's specifications regarding circulator-compatible hose fittings. If a
Princeton Instruments CoolCUBE
hoses are supplied with appropriate connectors on both ends.
Note: Part numbers for the hose, ProEM+ fitting, and CoolCUBE
McMaster # MCM 5238K748, McMaster # MCM 5478K811, and CPC #
NS6D17006, respectively.
