Appendix C

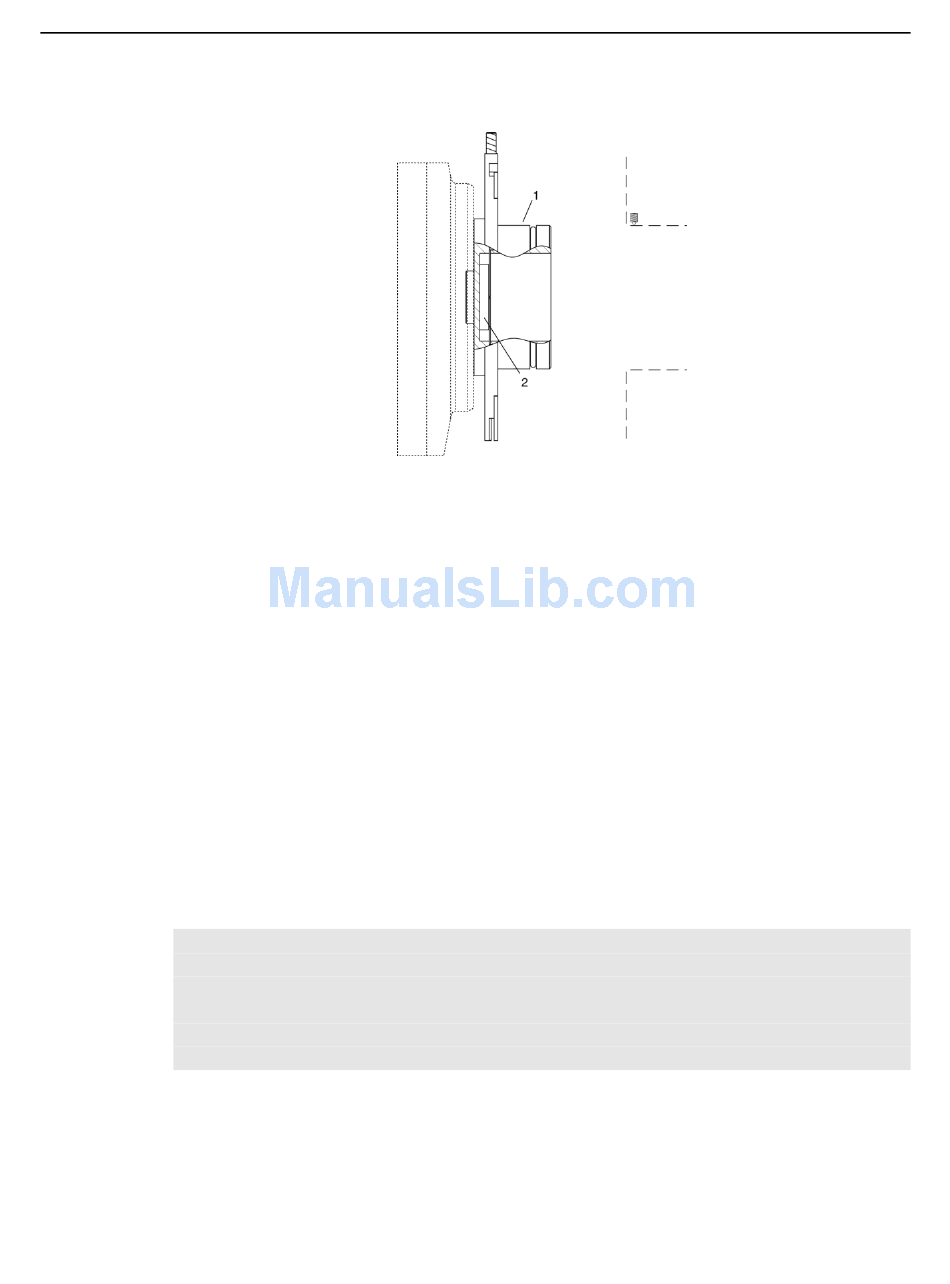

Acton and ProEM+ with Adjustable C- to Spectroscopy-Mount
Adapter (7050-0104 for SP2350/SP-2550)
Qty
1
1
Assembly Instructions
1. Make sure that the shipping cover has been removed from the camera port on the
spectrometer.
2. Place the flat side of the adapter plate against the face of the camera.
3. Insert the threaded insert through the center hole in the plate and screw the adapter
into the camera's C-mount.
4. Gently rotate the camera and sliding tube assembly as you insert it into the
spectrometer.
5. Secure the sliding tube with the two spectrometer setscrews (one coming down from
the top and the other from the side).
Note: Adapter parts are machined to provide a tight fit. If you need to remove the
sliding tube from the spectrometer, first loosen the two setscrews that secure it, and then
rotate the tube as you pull it out. If you have removed the sliding tube from the
spectrometer, rotate the sliding tube as you re-insert it, and tighten the setscrews
afterwards to secure it. Forcing the tube into the spectrometer could permanently damage
the tube and the spectrometer opening.
Mounting the ProEM+ to a Spectrograph
P/N Description
Adapter Plate
2518-1284 1.25"-32 Threaded Insert
