46
Setting the Spectrograph Parameters
1. Define Spectrograph dialog (Spectrograph|Define): Click on
2. Move Spectrograph dialog: Choose the grating to be move, and then set it to
ProEM
Experiment Setup|Main tab (Acquisition|Experiment Setup...):

Exposure Time: 50 ms

Accumulations & Number of Images: 1
Experiment Setup|ROI tab (Acquisition|Experiment Setup...): Use this
function to define the region of interest (ROI).

Spectroscopy Mode: Selected

Clicking on Full loads the full size of the chip into the edit boxes.
Experiment Setup|Timing tab (Acquisition|Experiment Setup...):

Timing Mode: Free Run

Shutter Control: Disabled Opened.

Safe Mode vs. Fast Mode: Fast Mode

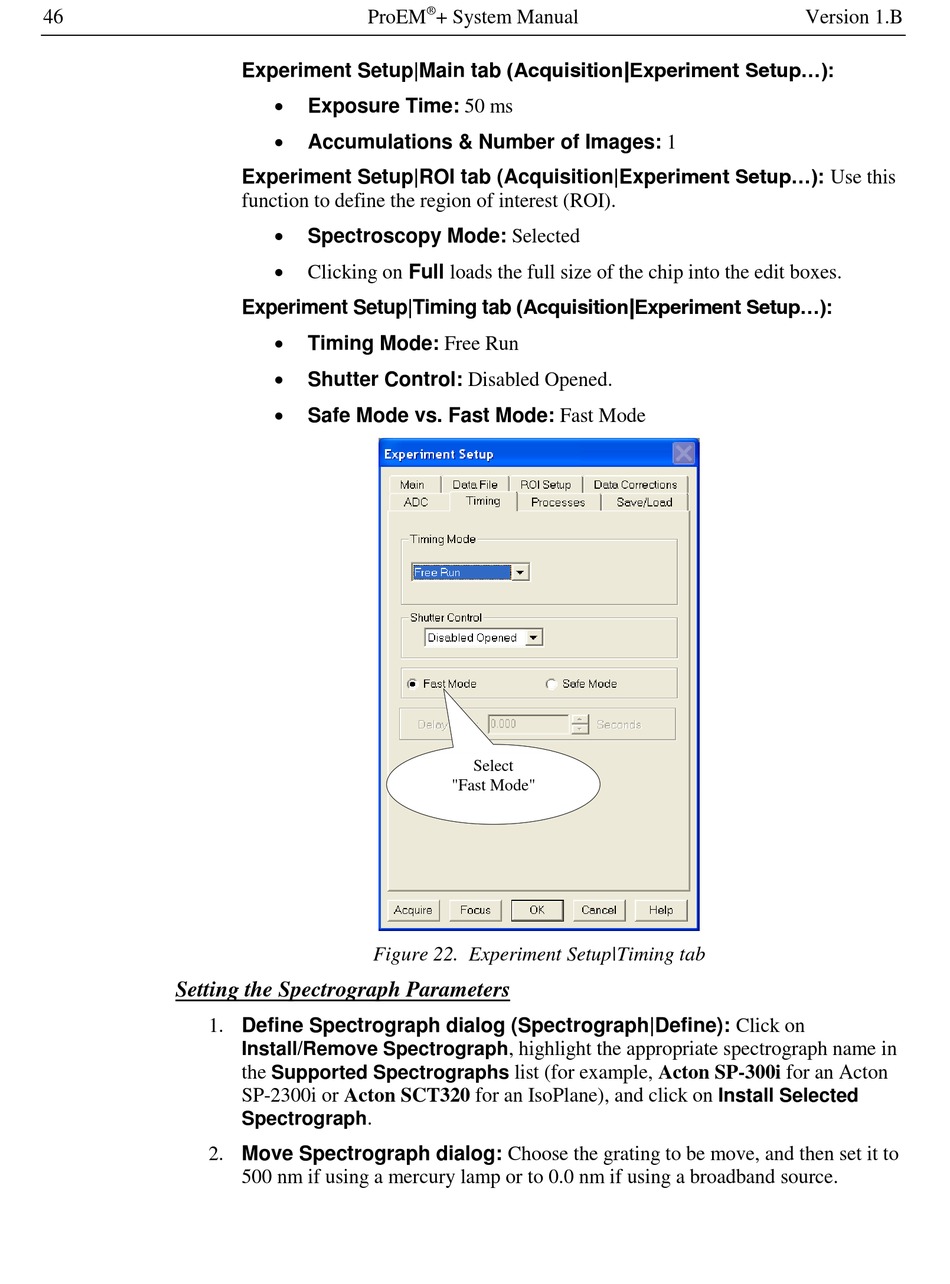

Figure 22. Experiment Setup|Timing tab

Install/Remove Spectrograph , highlight the appropriate spectrograph name in
the Supported Spectrographs list (for example, Acton SP-300i for an Acton
SP-2300i or Acton SCT320 for an IsoPlane), and click on Install Selected
Spectrograph .
500 nm if using a mercury lamp or to 0.0 nm if using a broadband source.
®
+ System Manual
Select
"Fast Mode"
Version 1.B
