1. To set test pattern, push in or down on joystick
to place checkmark in TEST SIGNAL checkbox.
2. TEST SIGNAL box will highlight.
3. Twist joystick to change the highlighted TEST
SIGNAL box to the desired setting.
4. Move joystick left, right, up or push in to select.

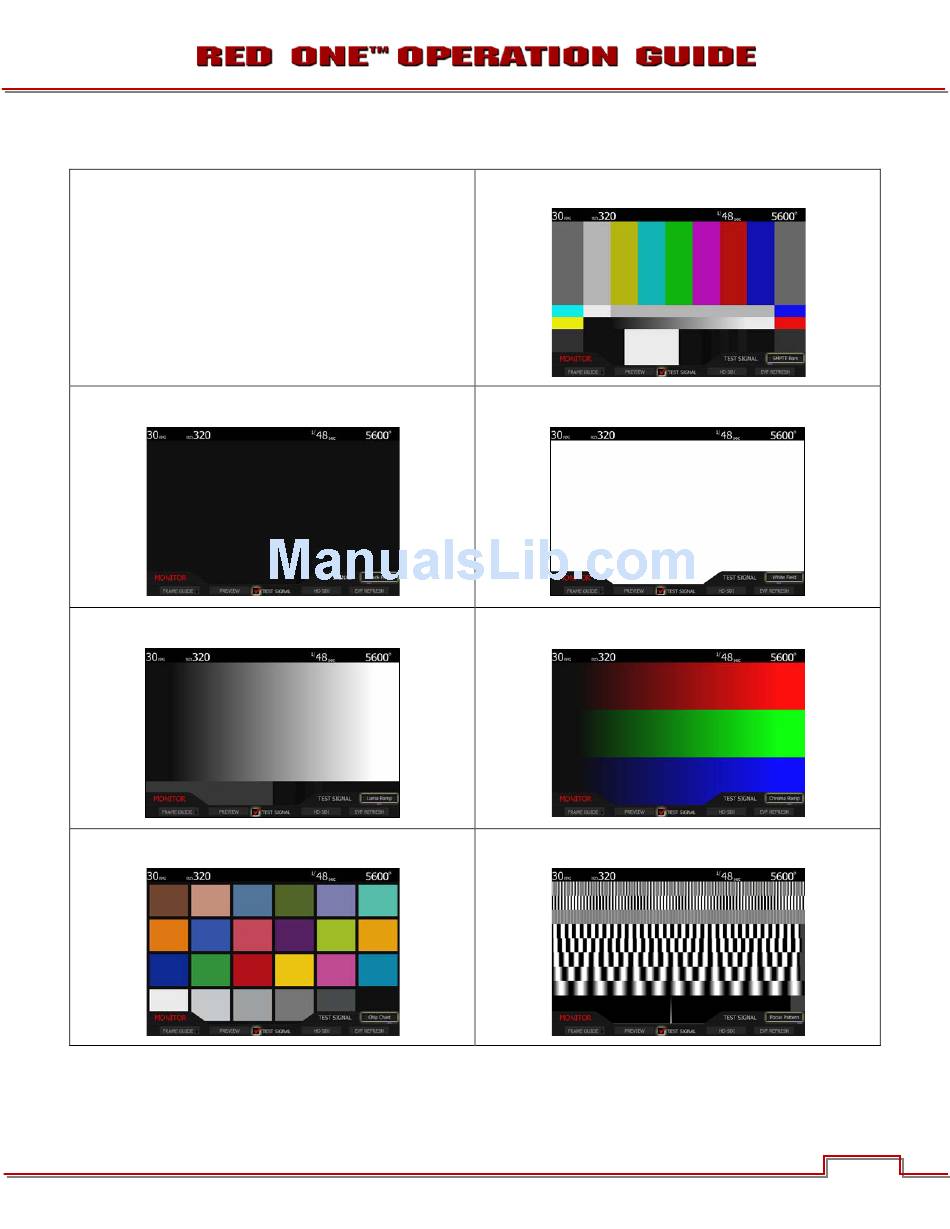

BLACK FIELD
LUMA RAMP
CHIP CHART
NOTE: The RED ONE™ test signals are not recordable, they are provided to help align external vid-
eo monitors connected via the HD-SDI or HDMI outputs.
Build 20 v20.1.6
OCTOBER 19, 2009 ©2009 RED.COM INC.
SMPTE BARS
WHITE FIELD
CHROMA RAMP
FOCUS PATTERN
