The upper panel in the display provides information about the levels in the selected clip. Exposure and
White Balance may be altered, R G and B digital values may be sampled from the image, and a Zebra ex-
posure indicator can be selected.
NOTE: If an ANAMORPHIC record mode has been selected (2K ANA, 3K ANA, 4K ANA) any video
captured from the camera HD-SDI outputs has been stretched 2:1 to illustrate the final 2.40:1 as-
pect ratio of the final image projection. The actual recorded image is 1.2:1 aspect, and the .R3D
files decoded by RED Alert! will reflect that aspect ratio.

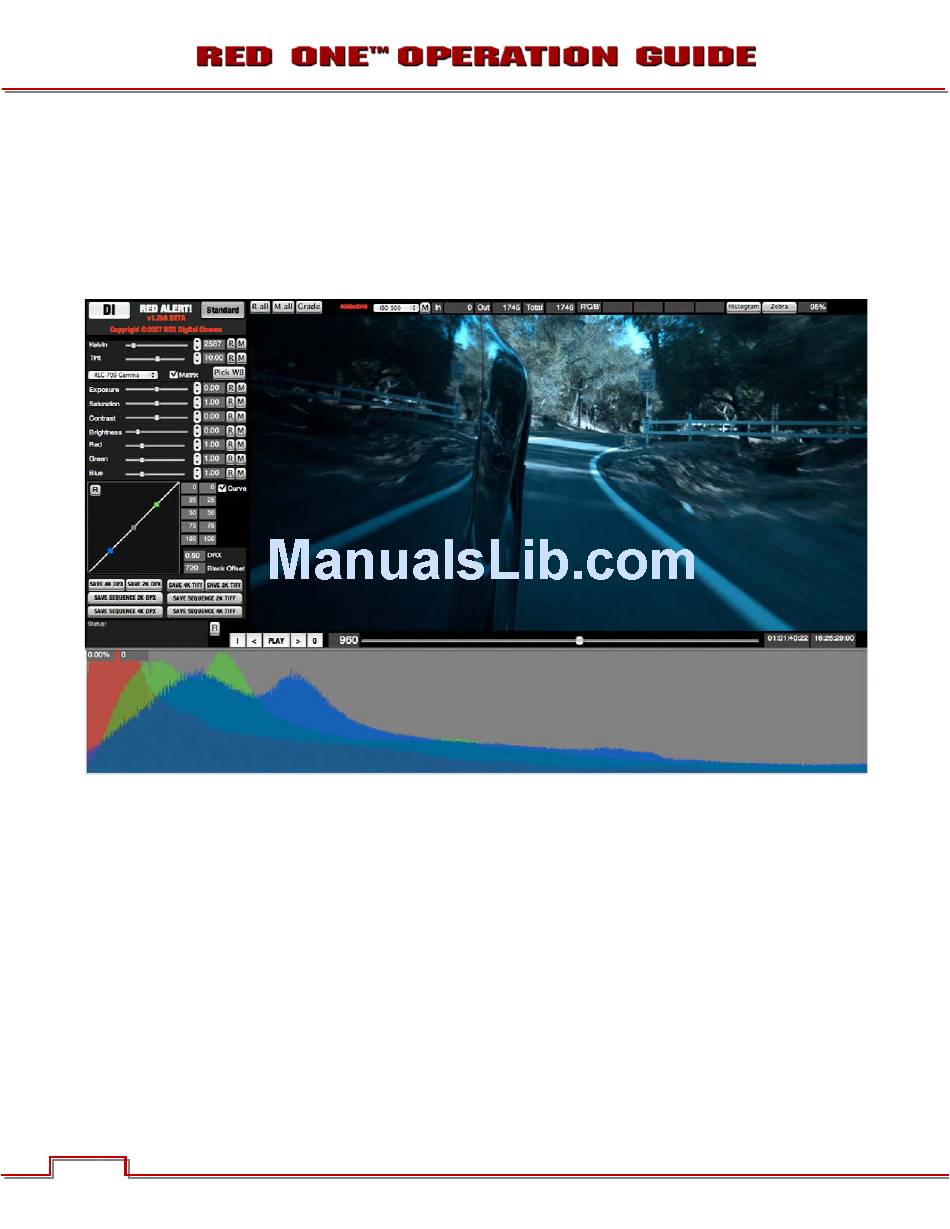

A composite RGB histogram is available, which appears below the main display area. This provides a
view of the exposure distribution for the Red, Green and Blue channels.
A one light color correction panel permits adjustment of Color Temperature, Saturation, Contrast, Bright-
ness, Red Gain, Green Gain and Blue Gain. These parameters match those available in the RED ONE™
camera.
NOTE: The range and resolution of these color correction parameters is greater than those availa-
ble in the camera UI. This reflects the need for greater range and precision for the controls in post-
production than for monitoring images during image capture.
