Timecode - RED ONE Operation Manual

NOTE: Frame rates of "30" and "60" should be read as "29.97" and "59.94" respectively.
NOTE: An individual project should only use one Time Base, as it defines the frame rate used for
timecode and editing. To vary the capture frame rate above or below the base frame rate defined
by the project's time base, enable VARISPEED in the SHUTTER menu.
NOTE: When in 2K, 3K or 4K ANA mode, RED™ EVF, RED™ LCD and PVW HD-SDI and HDMI out-
puts will be stretched 2:1 horizontally to provide a 2.40:1 aspect ratio image display.

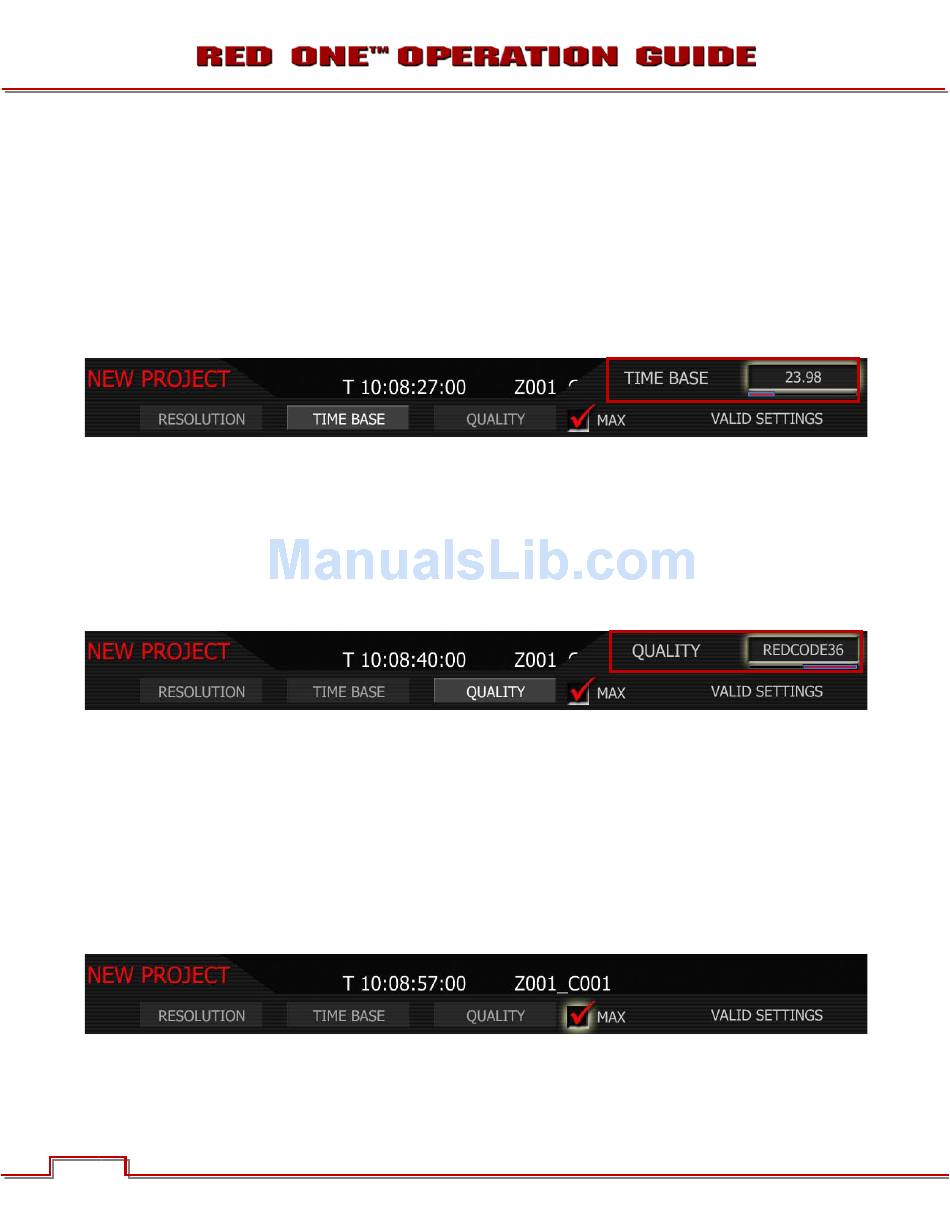

TIME BASE
Time base allows the user to set the project time base - the playback & editing frame rate.
1. To set time base, select TIME BASE and press in or down on joystick.
2. Twist joystick to change the highlighted TIME BASE box to select between 23.98 and 29.97.
3. Move Joystick right or up to select and exit.
QUALITY
Quality allows the user to set the project quality at either REDCODE™ 28 or REDCODE™ 36.
NOTE: REDCODE™ 36 will limit maximum frame rate and resolutions available using CF cards.
1. To set quality, select QUALITY and press in or down on joystick.
2. Twist joystick to change the highlighted QUALITY box to either REDCODE™ 28 or REDCODE™ 36
(default is REDCODE™ 36).
3. Move Joystick right or up to select and exit.
MAX
Leave checked for maximum image quality recording. If shooting at 23.98 fps and 4K HD resolution, you
may wish to uncheck the MAX mode box before recording. This lowers the absolute image quality, but
permits real time .R3D decoding and scaling to 1920 x 1080 progressive RGB when using commonly
available CPU based post production applications.

TIMECODE

Select to change displayed timecode track, force Jam sync or reset camera clock.
