If the PADLOCK appears on its own as shown above, the camera is Genlocked. This means the shut-
-
ter start time is referenced to the external Genlock signal, so multiple cameras recording the same
scene will be capturing their individual images at the same moment in time if they are all Genlocked to
a common reference signal.

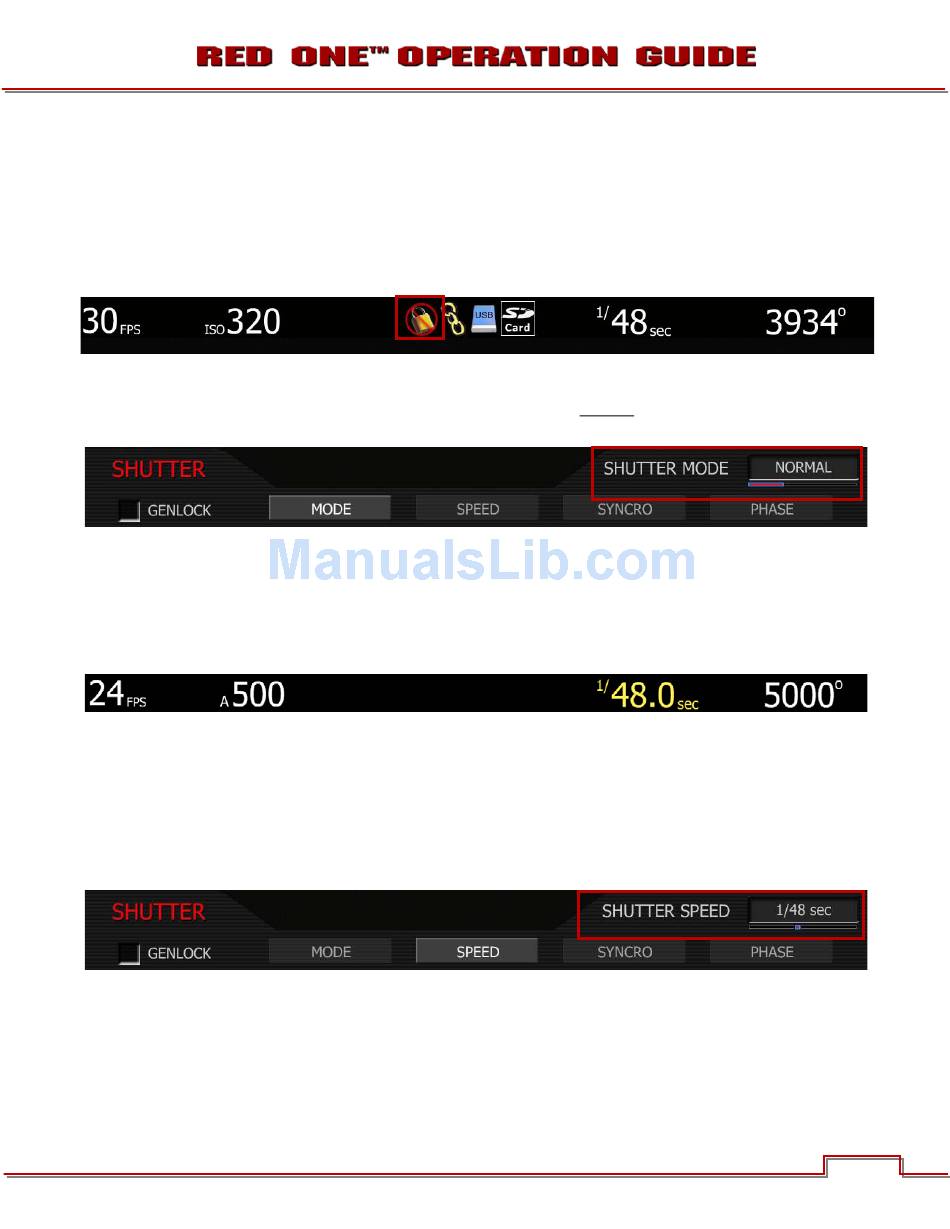

If the PADLOCK has a red circle and diagonal bar through it as shown below, this indicates the sensor
-
is not Genlocked. Check that the Genlock signal generator frame rate is equal to the project TIME
BASE and / or the cabling and connections are correct.
MODE
Enables one of three following shutter modes: (Default selection is Normal) For additional information, see
SPEED section.
Normal: Shutter Speed is defined exclusively by the Shutter Speed setting.
-
Syncro: Shutter Speed is defined by Shutter Speed, but modified by Syncro setting.
-
Relative: Shutter Speed is defined by Shutter Speed, but modified by the capture fps.
-
To adjust: Select MODE and twist joystick to change the highlighted SHUTTER MODE box to the desired
setting.
NOTE: If operating in Relative or Syncro modes, the shutter speed is reported in yellow text.
NOTE: If the operator requests a shutter speed (angle) that is outside the capability of the camera
in that mode, the actual shutter speed (angle) used will be reported in red text.

SPEED

When operating in Normal mode, the Shutter Speed value used by the camera is fixed, i.e. it is indepen-
dent of the image capture rate. This is opposite from a mechanically shutter camera.
Decreasing Shutter Speed will allow more light to fall on the sensor, increasing exposure and motion blur
on any objects moving within the frame. As Shutter Speed increases less light falls on the sensor, de-
creasing exposure and motion blur on objects moving within the frame.
Exposure times presets include: 1/24, 1/25, 1/30, 1/32, 1/33, 1/40, 1/48, 1/50, 1/60, 1/96, 1/100, 1/120,
1/125, 1/192, 1/200, 1/250, 1/384, 1/400, 1/500, 1/696, 1/800, 1/1,000, 1/1,200, 1/2,000
