1. To select frame guide enable color, push in or down on joystick to place checkmark in ENABLE
checkbox.
2. FRAME COLOR box will highlight to allow you to choose the desired color.
3. Twist joystick to change the highlighted FRAME COLOR box to the desired setting.
4. Move joystick left, right or up to select and exit.
PROTECT
Protect displays film projection safe areas with 1.85 or 2.40 aspect ratios and television safe areas with
16:9, 14:9 or 4:3 aspect ratios, or User Areas.

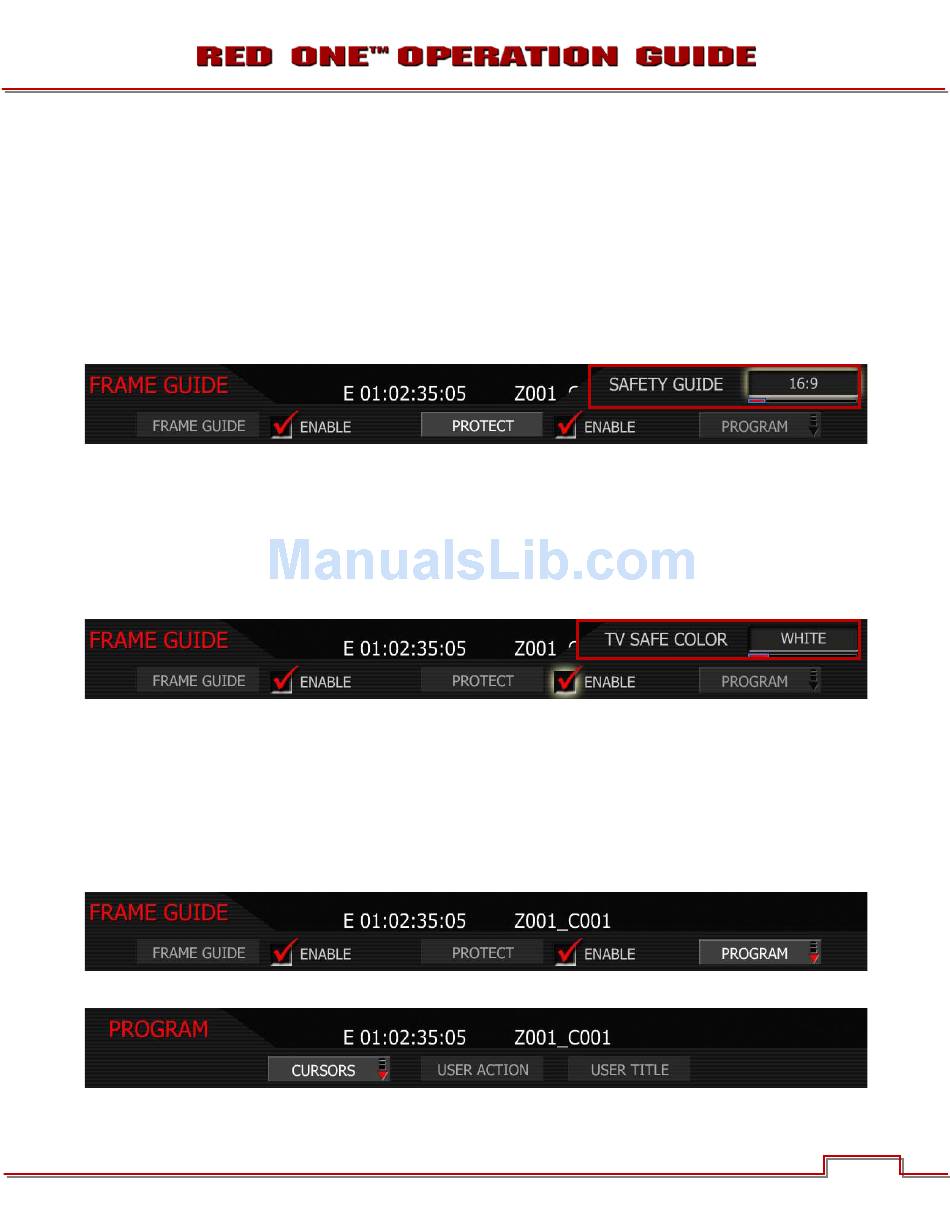

1. To change frame guide aspect ratio, select PROTECT.
2. SAFETY GUIDE box will highlight to allow you to choose from 16:9 to USER AREAS.
3. Twist joystick to change the highlighted SAFETY GUIDE box to the desired setting.
4. Move joystick left, right or up to select and exit.
PROTECT ENABLE: allows you to set the safe area color to White, Black, Blue, Yellow or Red for maxi-
mum color contrast with the scene you are shooting.
1. To select safe area color, push in or down on joystick to place checkmark in ENABLE checkbox.
2. TV SAFE COLOR box will highlight to allow you to choose the desired color.
3. Twist joystick to change the highlighted TV SAFE COLOR box to the desired setting.
4. Move joystick left, right or up to select and exit.
PROGRAM
Program allows the use to program the specific PROTECT areas to be used.
Select PROGRAM to access the sub menu.
