HEADPHONE AUDIO OUTPUT

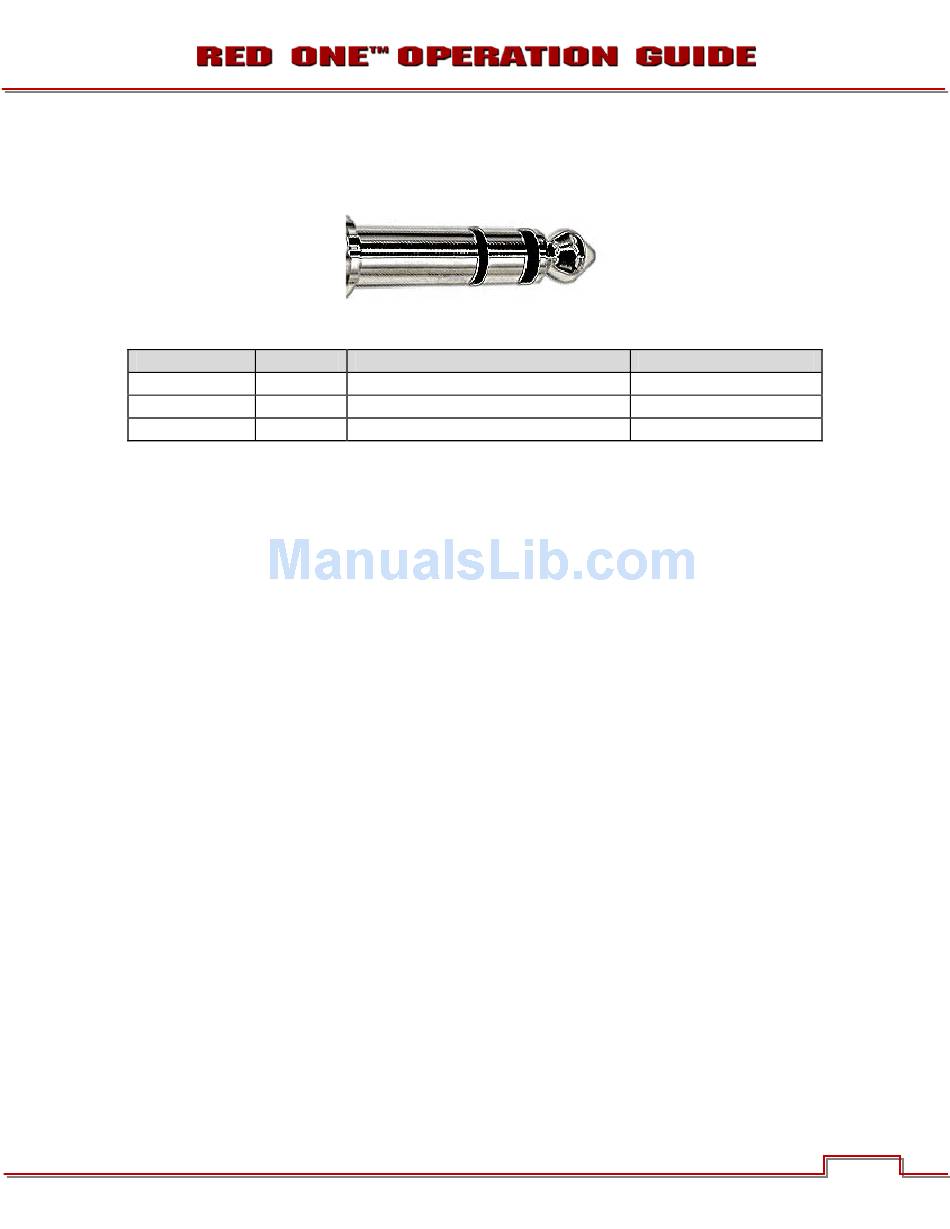

A 3.5mm stereo phone jack provides two channels of adjustable level audio to headphones.
Pin:
A (TIP)
B (RING)
C (SLEEVE)
The camera's four audio channels may be monitored in pairs: either 1L - 2R or 3L - 4 R or a quad mix of
1+3L – 2+4R based on the MIX parameter, and the Volume adjusted as follows.
Volume: (master volume) Adjusts headphone volume equally for Left and Right outputs.
Range is -18dB to 0dB in 1dB steps. Default is -9dB.
Volume Left: Trims volume for Left output. E.g. Volume –6dB + Volume Left +1dB = -5dB
Range is -12dB to + 6dB in 1dB steps. Default is 0dB.
Volume Right: Trims volume for Right output. E.g. Volume –6dB + Volume Right -1dB = -7dB
Range is -12dB to + 6dB in 1dB steps. Default is 0dB.
NOTE: The above notes apply to cameras configured with Rev B audio hardware. Cameras shipped
prior to Sept 15 2008 (and not yet upgraded to Rev B) were supplied with Rev A audio hardware,
with the following operational restrictions.
For maximum output signal quality, only use high impedance headphones.
-

USB-2 MASTER

This port permits the camera to operate as the Slave camera in a Master / Slave camera pair. To establish
control, plug the square end of a USB-2 cable into the lower USB port of the RED ONE™ camera to act
as a Slave, and the rectangular end of a USB-2 cable into the upper USB port of the RED ONE™ camera
to act as the Master. Then power cycle both cameras. On boot up the two cameras will automatically es-
tablish Master / Slave mode.
Once connected using the USB cable, User Interface commands and remote triggers received by the
Master camera are transmitted to the Slave camera.
Build 20 v20.1.6
OCTOBER 19, 2009
C
Headphone Output Connector
Signal Description
LEFT Left channel audio
RIGHT Right channel audio
GND Camera ground
©2009 RED.COM INC.
A
B
Direction
Out
Out
--
